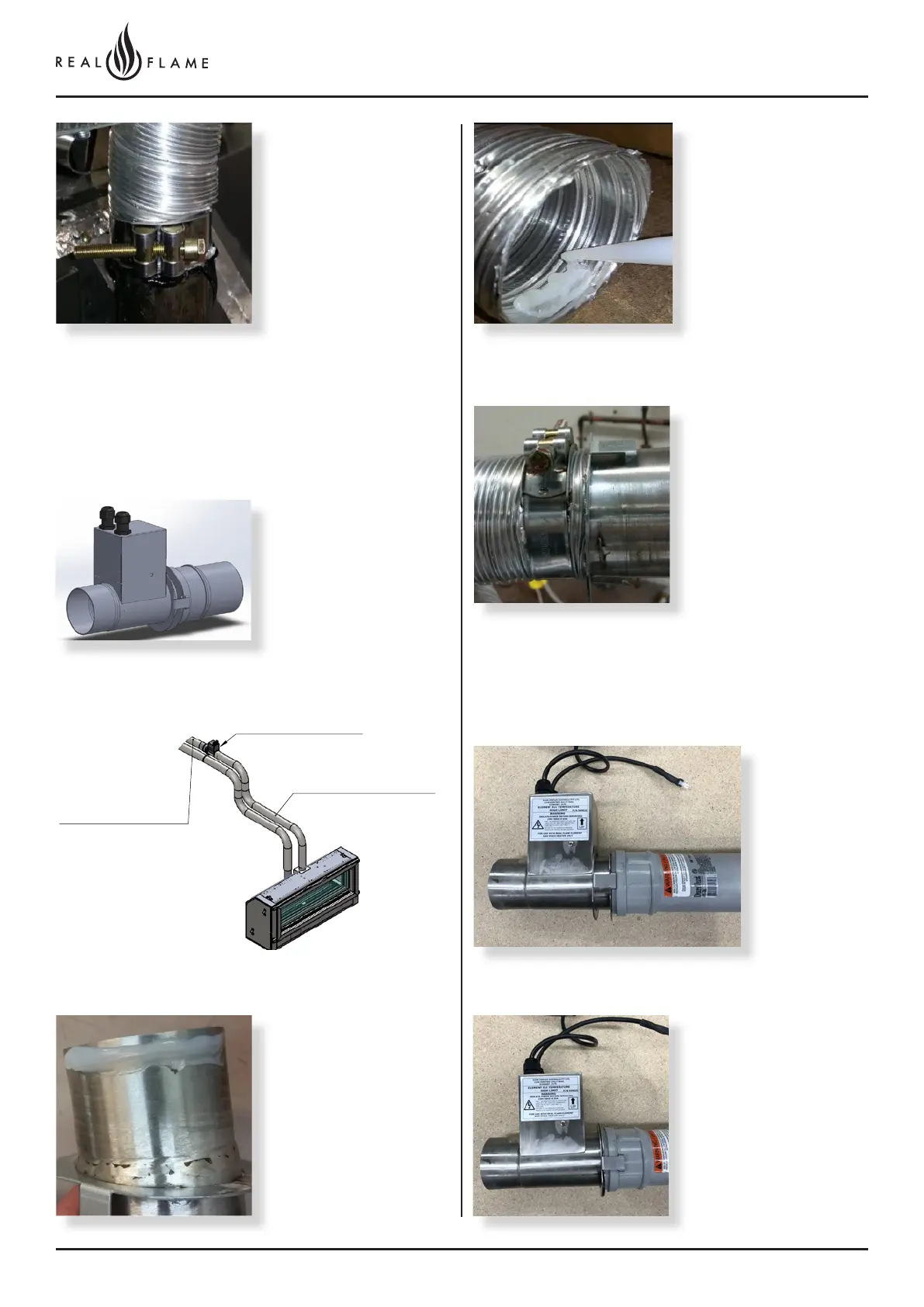

Element 900 - Aluminum to Poly Pro Flue Connection

88
Page
Apply sealant to flue inner
and connector.
Aluminum to Poly Pro flue connection
A
ALUMINIUM TO POLY PRO JOINER
DETAIL A
SCALE 1 : 25
POLY PRO FLUE PIPE 80MM DIA
MAX RUN 8.5M WITH 5 BENDS
NOTE - DRAINAGE FALL TOWARDS
FAN MODULE AT FLUE END
FLUE PIPE
75mm ALUMINIUM FLEXIBLE FLUE
RUN 5m WITH UPTO 4 BENDS
(SUPPLIED IN 5m LENGTH -
NOTE FULL 5m LENGTH MUST BE USED)
