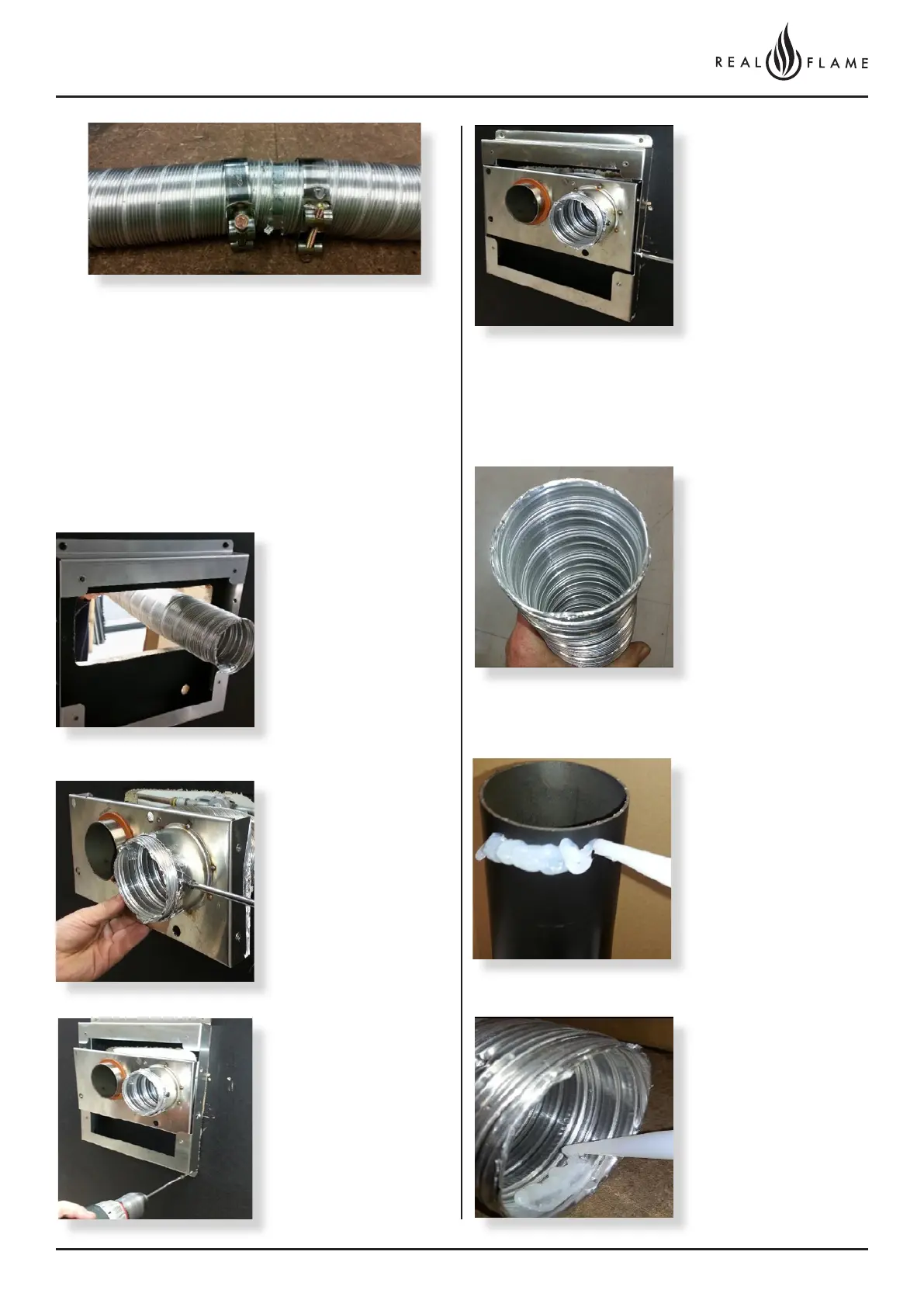

Element 900 - Intake Connection to Wall Mounted Fan Terminal

87
Page
OUTLET CONNECTION FROM HEATER
Locate wall mounting
bracket into position and
affix to wall.
Ensure ends are burr free
and round, test fit flue will
slide over connection.
Feed air intake flue pipe
through location spigot
and fit retaining screw.
Push connection plate into
approximate position.
Apply an 8mm silicon
bead fully around the
inside of the flue end
(heater connection end)
Fit flue clamp over flue
(loosely).
Cut air intake flue to length
(Approximately 70mm
through wall exit).
Connection plate will sit
against wall.
Assemble spigot
connection plate assembly
to wall mounting bracket.
(4 screws)
Slide each flue halfway onto connection
joiner.
Tighten clamp fully.
Wipe excess silicon, visually check connection to ensure
connection is fully sealed.
Intake connection to wall mounted fan terminal
Note: The full 5m of flexi
flue must be used.
Fully extend the 5m
aluminum flexi flue.
NOTE- FULL LENGTH
MUST BE USED.
Ensure ends are burr free
and round, test fit flue will
slide over connection.
Apply an 8mm thick silicon
bead fully around heater
connection approx. 10mm
from the top.
