97
Page
Failure to fit insulation on the exhaust flue may result in
condensation failures with the appliance.
Connect power lead to
fan module. Ensure lead is
clipped to support where
required.
Do not use connection to
support lead.

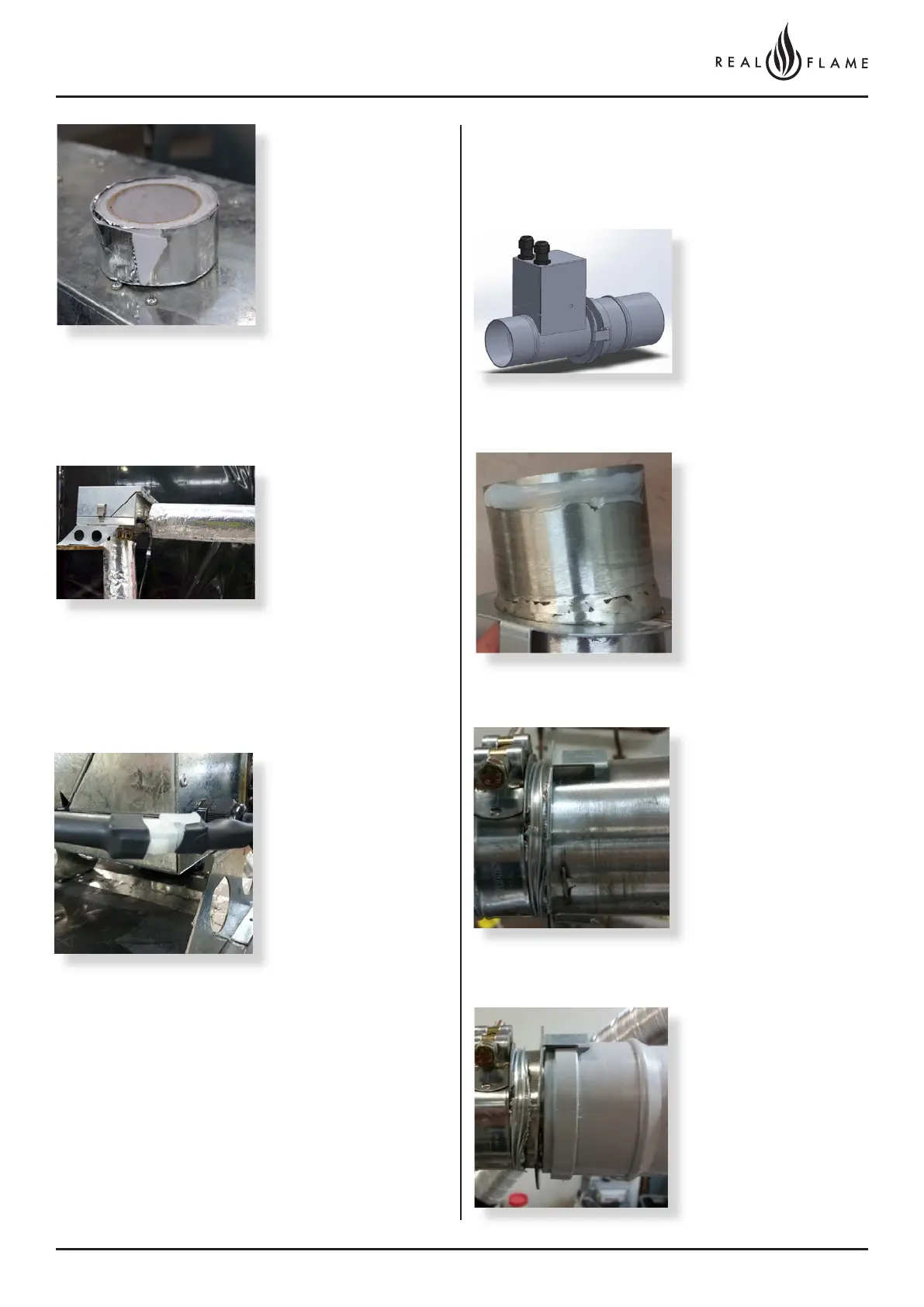

Flue Exhaust Connections - Aluminum to Poly
Pro flue connection
Ensure ends are burr free
and round, test fit flue will
fit over connection.
Apply sealant to flue inner
and connector.
Fit flue clamp over flue
(loosely).
Slide flue onto connection
spigot fully.
Tighten clamp fully.
Wipe excess silicon,
visually check connection
to ensure connection is
fully sealed.
Apply soapy water
to ring in Poly Pro flue
and dampen surface of
connector.
Push connector fully into
Poly pro end connection.
Push both clips over to lock
into place.
Joins can be taped
together using aluminum
foil self adhesive tape.
Insulation may be fitted
prior and after the inline
powerflue fan.
Insulation to be run for the first 3m from the appliance. For
flue runs shorter than 3m, discard extra insulation.
