5m of flexi flue on the exhaust side MUST be used before
prior to converting to polypropylene. Failure to do this will
result in appliance shutdown.

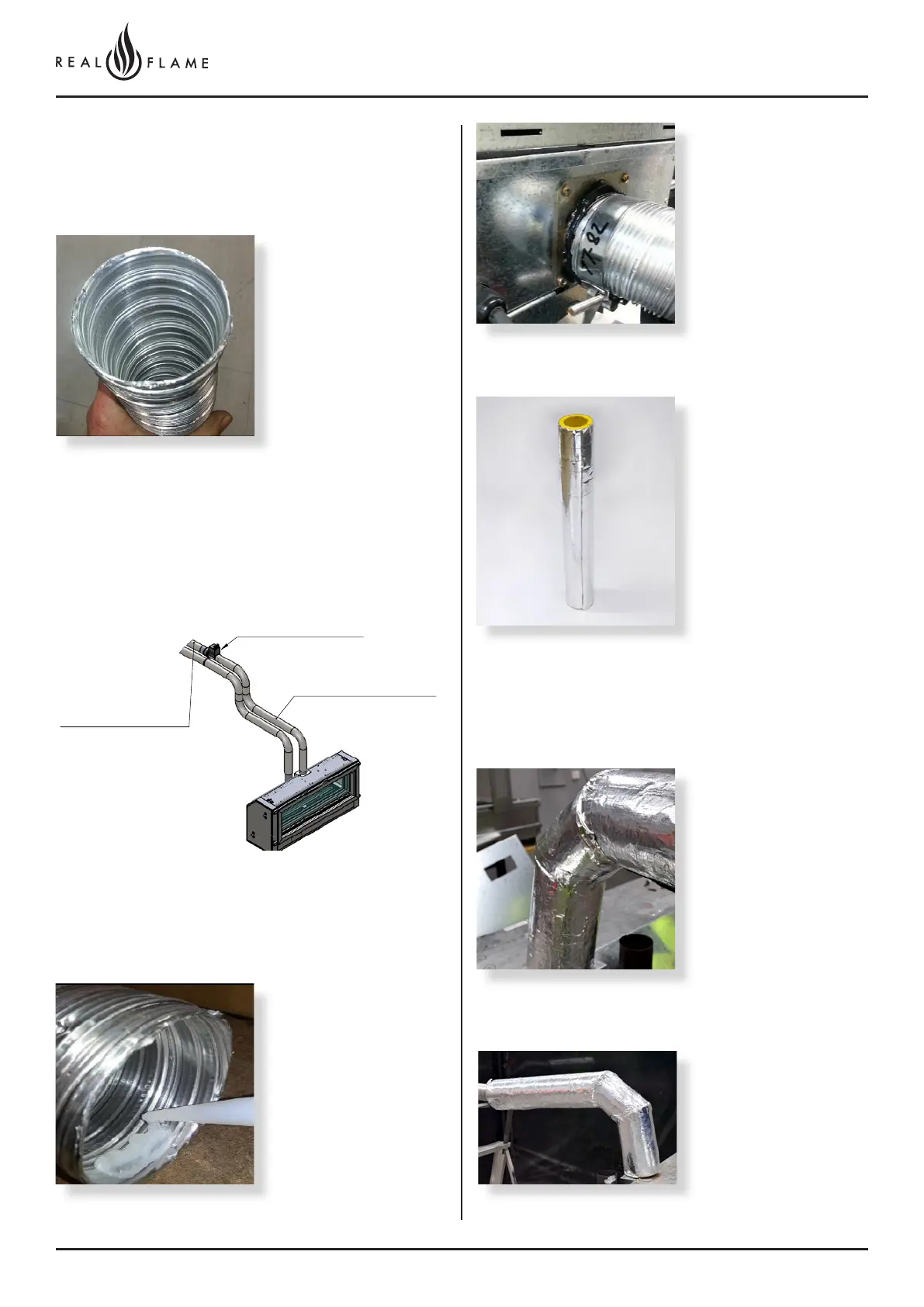

Flue Exhaust Connections - Fit hot exhaust
flue pipe from outlet termination to fan outlet
connection
Cut flue to length to suit
connection.
Ensure ends are burr free
and round, test fit flue will
fit over connection.
ALUMINIUM TO POLY PRO JOINER
POLY PRO FLUE PIPE 80MM DIA
MAX RUN 8.5M WITH 5 BENDS
NOTE - DRAINAGE FALL TOWARDS
FAN MODULE AT FLUE END
FLUE PIPE
75mm ALUMINIUM FLEXIBLE FLUE
RUN 5m WITH UPTO 4 BENDS
(SUPPLIED IN 5m LENGTH -
NOTE FULL 5m LENGTH MUST BE USED)
real flame pty. ltd.
1340 Ferntree Gully Rd, Scoresby Victoria 3179
Phone (03) 8706 2000 Fax (03) 87062001
www.realflame.com.au ABN 78 006 311 155
Angle +/-0.5deg
Machine finsh 3.2
No Dec. Places 0-1000mm +/-0.5
No Dec. Places 1000mm over +/-1.0
3 Dec. Places +/-0.025
2 Dec. Places +/-0.100
1 Dec. Places +/-0.500
UNLESS OTHERWISE SPECIFIED - ALL DIMENSIONS IN MILLIMETERS
This drawing and the information contained herein is the sole property of real flame pty ltd.
It is to be treated as confidential, it is to be returned upon request and is not to be copied or comunicated to any other
person without the written consent of real flame pty ltd.
Designed
By
Drawn
By
Drawing Practice AS1100
Material
Date
Assembly
Checked
By
Drawing No
Revision
Description
DO NOT
SCALE
Deburr and break All Sharp Corners
1 / 1
16/5/17
D.F.
1.0MM M/STEEL
Finish
Treatment
TBA
01
Apply an 8mm thick silicon
bead fully around heater
connection approx. 10mm
from the top.
Apply an 8mm silicon
bead fully around the
inside of the flue end
(heater connection end)
Fit flue clamp over flue
(loosely).
Slide flue onto connection
spigot fully.
Tighten clamp fully.
Wipe excess silicon,
visually check connection
to ensure connection is
fully sealed.
Insulation must start as close to the gas space heater as
possible
(Only exhaust flue is to be insulated)
Insulation to be fully closed
and sealed along length.
Bends where practical
should be insulated, by
cutting the insulation into
segments and taping
together.
Fit flue exhaust insulation
For all Element 900
installations using inline fan
configurations, the first 3m
(or up to 3m) of exhaust
flue must be insulated with
25mm foil faces glasswool
pipe insulation, as supplied
by Glen Dimplex Australia.
To Next Page
