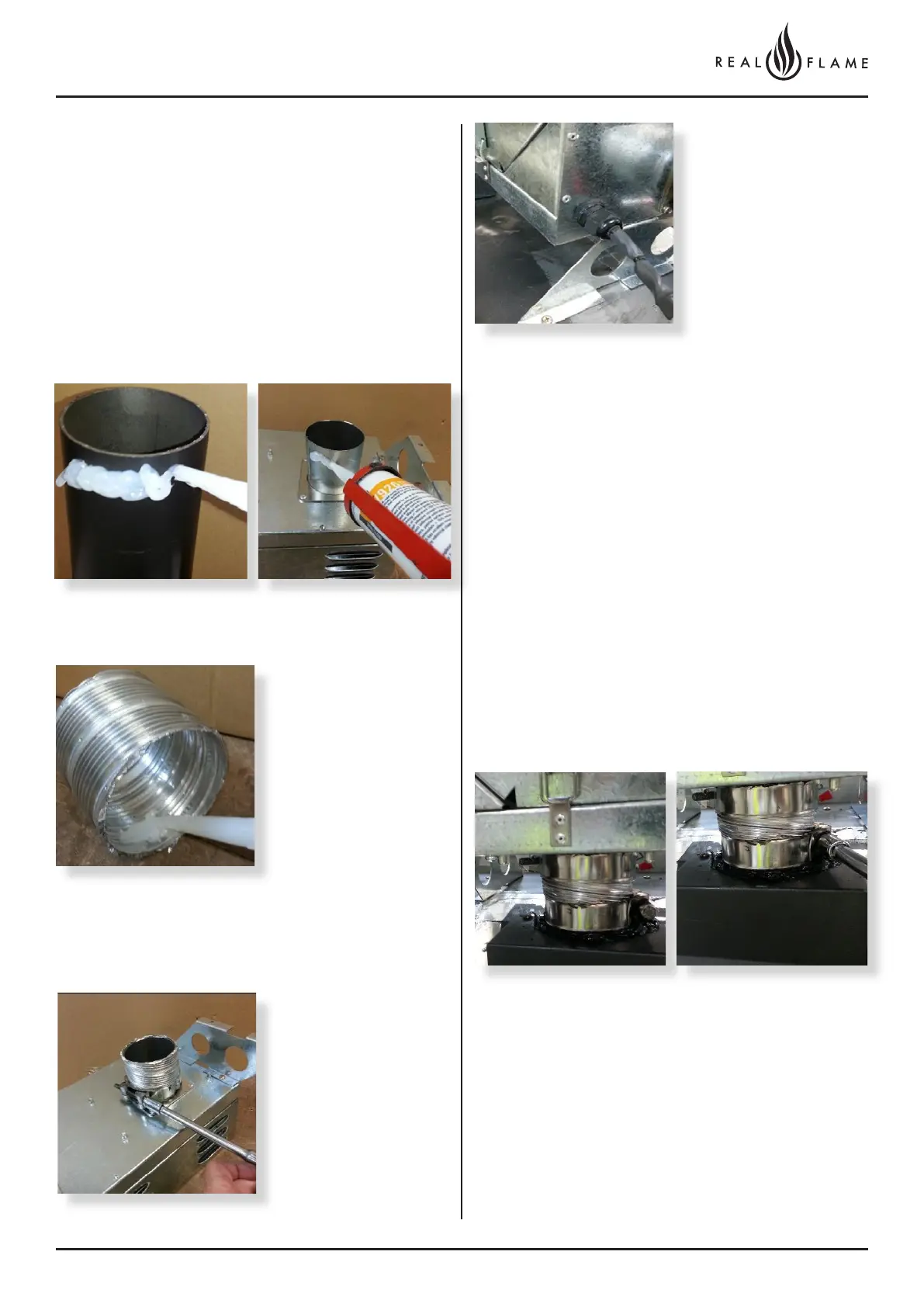

Recommended Silicon – Non-acetic, neutral cure
150degc or higher temperature rated.
Bostik RTV 926 or similar.
Apply an 8mm thick silicon bead fully around heater
connection approx. 10mm from the top.
Apply an 8mm thick silicon bead fully around the lower
fan connection spigot approx. 10mm from
the end.
Turn fan assembly upside
down and slide 65mm flue
section fully onto spigot.
Fit flue clamp and tighten
clamp fully.
Wipe excess silicon,
visually check connection
to ensure connection is
fully sealed.
(Note 90° left connection is
not available and must be done
using the 90° right connection
fan location and placing a
bend in the flue to head in the
LH direction.
Fit 2nd flue clamp loosely
onto the 65mm section of
flue.
Lift fan assembly into
appliance and locate onto
flue connection. Insert fully.
Locate fan in the required
direction. Screw fan
assembly down onto
the appliance. (Screws
prefitted into holes are
located on the appliance
for direct out back
connection and 90° to
right connection.)
Locate 2nd clamp onto lower connection and tighten
clamp fully.
Wipe excess silicon, visually check connection to ensure
connection is fully sealed.
Where fan sits higher, ensure fan assembly is supported
on a frame. Where timber framing is used clearances to
flue and fan box must be maintained.
