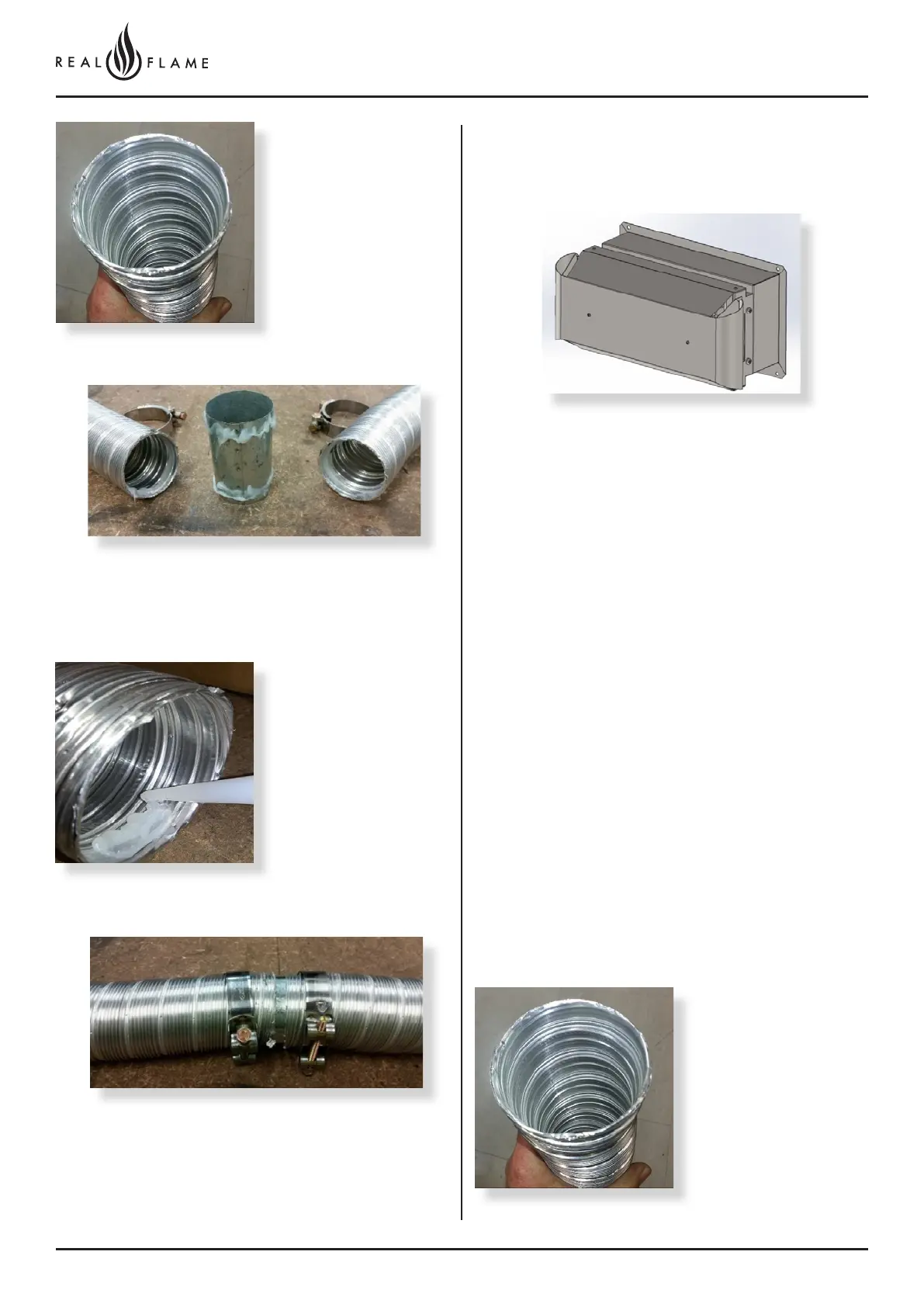

Air intake pipe - Intake connection to wall
mounted fan terminal
Flue Exhaust Connections - Connection to
fan module at appliance
Check flue piece for
correct shape and fitment
onto appliance spigot.
FOR DIRECT MOUNT
CUT 65MM – Otherwise
cut the required length.
Ensure ends are burr free
and round, test fit flue will
slide over connection.
Ensure ends are burr free
and round, test fit flue
will slide over connection
joiner.
Locate terminal on wall and pre-drill mounting holes
where required.
Cut flue inlet tube to length (Flue must extend a minimum
of 50mm past the exit face of wall.) It is recommended
that the tubes are cut slightly longer and pushed back into
wall upon fixing of wall terminal. Allow flue movement
between terminal and last flue hanging clip.
Ensure ends are burr free and round, test fit flue will slide
inside both the hot exhaust connection and air intake
connection.
Feed air intake flue into connection, ensure inserted
50mm. Fit retaining screw from below.
Push terminal into approximate position and affix onto
wall.
Apply an 8mm thick silicon bead fully around both ends
of connector approx. 10mm from the ends.
Apply an 8mm silicon
bead fully around the
inside of the flue end
Fit flue clamp over flue
(loosely).
Slide each flue halfway onto connection
joiner.
Tighten clamp fully.
Wipe excess silicon, visually check connection to ensure
connection is fully sealed.
