RW973 MkⅡ User Manual
24

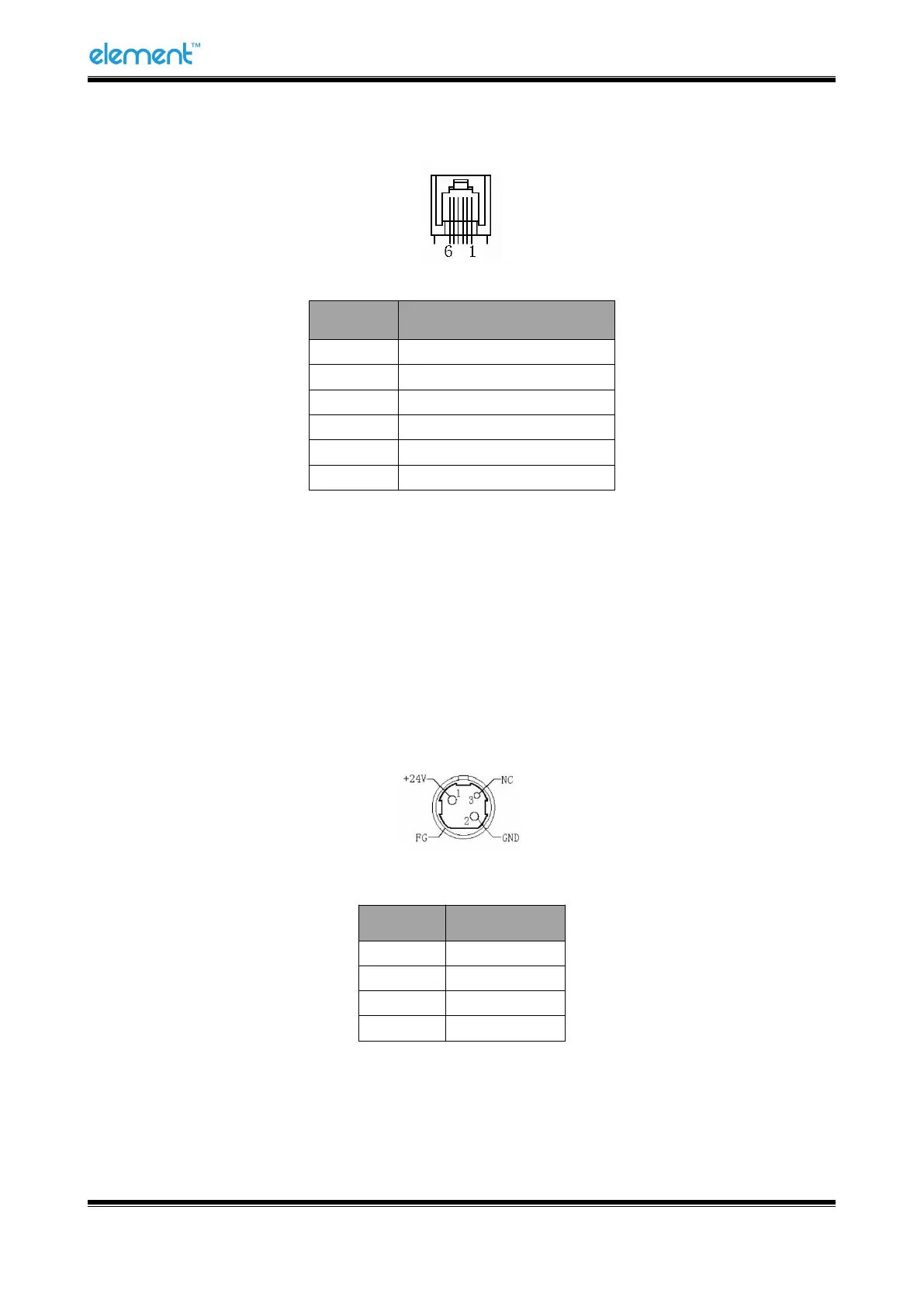

5.4 Cash Drawer Interface
Figure 5-4
PIN NO.
Signal Name
1
FG
2
Drawer 1
3
DRSW
4
VDR
5
Drawer 2
6
GND
Electrical characteristics
 Driving voltage：DC 24 V
 Driving current：Maximum 0.8 A ( In 510 ms)
Drawer check signal：“L” = 0～0.5 V “H” = 3～5 V
5.5 Power Supply Interface
Figure 5-5
PIN No.
Signal Name
1
+24V
2
GND
3
N.C
SHELL
F.G
Printer end-Unetop DC-002 or similar products, user end-Unetop DC-002 or similar products.
