Transistor hFE
Range Test Condition
NPN 10mA 2.8V
PNP 10mA 2.8V
Diode Test
Measures forward resistance of a semiconductor junction in k Ohm at max. test current of 1.5mA.
3. OPERATION
3-1 Preparation and caution before measurement
-29-

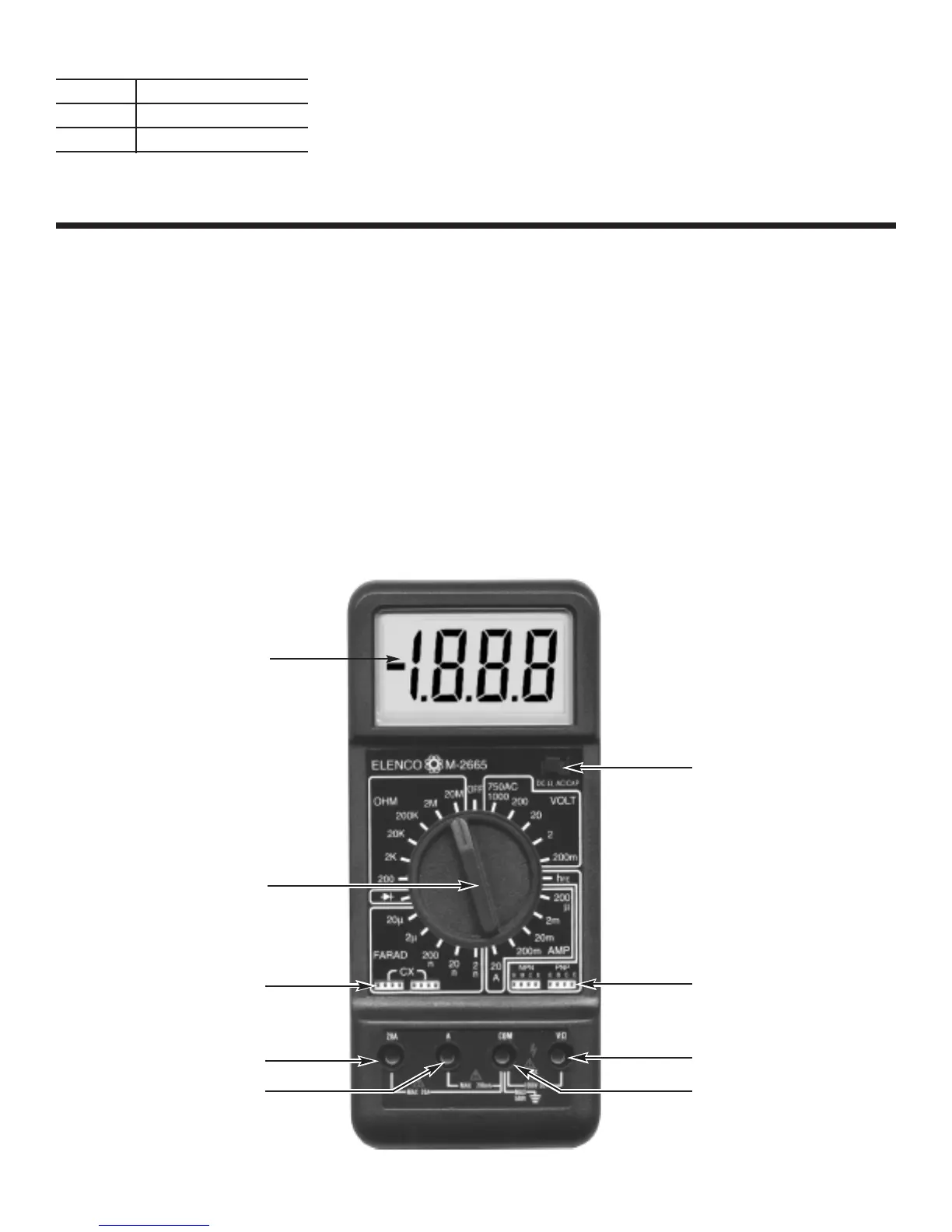

LCD Display
Range Selector Knob
Capacitor Input Socket
20A Input Jack
(200mA Max) A input Jack
Selector Switch
hFE Input Socket
Volt Ohm Input Jack
Common Input Jack
1. If the function must be switched during a
measurement, always remove the test leads
from the circuit being measured.
2. If the unit is used near noise generating
equipment, be aware that the display may
become unstable or indicate large errors.
3. Avoid using the unit in places with rapid
temperature variations.
4. In order to prevent damage or injury to the unit,
never fail to keep the maximum tolerable voltage
and current, especially for the 20A current range.
5. Carefully inspect the test lead. If damaged,
discard and replace.
3-2 Panel Description
