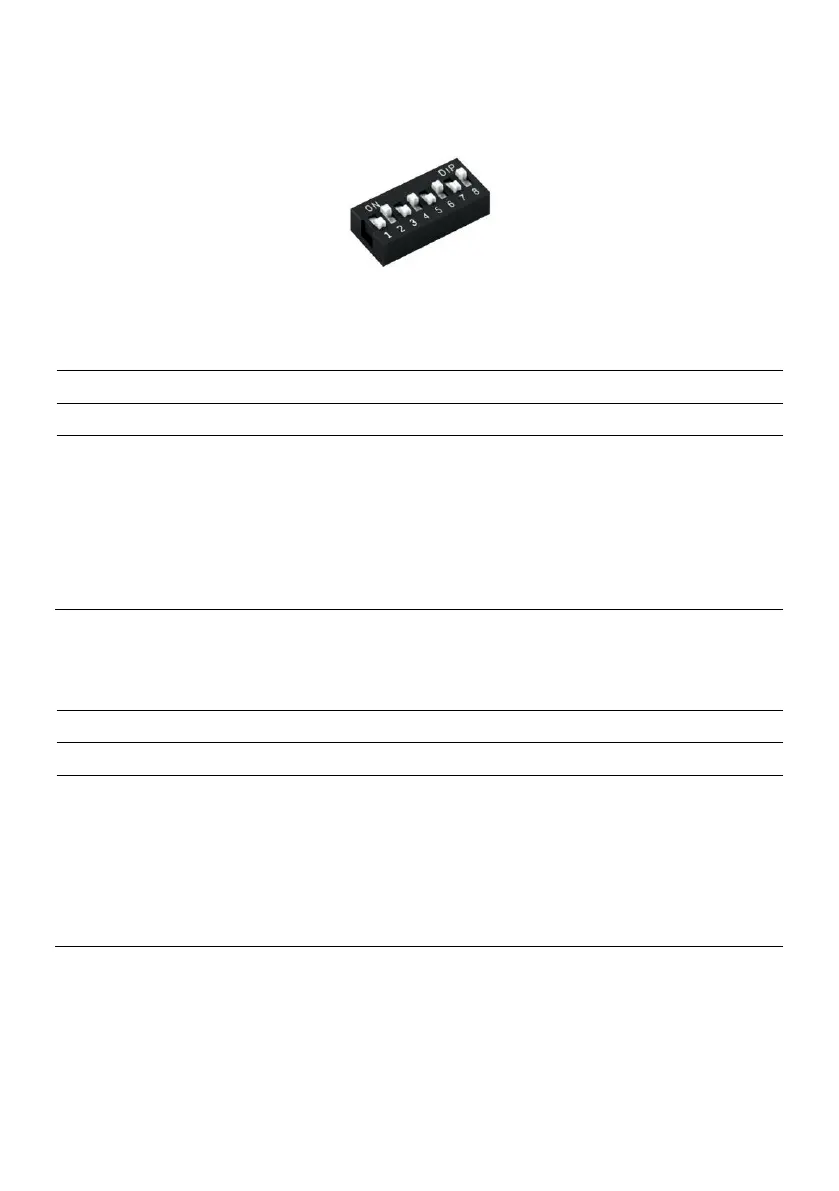

8. MOTHERBOARD DIP-SWITCH SETTINGS
Set DIP-SWITCHES with the panel switched off.
8.1 DIP-SWITCH 1 - level alarm signalling from probes input
Level alarm signalling from probe input disabled
Level alarm signalling from probe input enabled
DIP-SWITCH 1 enables level alarm signalling from probe input or minimum level float (C-MIN-
MAX input).
In the OFF position, an input status change does not cause any alarm signal.
In the ON position, an input state change - depending on the emptying or filling function - leads
to the signalling of an alarm on the panel and the activation of the voltage-free contact alarm
output and voltage alarm output.
8.2 DIP-SWITCH 2 - Ammeter trip delay
Delay of motor ammeter activation by 5 seconds
Delay of motor ammeter activation by 10 seconds
DIP-SWITCH 2 is used to select the thermal switch activation delay time of 5 or 10 seconds.
The setting of this parameter prevents activation of the motor thermal switch during motor start-
up, thereby avoiding a start-up current.
In the OFF position, the ammeter trip delay at motor start is 5 seconds.
In the ON position, the ammeter trip delay at motor start is 10 seconds.
