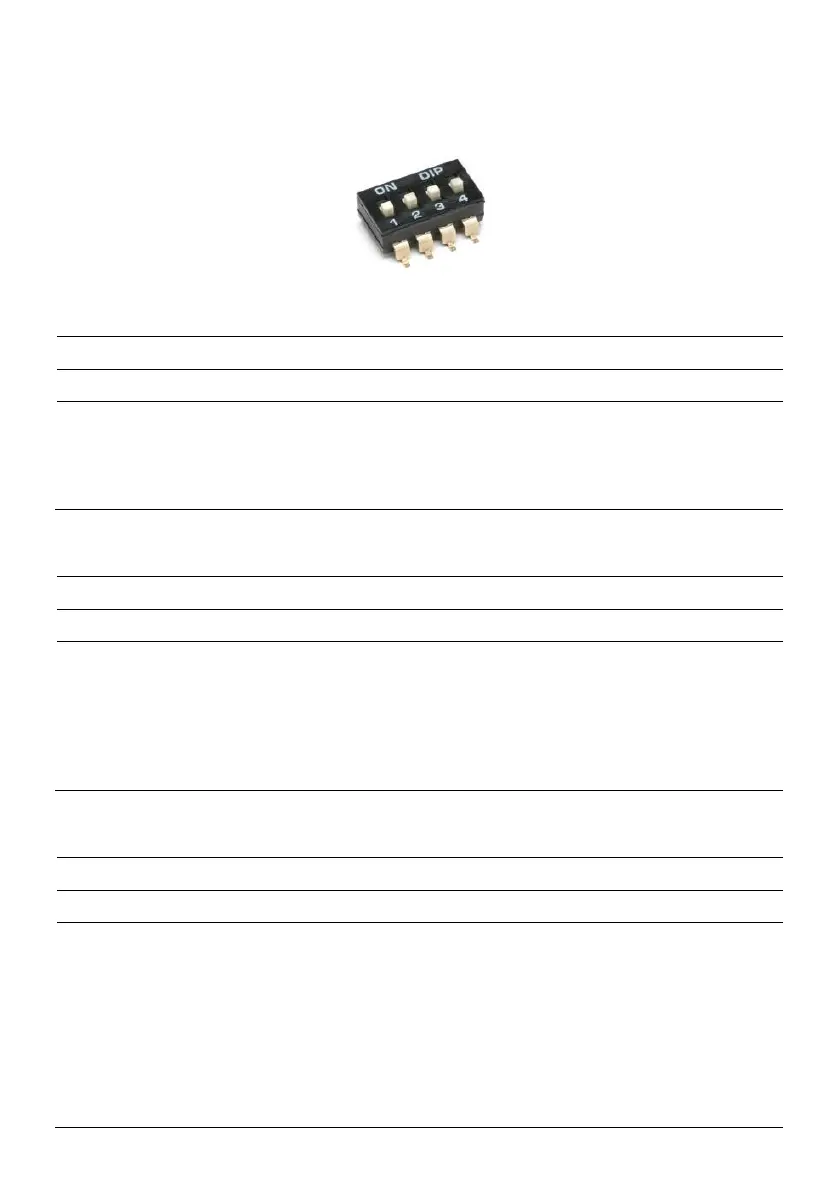

9. DIP-SWITCH SETTINGS DISPLAY
Set DIP-SWITCHES with the panel switched off.
9.1 DIP-SWITCH 1 - NO/NC (G/P1 - G/P2 - G.A.) Input reversal
OFF 
Normally open inputs.
ON 
Normally closed inputs.
DIP-SWITCH 1 allows to invert the enabling of digital inputs G/P1 - G/P2 - G.A.
In the OFF position, normally open inputs enable the system to close the contact.
In the ON position, normally closed inputs enable the system to open the contact.
9.2 DIP-SWITCH 2 - Phase sequence control exclusion
OFF 
Missing or incorrect phase sequence check enabled.
ON 
Missing or incorrect phase sequence check disabled.
DIP-SWITCH 2 disables the missing or incorrect phase sequence check at the panel input.
In the OFF position, power phase fault monitoring is enabled.
In the ON position, power phase fault monitoring is disabled.
NB: this check is only available in three-phase version.
9.3 DIP-SWITCH 3 - Self-test enable
OFF 
Motor self-test disabled
ON 
Motor self-test enabled
DIP-SWITCH 3 enables motor self-test.
In the OFF position, self-test is disabled.
In the ON position, self-test is enabled.
Self-test has a fixed, non-adjustable time and will enable the pump, or pumps depending on the
panel model, for 2 seconds every 48 hours.
A pump self-test can only be activated if the Automatic function of the panel is enabled.
