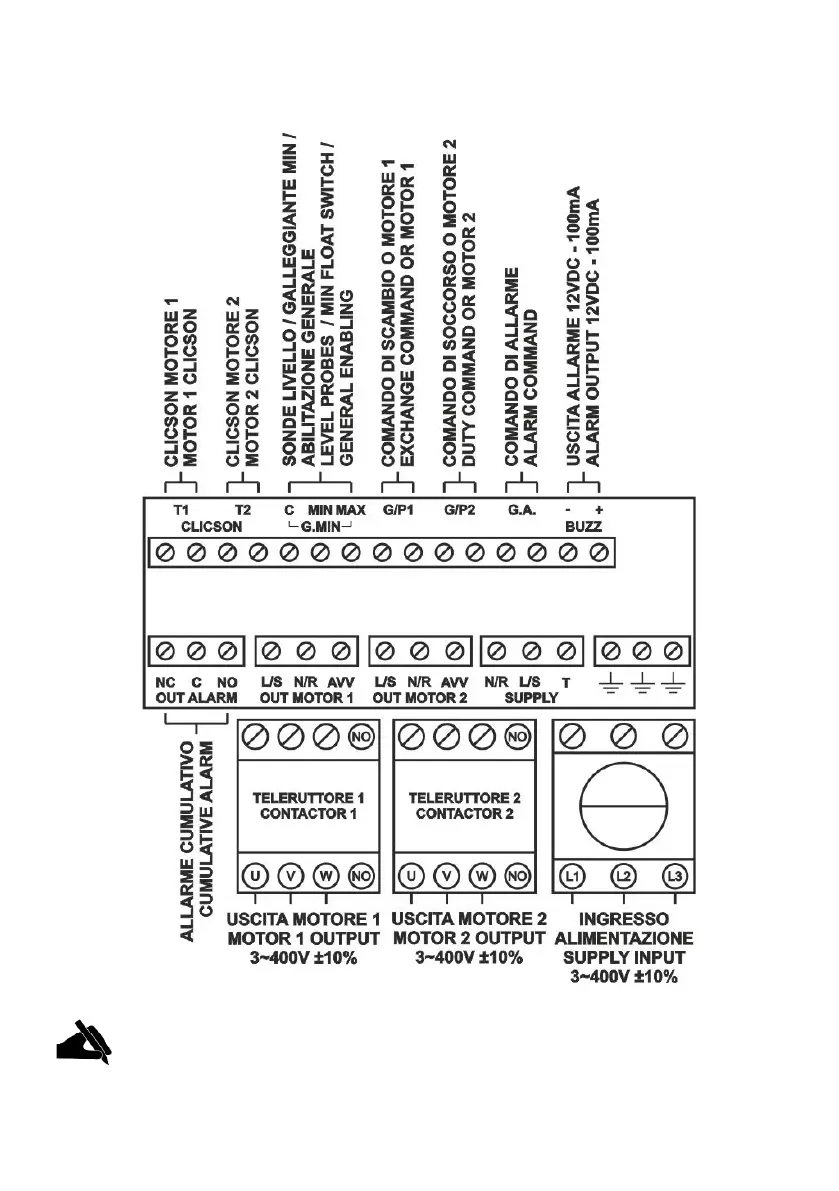

12.2 SMART PRO Three phase (400V) wiring diagram

N.B.: On the three phase 230V version, the power supply and motors must be 3~230V.
