Eliwell IDplus 961 User Manual

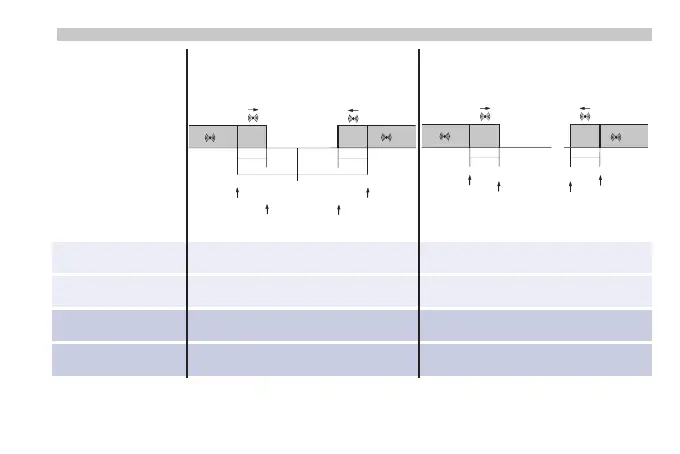

MAX AND MIN TEMPERATURE ALARM
11
Setpoint - LAL
AFd
Off
Setpoint + HAL
AFd
Setpoint - LAL + AFd
Setpoint + HAL - AFd
Setpoint
Temp. ≤ Set+LAL *
Temp. ≥ Set+HAL **
Temp. ≥ Setpoint + LAL + AFd
Setpoint -|LAL|+AFd
Temp. ≤ Setpoint + HAL - AFd
Relative Temperature Value
to setpoint (Att=1)
* if LAL is negative, Set + LAL < Set
** if HAL is negative, Set + HAL > Set
Absolute Temperature Value
(Att=0)
Temp. ≤ LAL (LAL with sign)
Temp. ≥ HAL (HAL with sign)
Temp. ≥ LAL + AFd
Temp. ≤ HAL - AFd
LAL
AFd
HAL
AFd
LAL + AFd
LAL - AFd
Minimum temperature
alarm
Maximum
temperature alarm
Returning from maximum
temperature alarm
Returning from minimum
temperature alarm
