ID 961 4/4
1 2 3
6 7 8 9
ID 961 - 12 V
A
TERMINALS
1 - 2 N.C. compressor relay
1 - 3 N.A. compressor relay
6 - 7 Power supply
8 - 10 Probe 1 input (thermostat)
A TTL input for Copy Card
NOTE: Default user settings
1 2 3 6 7
8 9
ID 961 - 230 V
A

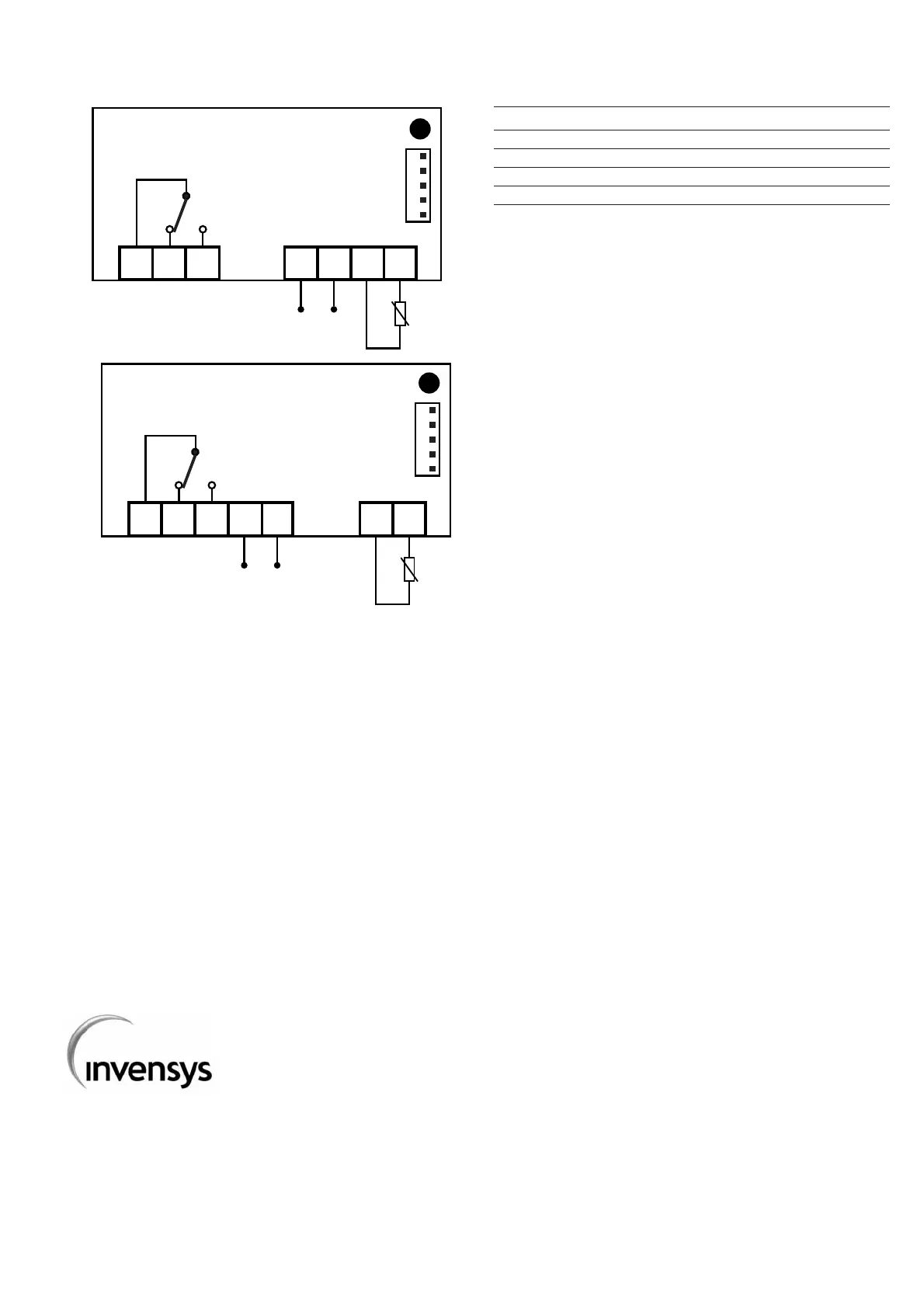

Wiring diagram
Invensys Controls Italy s.r.l
via dell'Industria, 15 Zona Industriale Paludi
32010 Pieve d'Alpago (BL) ITALY
Telephone +39 0437 986111
Facsimile +39 0437 989066
Internet http:/www.climate-eu.invensys.com
4/2002 eng
cod. 9IS42060
