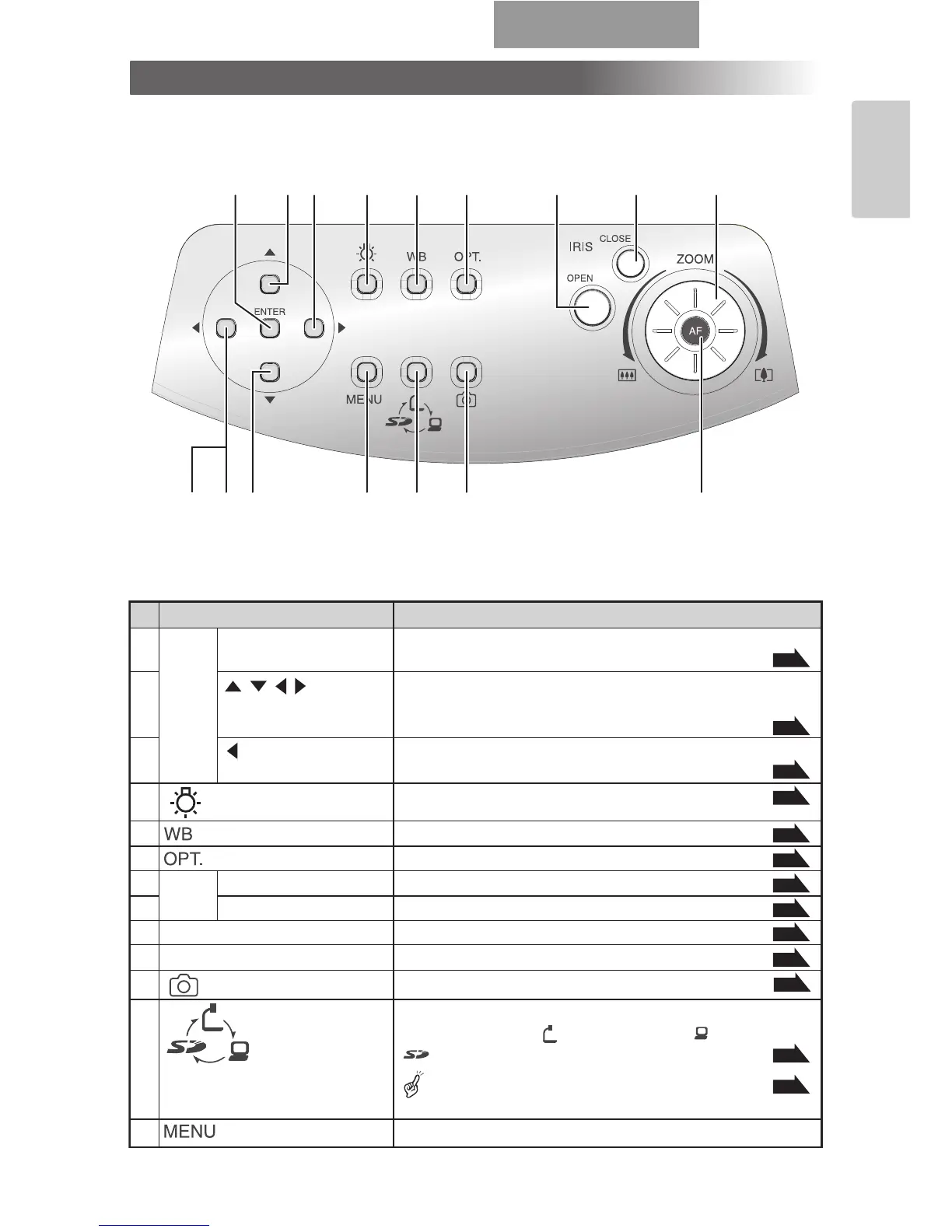

■ Front Operating Panel
* Hereinafter the menu items to be displayed/selected on the monitor or projection screen
are referred to as "OSD (On-Screen Display)."
Name Function
q OSD ENTER (Fix) To fix the OSD item, select an image from the images in
Opera- the SD card displayed on the split screen
w tion (Direction)
To select the OSD item, move the selection frame (cursor)
of the recorded image,scroll the digitally zoomed-in image
e (Menu Delete) To cancel the OSD from the screen when the top OSD item
is resumed
r (Lamp) To turn ON/OFF the lighting
t (White Balance) To select Auto Track / Auto Adjust and Fix
y (Optional Setting) To set the desired function by using the OSD
u IRIS OPEN (Open) To brighten the camera image
i (Iris) CLOSE (Close) To darken the camera image
o ZOOM (Zoom) To operate the zoom function by turning the dial
!0 AF (Auto Focus) To focus the camera automatically
!1 (Image Save) To save the image to an SD card
!2 (Image Select) To switch the output image by pressing this button in order
of Camera image ( ) → RGB image ( ) → SD mode
( )
Images to be switched depend on the image
output terminal.
!3 (Menu) To display/cancel the OSD
P.67
P.67
P.67
P.68
P.93
P.93
P.86
P.88
P.81
P.87
P.91
P.89
P.65
