Connecting of Video Cables
To protect this product and the peripheral units to be connected to this product, be sure to turn OFF the
power supply to all units beforehand.
When plugging in/out the connection cable, hold the plug part of the cable.
q Connecting to the PC with a USB cable
Connect a USB cable to the [USB] terminal on the side panel.
The USB cable compliant with USB2.0 is recommended.
If you plug into a USB connector with power on, PC may not recognize this product.
w Connecting to the unit having the DVI input terminal
Connect the DVI cable to the [DVI OUT] terminal on the rear panel.
e Connecting to the unit having the analog RGB input terminal
Connect the analog RGB cable to the [RGB OUT] terminal on the rear panel.
The display position may be displaced from the center of the screen. In such case, adjust the horizontal
and vertical positions manually from the connected device.
Vertical stripes may appear on the LCD projector screen or the monitor screen. This phenomenon can be
mitigated by adjusting the dot clock manually from the connected device.

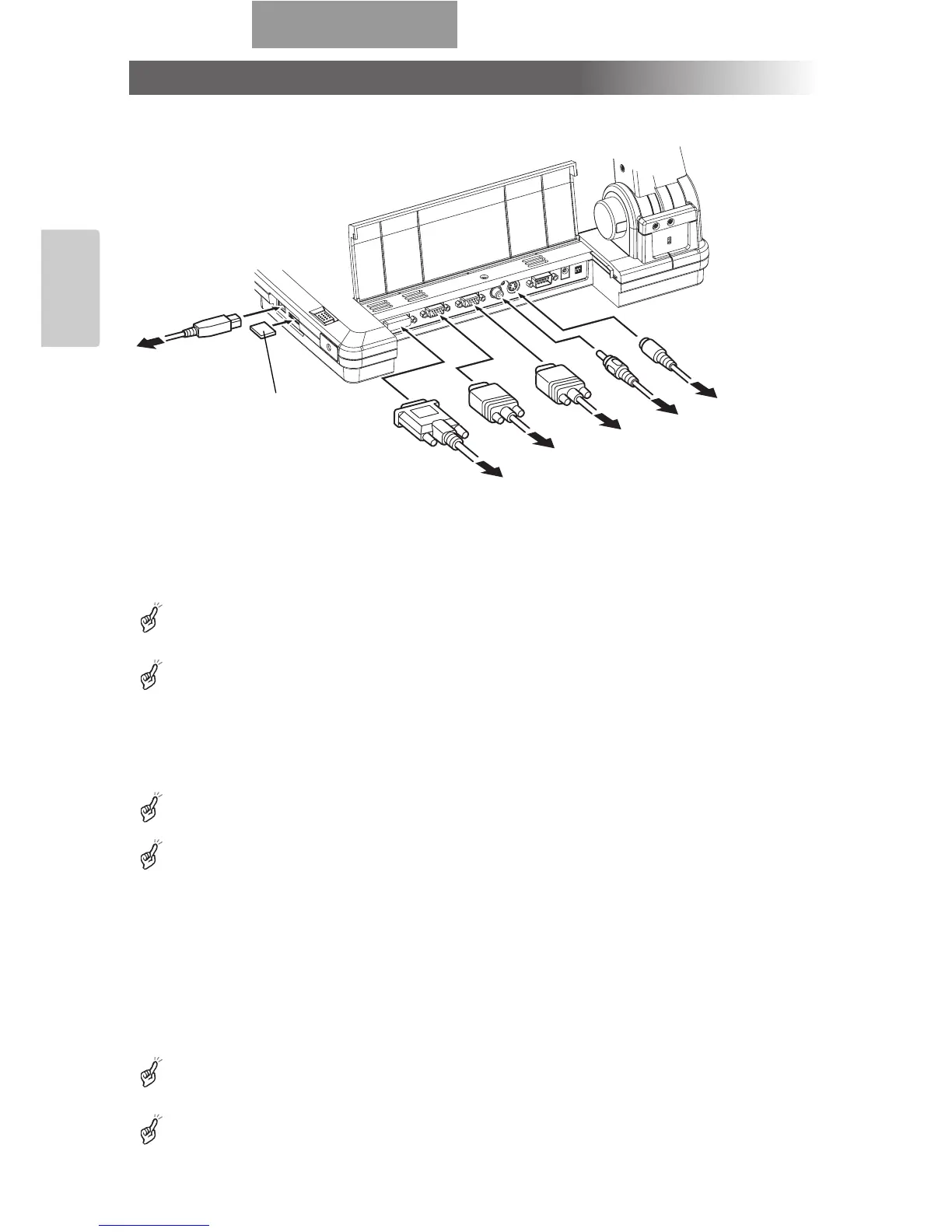

USB terminal
•To PC
DVI OUT
terminal
•To Projector
•To PC monitor
RGB OUT
terminal
•To Projector
•To PC monitor
RGB IN
terminal
•To PC
VIDEO OUT
terminal
•To TV monitor
S-VIDEO OUT
terminal
•To TV monitor
q
w
e
r
t
y
