Elo TouchSystems ET1587C User Manual

- 10 -
3. Connect the Video Cable
Connect one end of the video cable to the video connector on your PC and the other
end of the cable to the video connector on your monitor. Secure the cable by turning
the thumbscrews on each connector.
4.Connect the Serial Touchscreen Cable
Connect the touchscreen cable. Connect one end to the appropriate port on
the back of your computer. Connect the other end of the cable to the
touchscreen connector on your touchmonitor. The touchscreen cable
connectors should fit snugly into the connectors on your touchmonitor and
computer. Secure the cable by turning the thumbscrews on each connector.

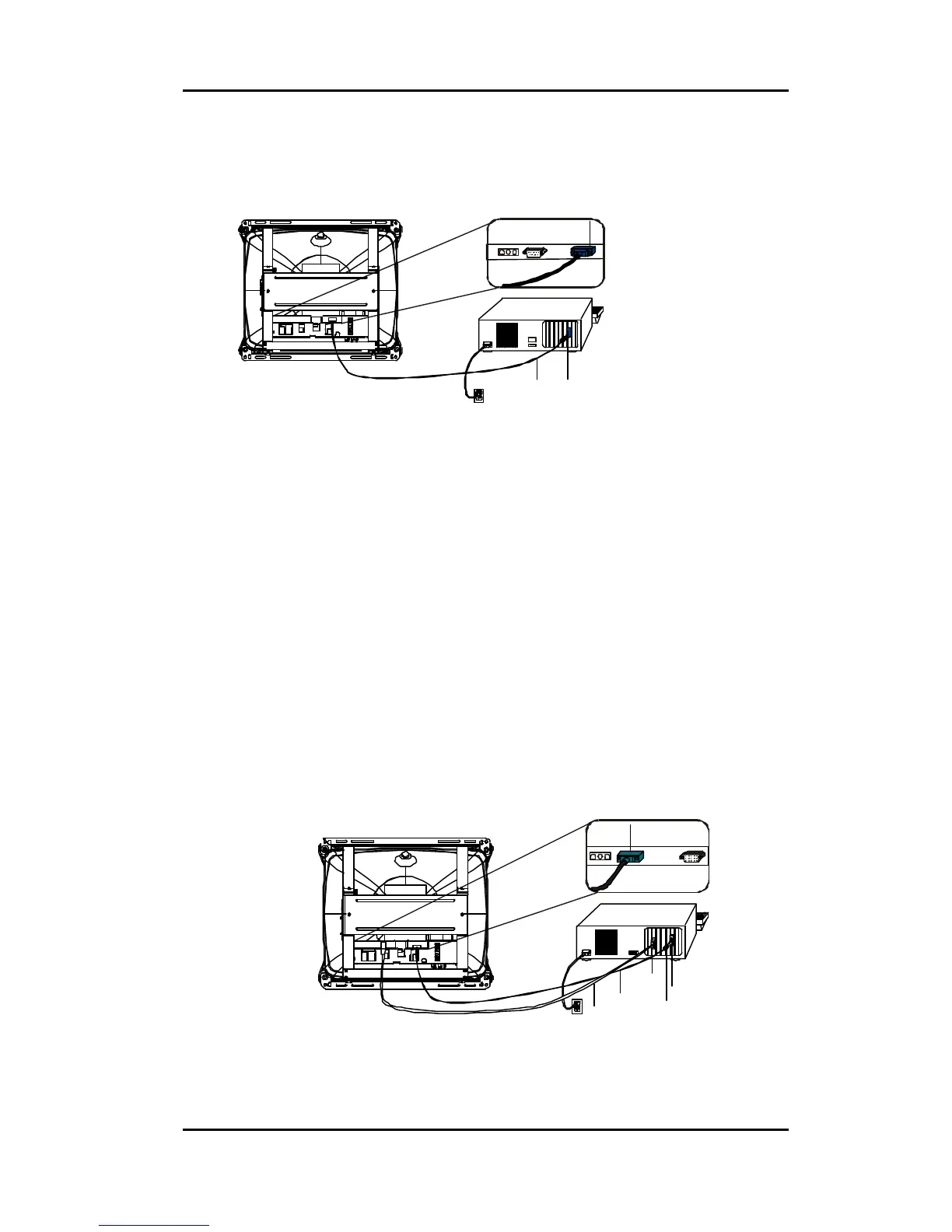

Video
cable
Video
port
Female 15-pin
video
connector
Connections on underside
Video
cable
Video
port
Female 9-pin
cable
connector
Connections on underside
Ferrite bead
Serial
cable
Serial
port
