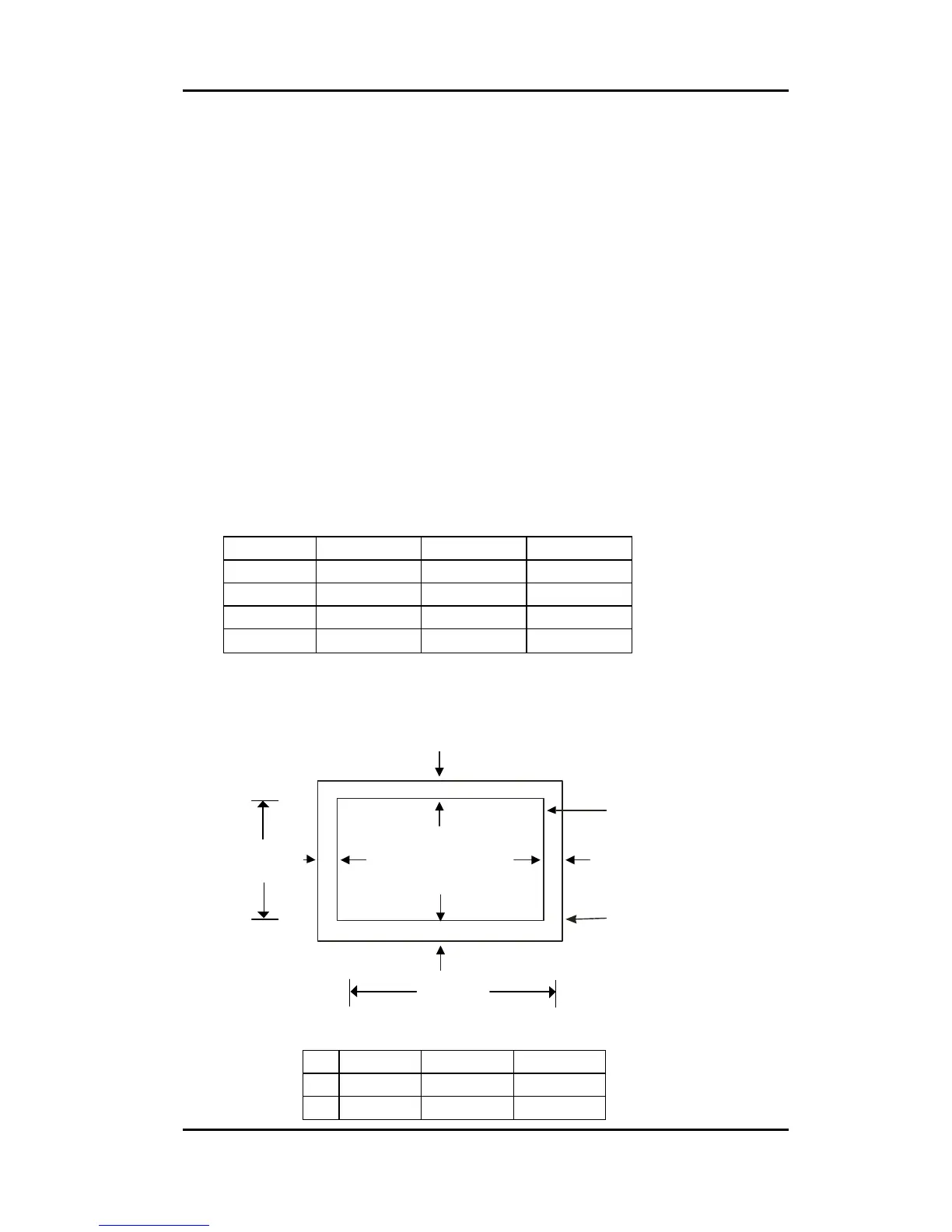

- 27 -
MONITOR INSPECTION STANDARDS
1.Signal level and input impedance
1.1 Video Signal level
This CRT display is adjusted at the factory using 0.7Vpp Video Signal. Black level
is 0 V.
1.2 Sync Signal level
H/V Separate, H/V Mixed: TTL level.
1.3 Input impedance
Video input:75Ω
Sync input: 1kΩ
2.Display performance
2.1 Display area
Preset timing
CRT Size 15” 17” 19”
Mode 4 5 5
Width 270 300 350
Height 202 225 262
Range ±5mm ±5mm ±5mm
2.2 Centering
The display centering can be adjusted within the center of bezel by external controls .
A
225
B
D
C
300
Display area
Edge of bezel
15” 17” 19”
H 270 300 350
V 202 225 262
H
V
