- 17 -

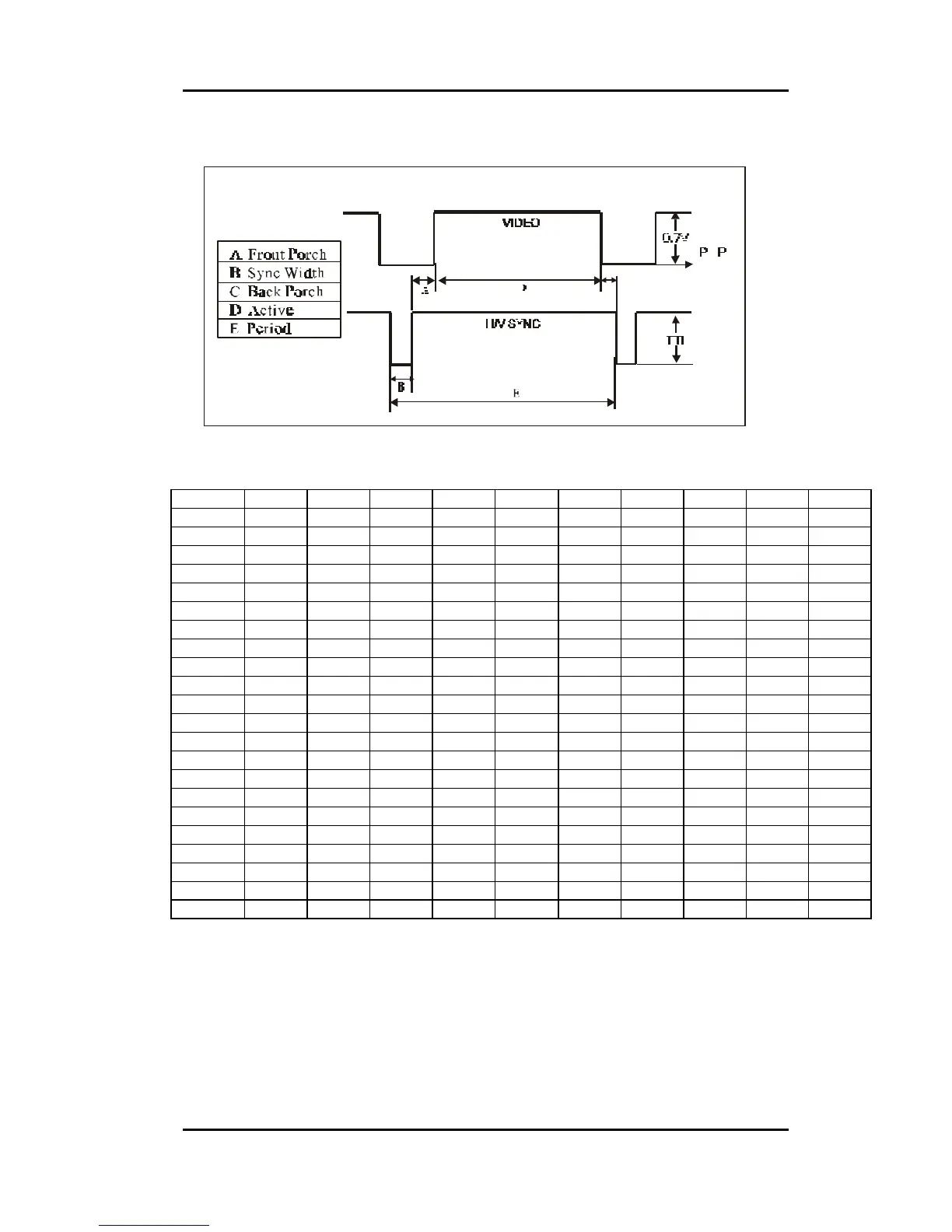

5.TIMING CHART
Timing 1 2 3 4 5 6 7 8 9 10
Standard VGA VGA VGA VGA VGA VESA VESA VGA SVGA VGA
Data Pixel 536 536 640 640 640 800 1024 640 800 640
Data Line 420 420 350 400 480 600 768 480 600 480
H-Freq kHz 30.671 30.671 31.469 31.469 31.469 53.674 68.667 31.469 37.879 31.469
V-Freq Hz 49.953 59.904 70.087 70.087 59.942 85.061 84.997 59.941 60.317 59.941
Pix Rate 19.66 19.66 25.175 25.175 25.175 56.250 94.500 27 40 27
Hor.A (us) 0.763 0.763 0.636* 0.636 0.636* 0.569 0.508 1.407 1.0 1.778
Hor.B (us) 3.255 3.255 3.813 3.813 3.813 1.138 1.016 2.370 3.2 3.037
Hor.C (us) 1.272 1.272 1.907* 1.907 1.907* 2.702 2.201 4.296 2.2 3.07
Hor.D (us) 27.263 27.263 25.422 25.422 25.422 14.222 10.836 23.704 20 23.704
Hor.E (us) 32.604 32.604 31.778 31.778 31.778 18.631 14.561 31.778 26.4 31.778
Vert.A (ms) 2.445 0.783 0.381 0.381 0.381 0.019 0.015 0.286 0.026 0.064
Vert.B (ms) .130 0.130 0.064 0.064 0.064 0.056 0.044 0.191 0.106 0.059
Vert.C (ms) - - 1.875 1.112 1.048# 0.503 0.524
Vert.D (ms) 13.694 13.694 11.122 12.711 15.253 11.179 11.183 15.253 15.840 15.255
Vert.E (ms) 20.019 16.693 14.269 14.269 16.683 11.756 11.765 16.683 16.579 16.683
Sync.Pol. + / + + / + + / - - / + - / - + / + + / + - / - - / - - / -
Note:
1.Timing 5 is for 17” and 19” models only.
2.Timing 1,2 is for Bally 17” and 19” models only.
3.Timing 8~10 is for SEGA 19” model only.
