6. Operation / control
20 / 24 www.elobau.com 9010041B01M

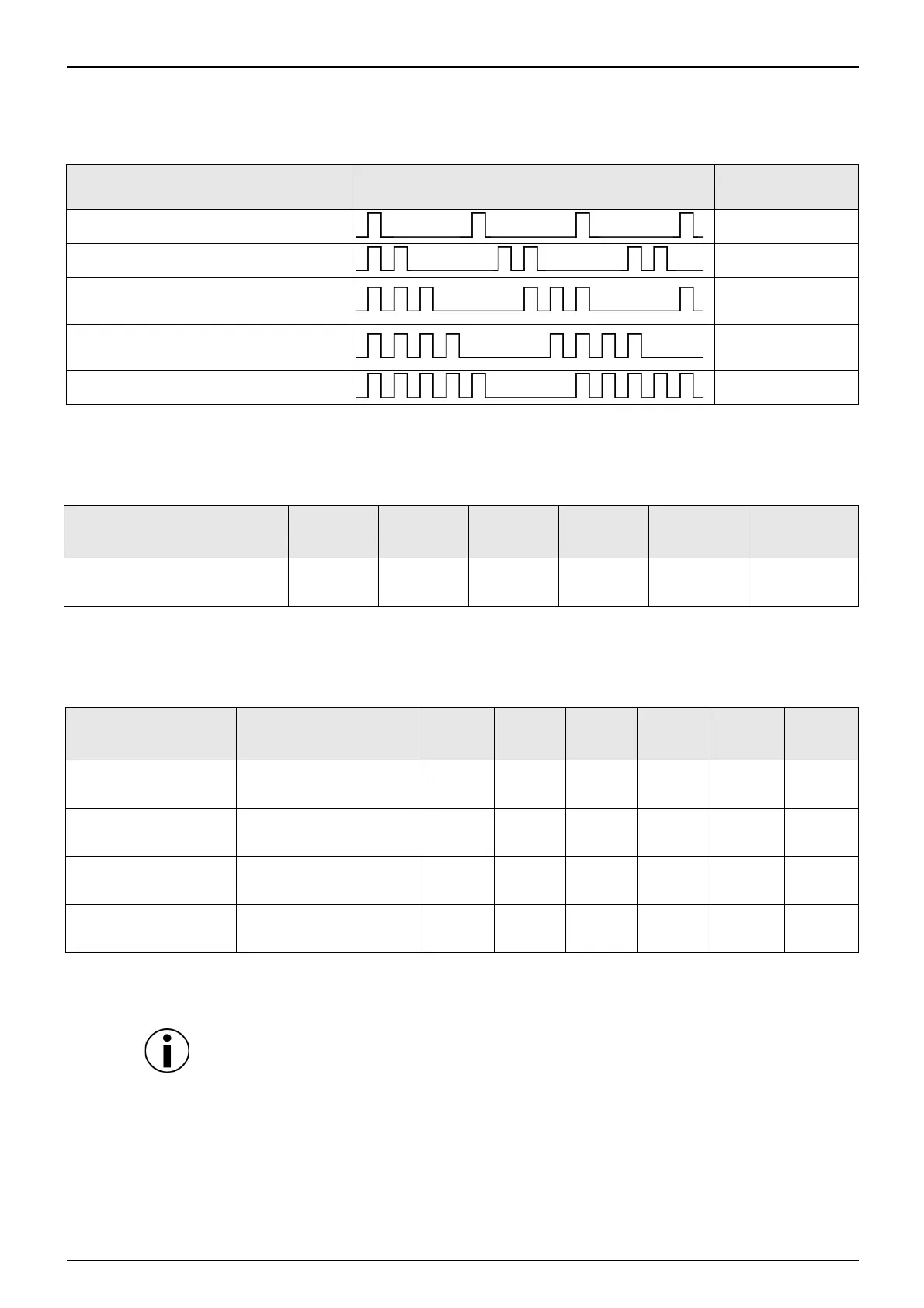

6.2 Error messages, troubleshooting
Signalling of the individual error
Tabelle 10
LEDs for error, except operating time error
Tabelle 11
LEDs for operating time error
Tabelle 12
Information
Not all errors are indicated externally by a flash code.
Restoration of operational readiness
If the safety output has been opened by a triggered sensor contact, for
example.
Detected error Flash code of the ready for operation
LED
Display
EDM input error 1 flash pulse
Operating time error 2 flash pulses
Internal overvoltage or
undervoltage
3 flash pulses
Temperature in the device outside
of the permitted range
4 flash pulses
Internal device error 5 flash pulses
LED BTR LED SE1 LED SE2 LED SE3 LED SE4 LED SA
red
LED SA
green
Flash code for detected
error
off off off off on off
Operating time
error
LED BTR LED
SE1
LED
SE2
LED
SE3
LED
SE4
LED SA
red
LED SA
green
Operating time error
SE1
Flash code for opera-
ting time error
Flashing off off off on off
Operating time error
SE2
Flash code for opera-
ting time error
off Flashing off off on off
Operating time error
SE3
Flash code for opera-
ting time error
off off Flashing off on off
Operating time error
SE4
Flash code for opera-
ting time error
off off off Flashing on off
