905U Wireless I/O Module User Manual
105S Serial I/O Module
Page 56 © January 2011

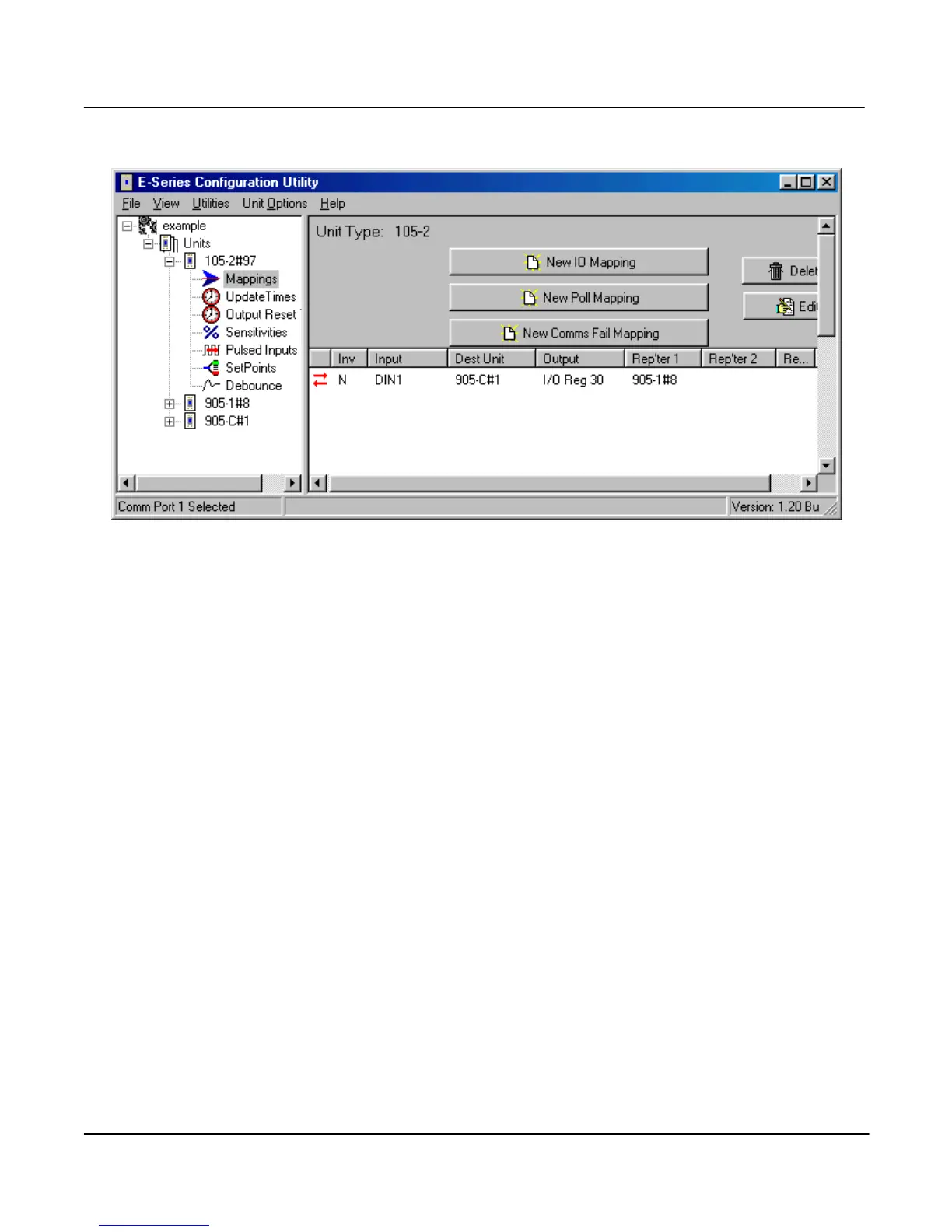

Example 2 - Mapping to a remote 905U.
In this example, a 105S-2 is connected to 905U-1#8. DI1 is mapped to a remote 905U-C module. The
905U that is connected to the 105S module acts as a repeater - a serial-to-radio repeater.
When DI1 changes, the 105S will send a message via the serial link to 905U-1#8, and this 905U
module will repeat the message by radio to the 905U-C module.
