905U Wireless I/O Module User Manual
105S Serial I/O Module
Page 78 © January 2011
Tank Station Configuration

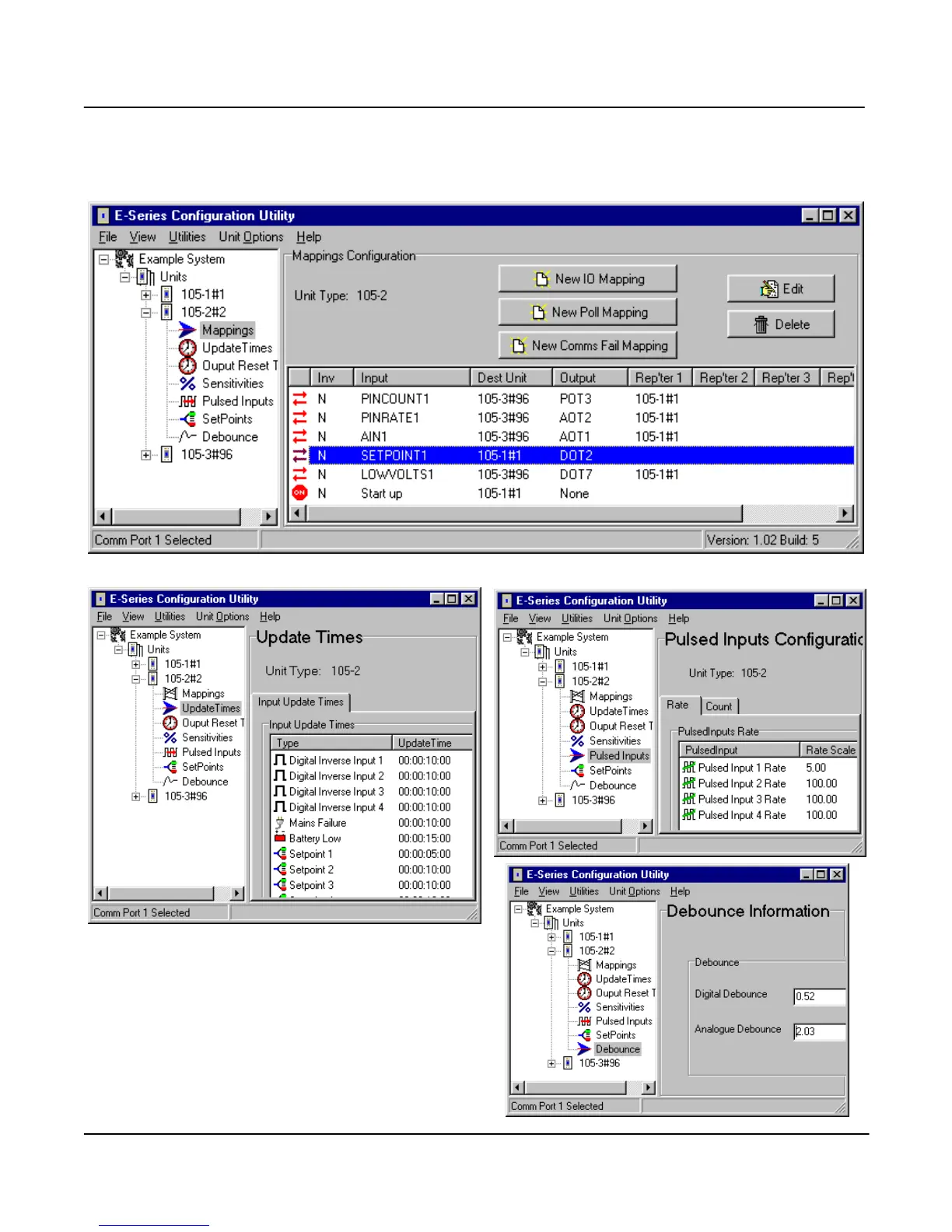

The 905U-2 module has the following configuration :-
Note the following points in the configuration :
• #1 is a repeater for communications between #2
and #96
• The pulse rate scaling for PIN1 has been set to 5
Hz to match the maximum flow rate of the flow
meter. Note that PIN1 has not been configured for
