ELSA 3L-SP - 3.5 3 L-DS WITH MULTI ZONE CONNECTION DETAILS

16
3.5 3L-DS WITH MULTI ZONE C ONNECTION DETAILS
3L-DS is the ‘Distance Spacer’ which shall provide ELAS standard 4m distance space in application, this can
be denoted as 3L-DS (04).
i.e.: Let’s say zone 1 sensing cable length is 40m and zone 2 sensing cable length is 60m, 3L-DS is installed
between the ‘output 2’ point and zone 2 starting point.
 At point ‘A’ cable length shall be 1m
 At point ‘B’ cable length shall be 40m
 At point ‘C’ cable length shall be 44m
 At point ‘D’ cable length shall be 104m

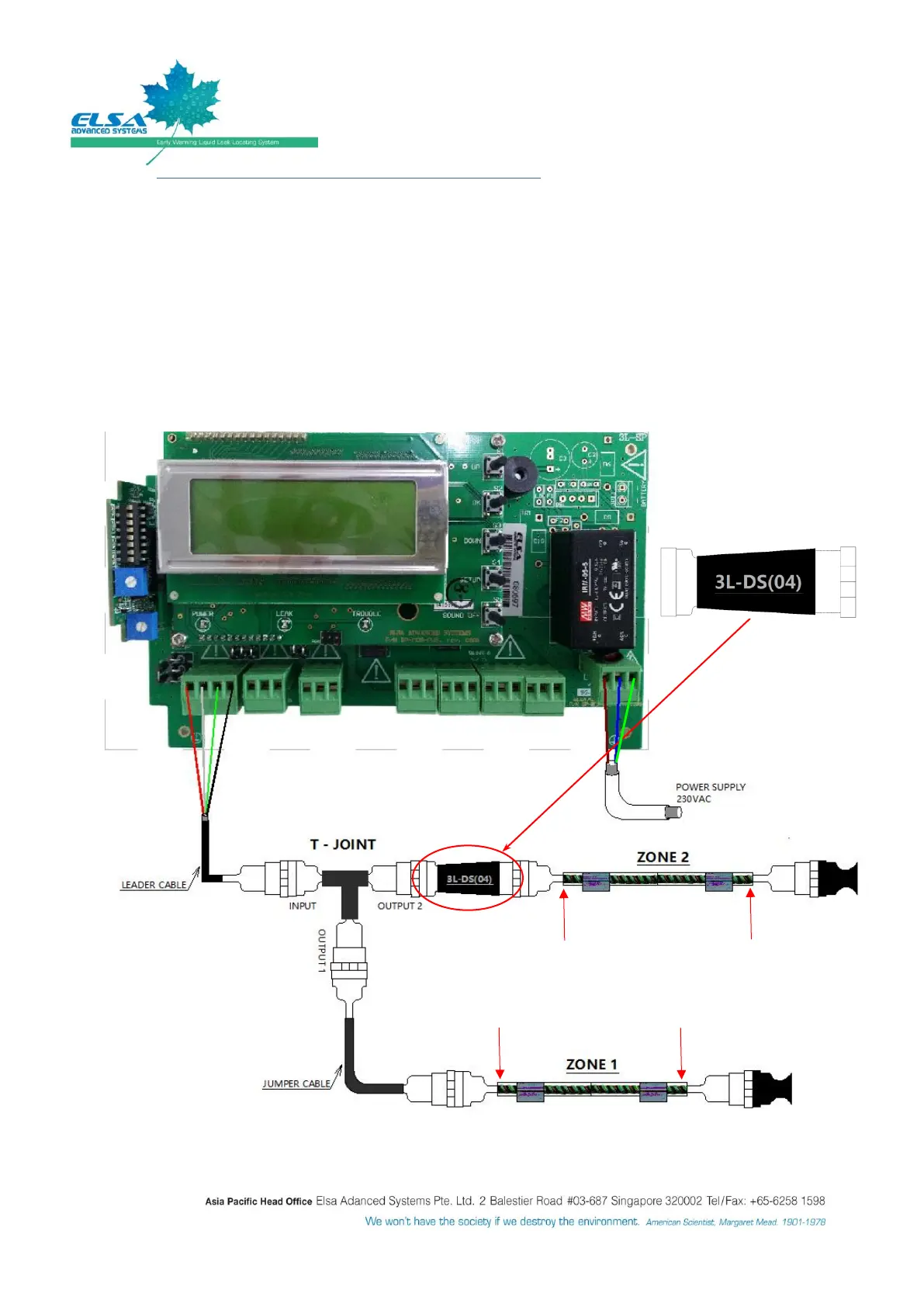

Figure 11: 3L-SP/AP panel with 3L-DS
A
C
D
B
