1.6 HOLD DOWN CLIP FOR SENSING CABLE

 It is recommended to place hold down clip with a spacing of 1m per clip.

 For corner or any bending angle area, use more clips per 1m.

 Use more hold down clip to isolated the sensing cable with the contact of metals.

1.7 3L-SP/AP PANEL MOUNTING HOLE DIMENSIONS

Refer the above figure to get the dimension details for the mounting purpose of 3L-SP/AP panel.

55mm

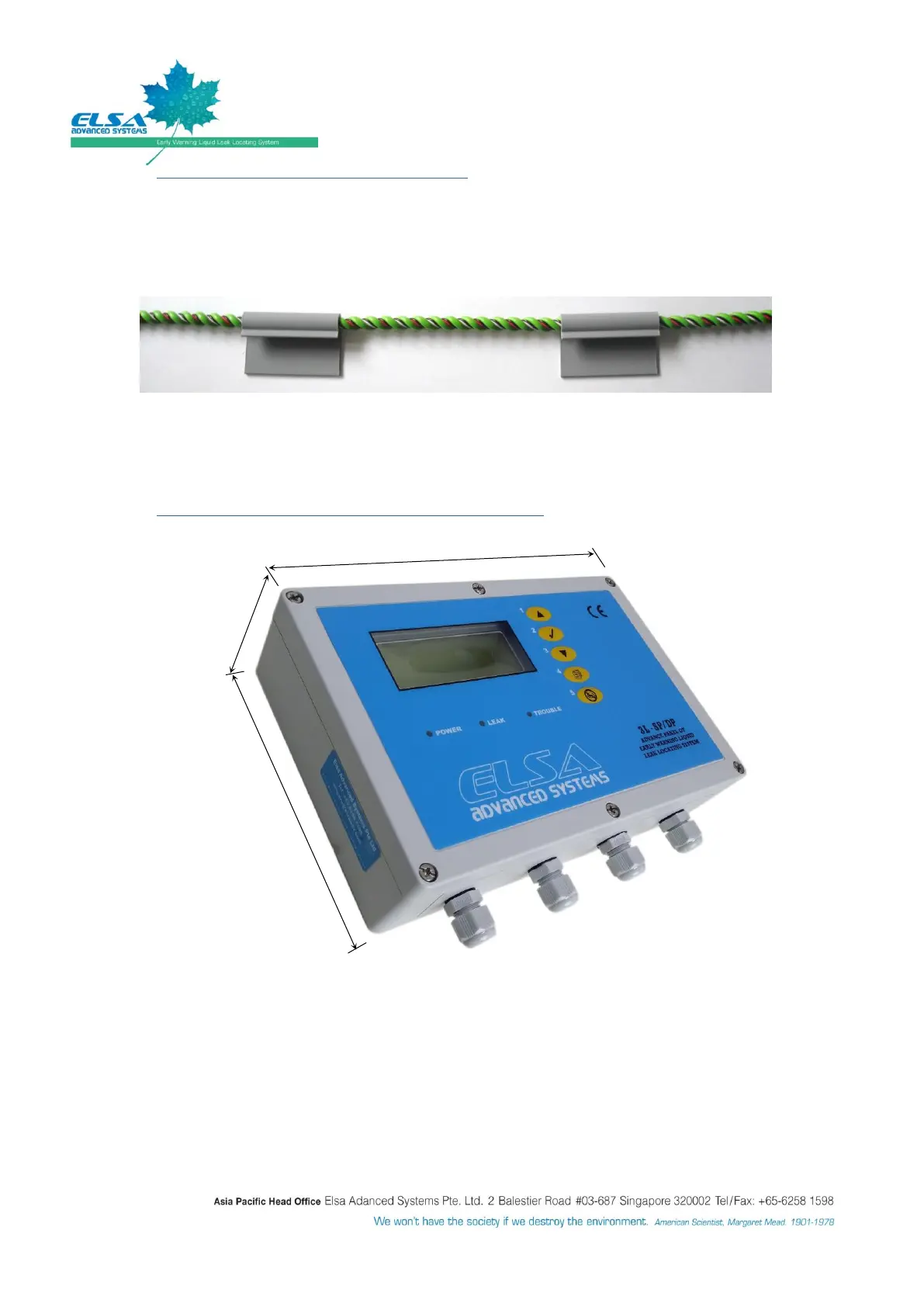

Figure 4: 3L-HDC for sensing cable

Figure 5: 3L-SP/AP panel dimensions

222mm

146mm
