924EHUCE4.00 - Mistral Humidier
4.8.2 Installation on a supporting base
Mounting hooks
1
2

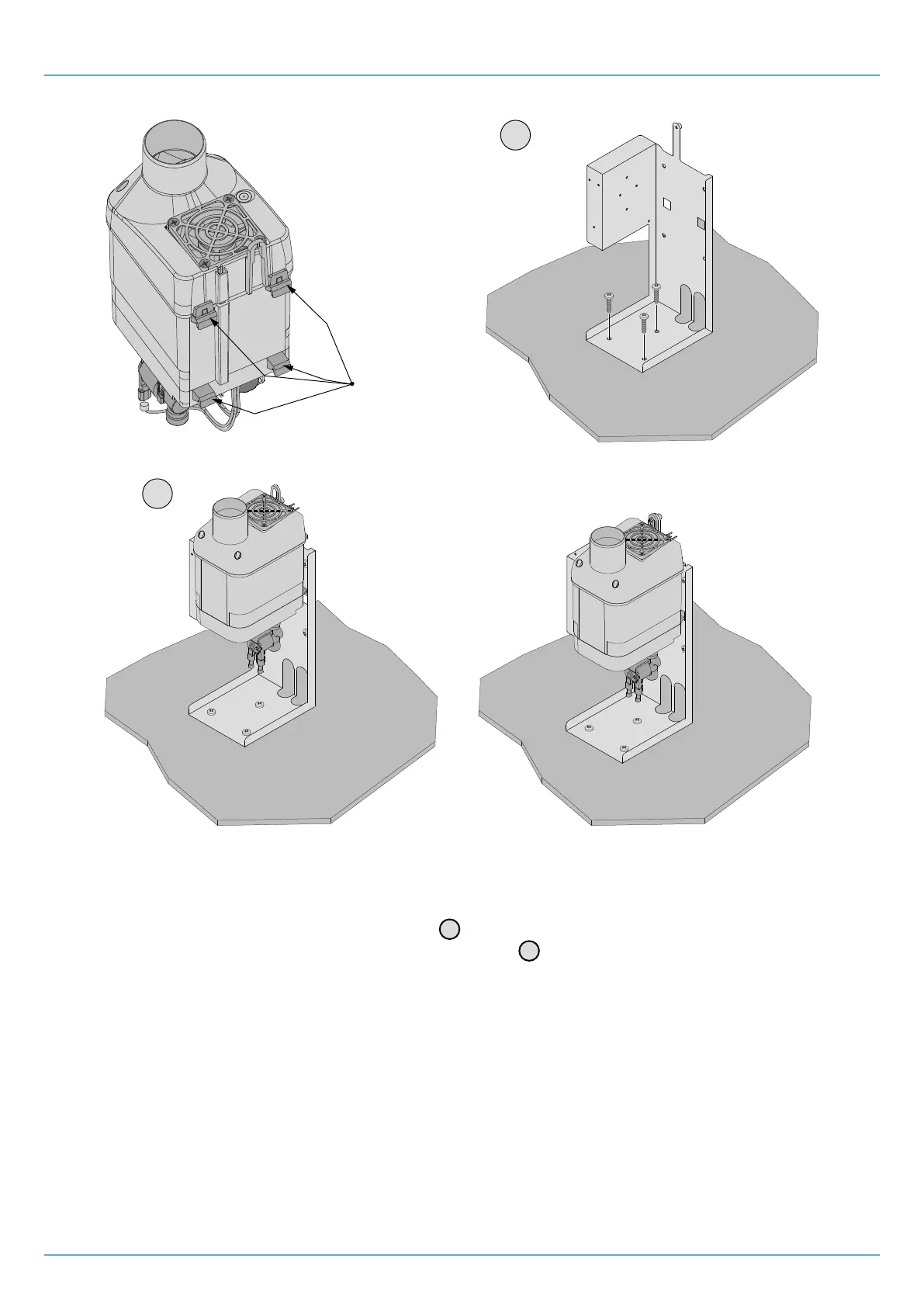

Fig. 10. Instructions for mounting the box on a supporting base
Instructions
• Secure the box to the base following the instructions given in the picture "FIG. 10. INSTRUCTIONS FOR MOUNTING THE
BOX ON A SUPPORTING BASE" ON PAGE 22 and the dimensions of the holes and box given in the subsection "4.3.2
DIMENSIONS OF MISTRAL WITH BOX" ON PAGE 15 (
1
);
• Attach the Mistralhumidiertothebox,makingsureitissecure(
2
);
