924EHUCE4.00 - Mistral Humidier
9.7 HUMIDITY ADJUSTMENT
9.7.1 ON/OFF regulator
HumidityadjustmentinON/OFFmodeismadebysetting:
• CFG = 0 or CFG = 5.
The outlet starts to produce humidity (at parameter value r6) when both digital inputs are closed.
If the digital input ID2isopen(consentnotprovided),the
LEDwillblinkwithaperiodof0.5sON-0.5sOFF.
Ifconsentisgiven,butthehumidifierisnotproducinganyhumidity,the
LEDwillblinkwithaperiodof1sON-3sOFF:

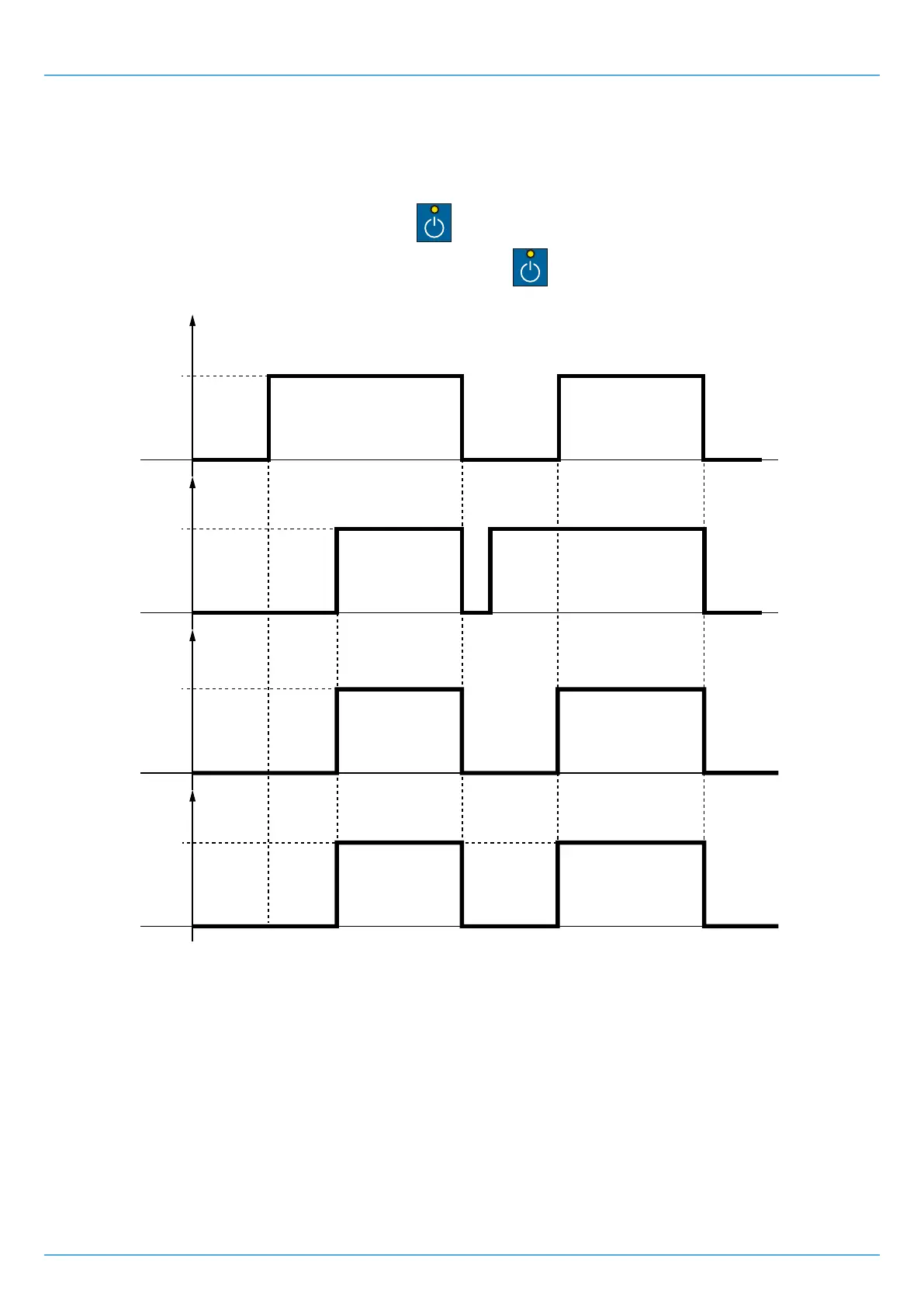

The following diagram explains the operating logic:
Humidity
r6
0%
Closed
Open
Open
Closed
Open
t
t
t
t
Fans
Closed
ID2
ID1
Fig. 40. Humidity adjustment - ON-OFF
