924EHUCE4.00 - Mistral Humidier
6.4.3 Humidity sensor connection 0...10 V
• Stand-alonecongurationCFG = 3,
• ParallelcongurationasmasterCFG = 8.
1 2 3 4 5 6 7
RH
0...10 V
3 = Sensor power supply
(if fitted)
4 = V+
5 = GND

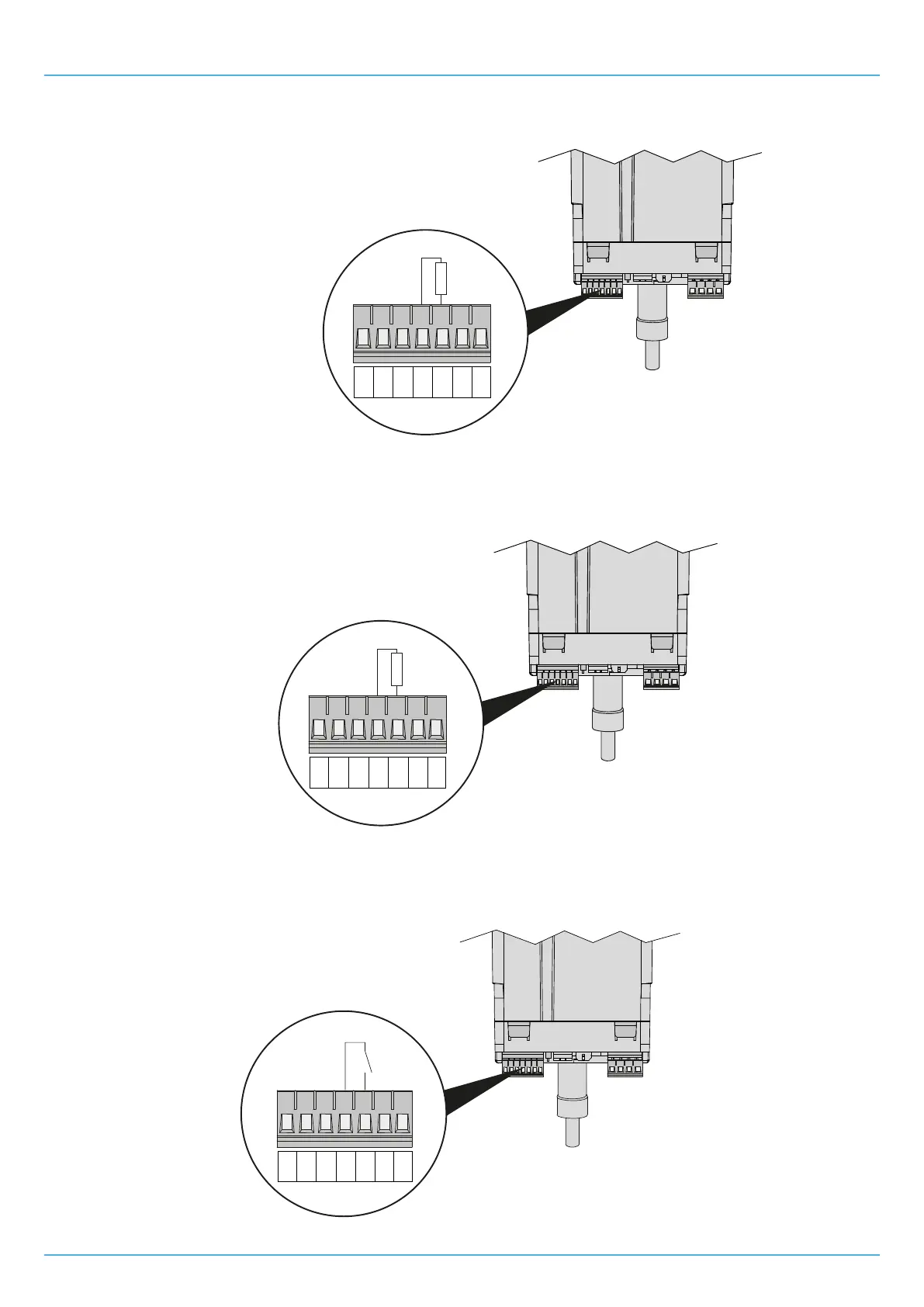

Fig. 21. Humidity sensor connection 0...10 V
6.4.4 External proportional humidistat connection with signal 0...10 V
• Stand-alonecongurationCFG = 1,
• ParallelcongurationasmasterCFG = 6.
1 2 3 4 5 6 7
0...10 V
4 = V+
5 = GND
Fig. 22. External proportional regulator connection with signal 0...10 V
6.4.5 ON/OFF connection with humidistat or external contact
• Stand-alonecongurationCFG = 0;
• ParallelcongurationasmasterCFG = 5.
1
ON/OFF
2 3 4 5 6 7
Fig. 23. ON/OFF connection with humidistat or external contact
