12
SYSTEM SETUP

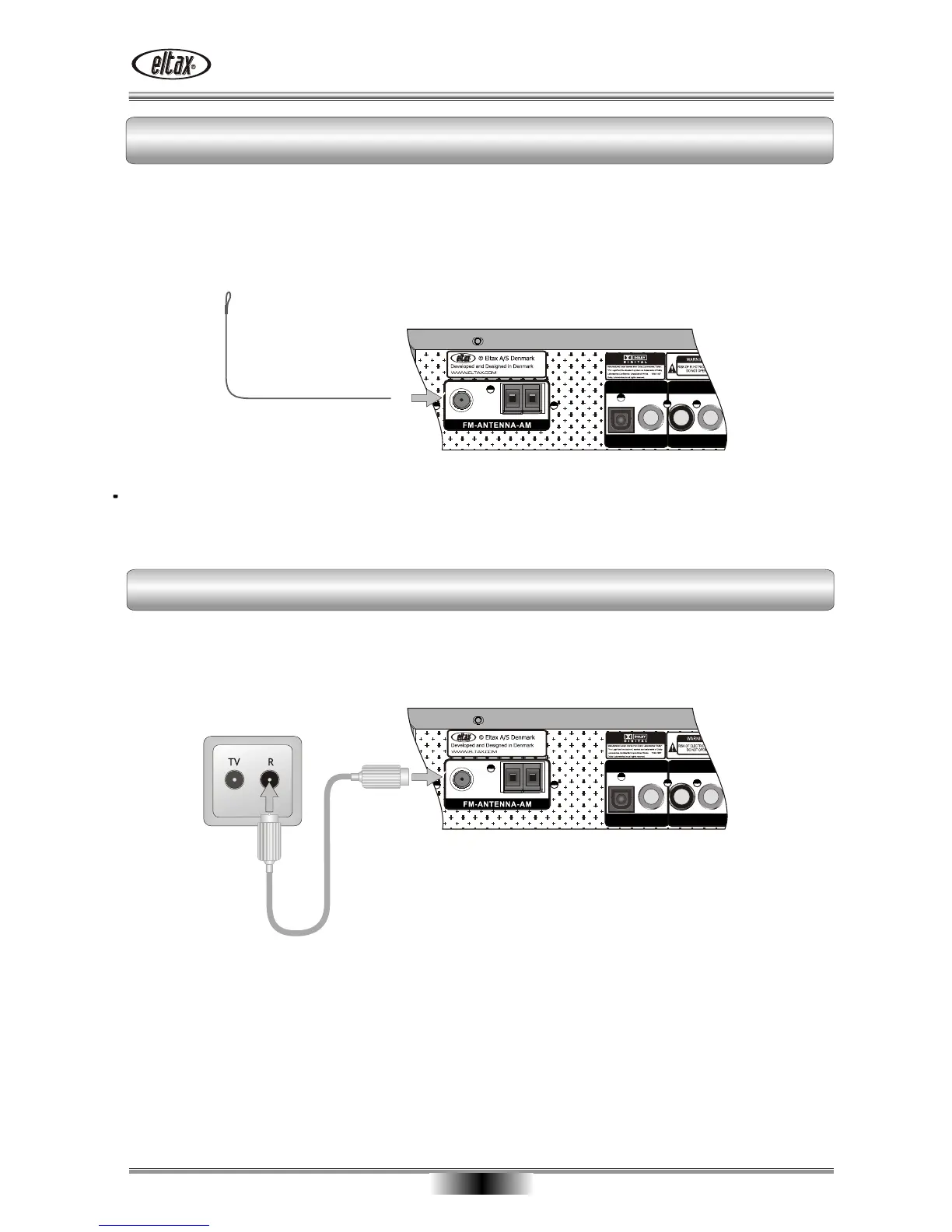

Installation and connection of FM antenna
Connect the FM indoor antenna to the antenna connection marked FM 75. For this
purpose, place the cable shoe on the pin in the middle of the connecting bush.
Tune in to a station and place the antenna in the position where the best and clearest
signal is received. If the signal quality is not satisfactory, an outdoor antenna may be
required.
FM cable connection
If you have cable television, the cable network radio connection may also be connected to this bushing.
Use a 75 Ohm antenna cable for this purpose.
75 Ohm Antenna cable
