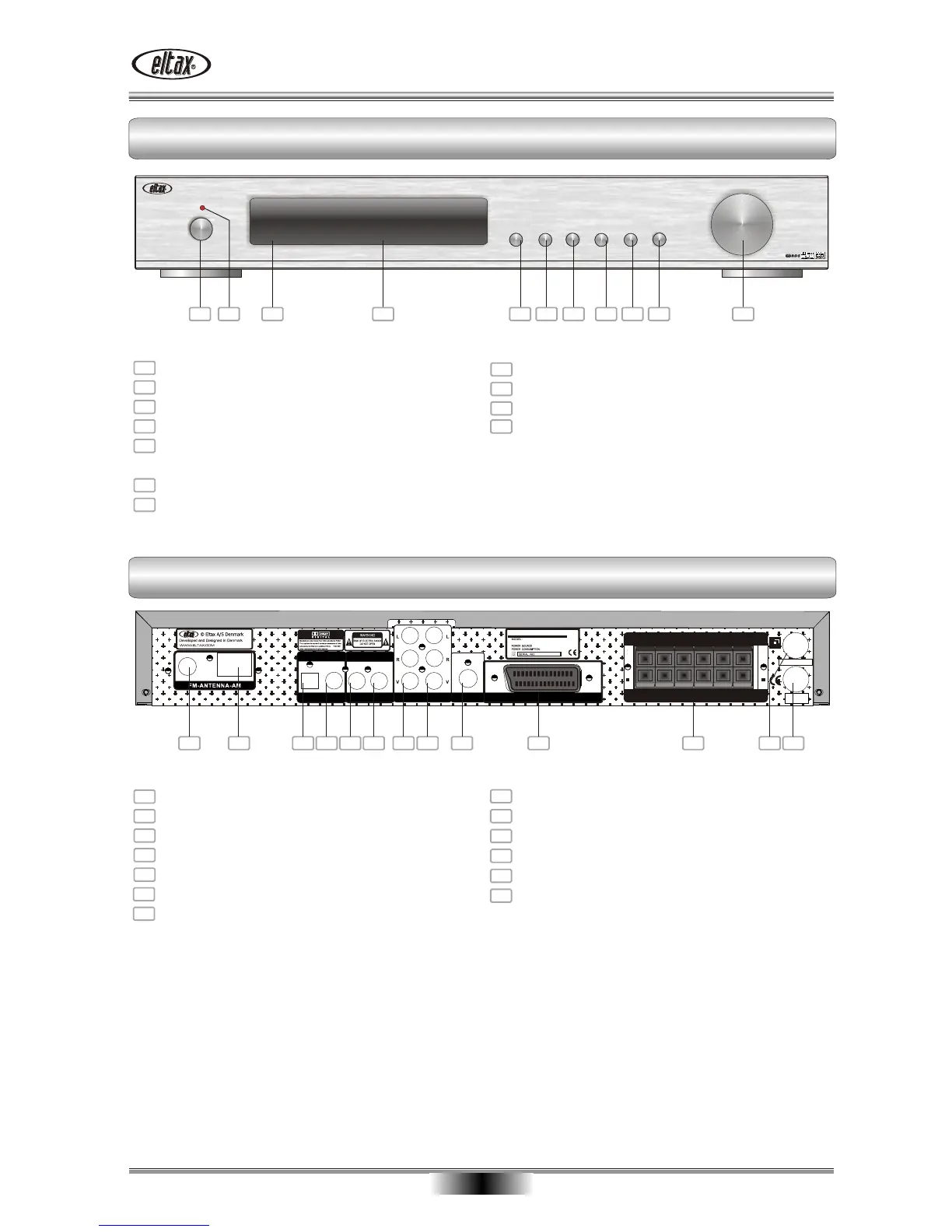

FRONT PANEL AND CONNECTIONS
Front panel
Connections
POWER On/Off
Standby LED
Remotecontrol sensor
Display
Mode (Dolby Digital, DTS, PL II
Movie, PL II Music, Stereo)
DSP Program
Input
Balance
Tuning
Band
Multijog
FM Antenna input
AM Antenna input
Optical input
Composite video input (for optical in)
Coaxial input
Composite video input (for coaxial in)
AUX 1 analog input
AUX 2 analog input
Active subwoofer output
SCART input/output
6 x speaker output
Fuse
Main power
SPEAKER OUTPUT TERMINAL
SR
SW
SL
SR
CEN.
FL
FUSE T 1A
R
220-240V
~50/60Hz
220-240V
~50/60Hz
ITEM NR.:
AV RECEIVER
220-240V~ 50/60Hz
AVR-280
11040.01
200W MAX
OPT. VIDEO
COAX
VIDEO
AUX 1
AUX 2
SUB
SCART IN/OUT
DIGITAL DIGITAL
1 2 3 4 5 6 7 8 9 11 12 1310
11
