Primary Switch Mode Rectifier
PSS30
User manual
Page 16 (28)
Eltek Valere Industrial ©2008 UM_PSS30_E_R00
7. Operation elements and connectors

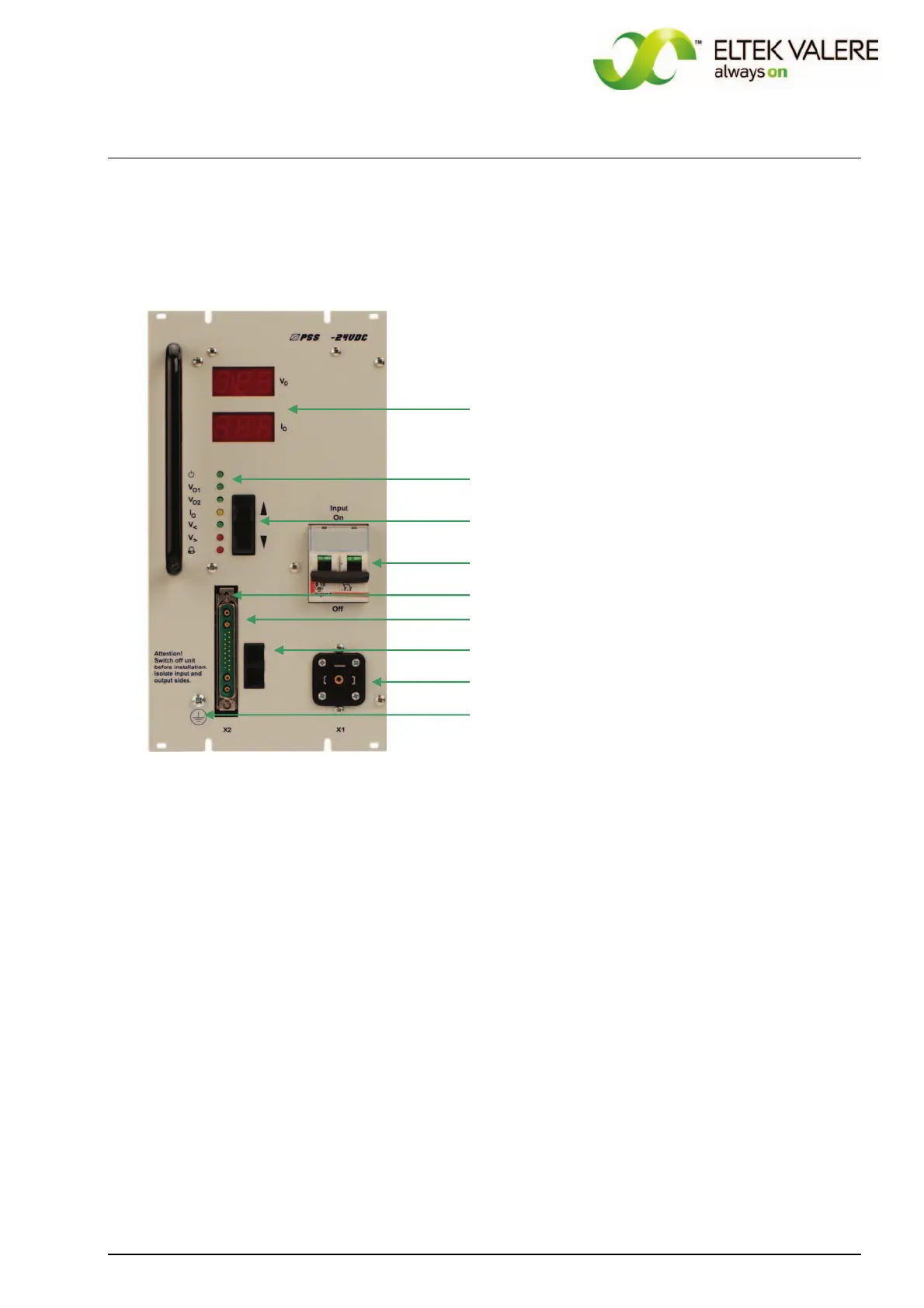

7.1 Front view/Operation elements 24/48/60/108V version
Digital display for output voltage and -current/
indication of the parameters and related values in
the adjustment mode
LED indicators
Adjustment keys „UP“ and „DOWN“
Input-side fuse; ON-/OFF switch
Locking slide for the DC connector
DC connector X2 (& signals)
Two CAN-Bus connectors (RJ11, 6-pole)
Mains connector X1
PE connector (M4 bolt)
