BA-en-3031-2004_KNH35 13
3.4 Charging bars suitable for connection
The following charging bars are suitable for connecting to the KNH34 high
voltage generator:
• R23ATR point charging bar
• Charging bars R130A/R131A,
• Charging bars R120/R121A (note voltage limitation acc. to Operating
Instructions R120/R121A).
The KNHV3 distributor box, available as an optional extra, allows the user
to increase the number of bars connected. When using this option make
sure that the sum of the bar currents does not exceed 5 mA.
1 Generator KNH35
2 Distributor box KNHV3
3 High voltage cable
4 Charging bars
Example:
Current per meter of active bar length: 1 mA
Sum of active bar lengths: 2 m
=> maximum total current: 2 mA

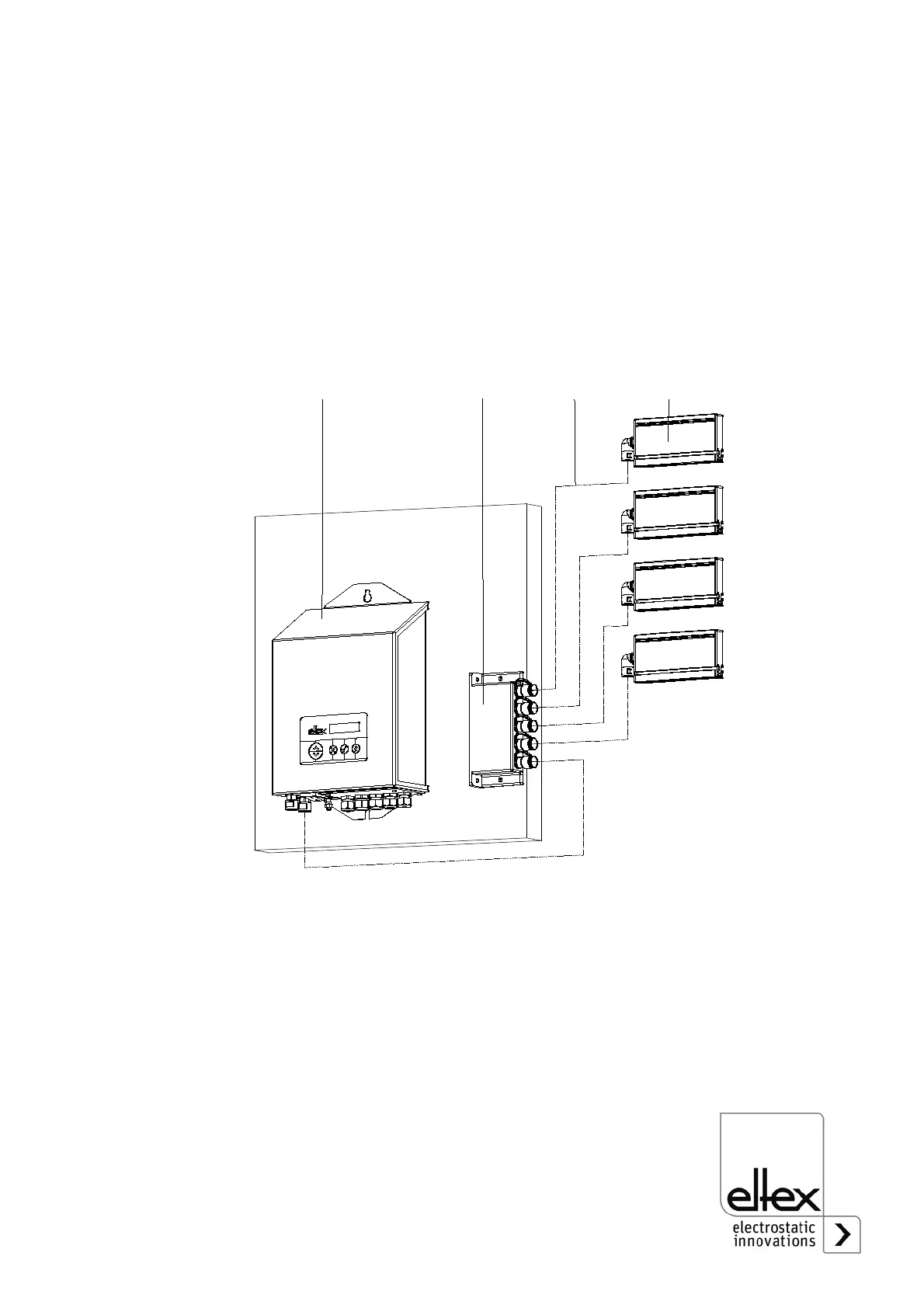

Fig. 4:
Installing the
generator, the
distributor box and
the charging bars
Z01036y
