A. Annex
A.1 Assembly instructions Plug connectors
Analog interface
• Push the adapter (1), the union nut (2) and the sealing element (4) with
the gasket (3) onto the cable .
• Strip the external sheath by 23 mm.
• Detail A: Push back the braided screen such that it stands out at 90°.
With a rotation motion, push the shielded sleeve (5) over the foil or cot-
ton braiding and under the braided screen. Cut the braided screen flush
with the external diameter of the shielded sleeve (5).
• Trim the foil, wadding and inner insulation.
• Strip the litz wires by 3.5 mm, twist (and tin plate).
• Solder, crimp and screw the litz wires to the contacts.
• Insert the spacer sleeve (6)
• Guide the insert (7) and spacer sleeve (6) into the insert sleeve (8),
taking care that the desired coding groove of the insert (7) is introduced
into the bar.
• Press in the cable with the shield and sealing unit.
• Screw the adapter (1) as tight as pssoble.

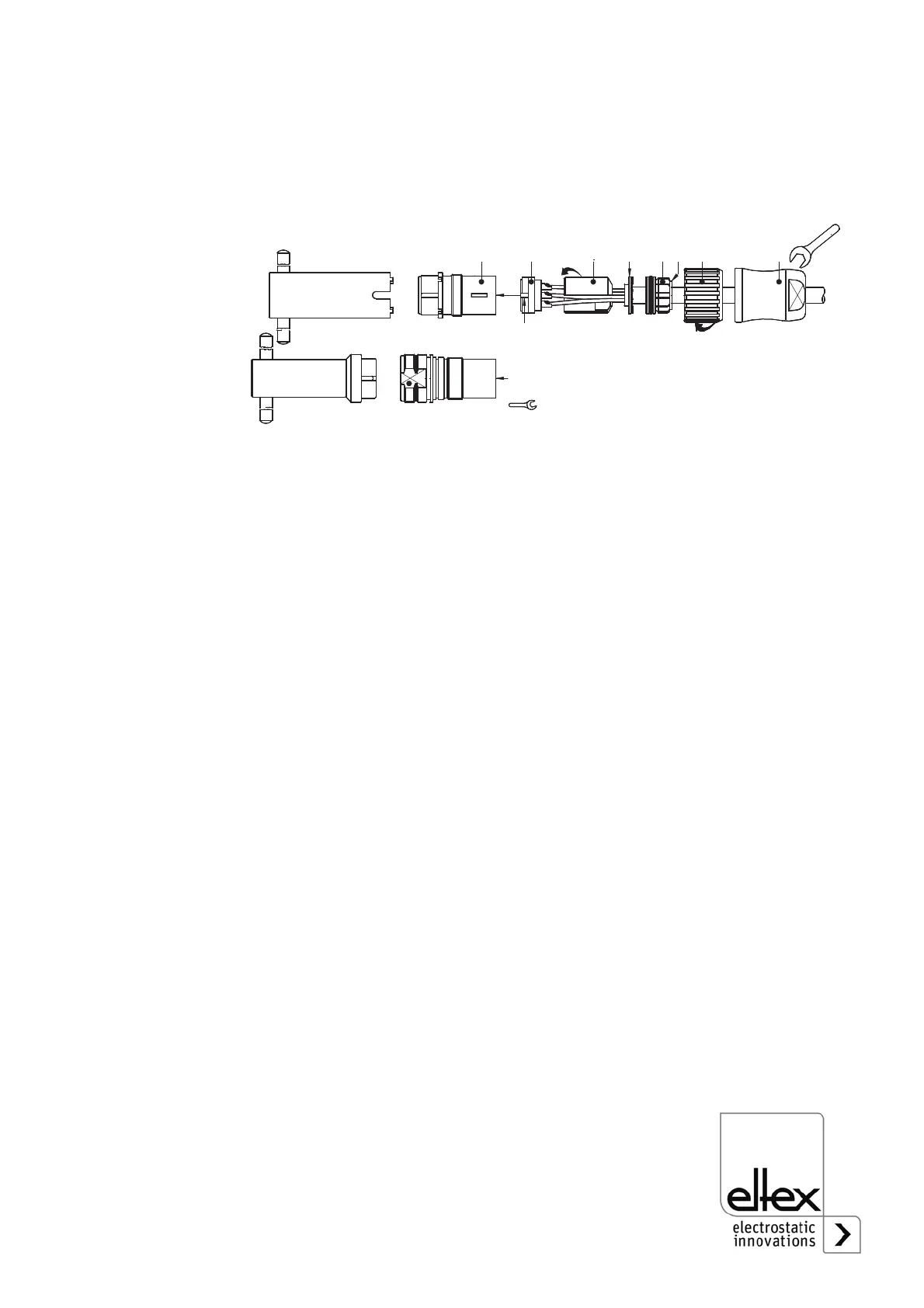

Fig. 22:
Sleeve Connec-
tors and Cable
Connecting
Receptacles,
Straight, Shielded
Z00572y
8 7 6 5 4 3 2 1
Codiernut
Coding groove
