NTU Optical Network Terminals 13
NTU-RG-1402G-W
up to 15 W
Operating temperature range
from +5 to +40°С
Relative humidity
up to 80 %
Dimensions
NTU-2V
122×96×24 mm
NTU-2VC
151×107×24 mm
NTU-2W
147×110×24 mm
NTU-RG-1402G-W
187X120x32 mm
Weight
NTU-2V
0.250 kg
NTU-2VC
0.265 kg
NTU-2W
0.250 kg
NTU-RG-1402G-W
0.3 kg
2.5 Design
2.5.1 NTU-2V
NTU-2V devices are designed as 122×96×32 mm desktop device in a plastic housing.

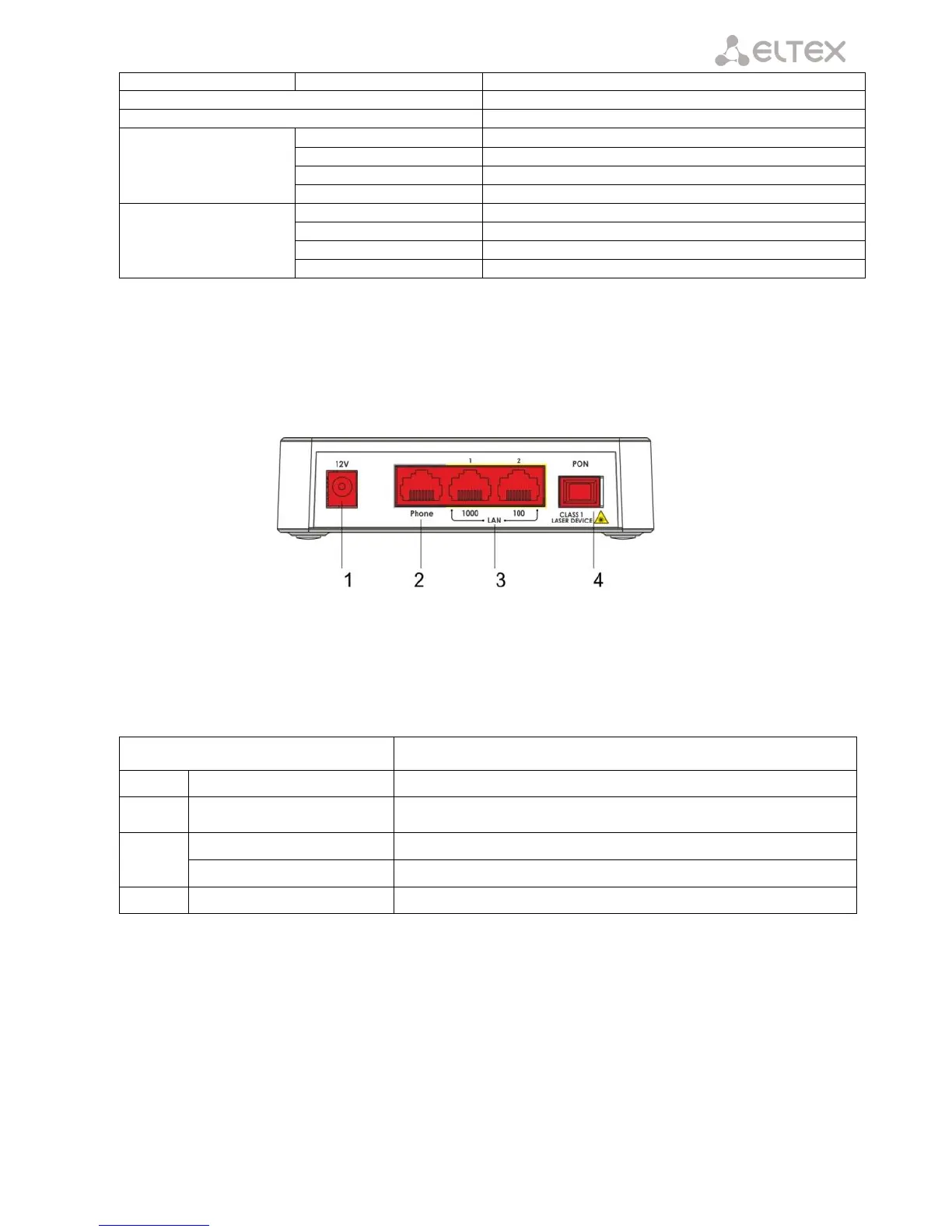

The figure 4 shows the NTU-2V rear panel layout.
Fig. 4—NTU-2V Rear Panel
The connectors and controls located on the rear panel of NTU-2V are shown in the table .
Table 3—Description of the LEDs and Controls Located on the Rear Panel
Rear Panel Element
Description
1
12V
Power adapter connector
2
Phone
RJ-11 connector for analogue phone connection
3
LAN 1000
RJ-45 10/100/1000Base-T port for connection of network devices
LAN 100
RJ-45 100Base-TX port for connection of network devices
4
PON
SC port (socket) for connection to PON with GPON interface
