NTU Optical Network Terminals 19

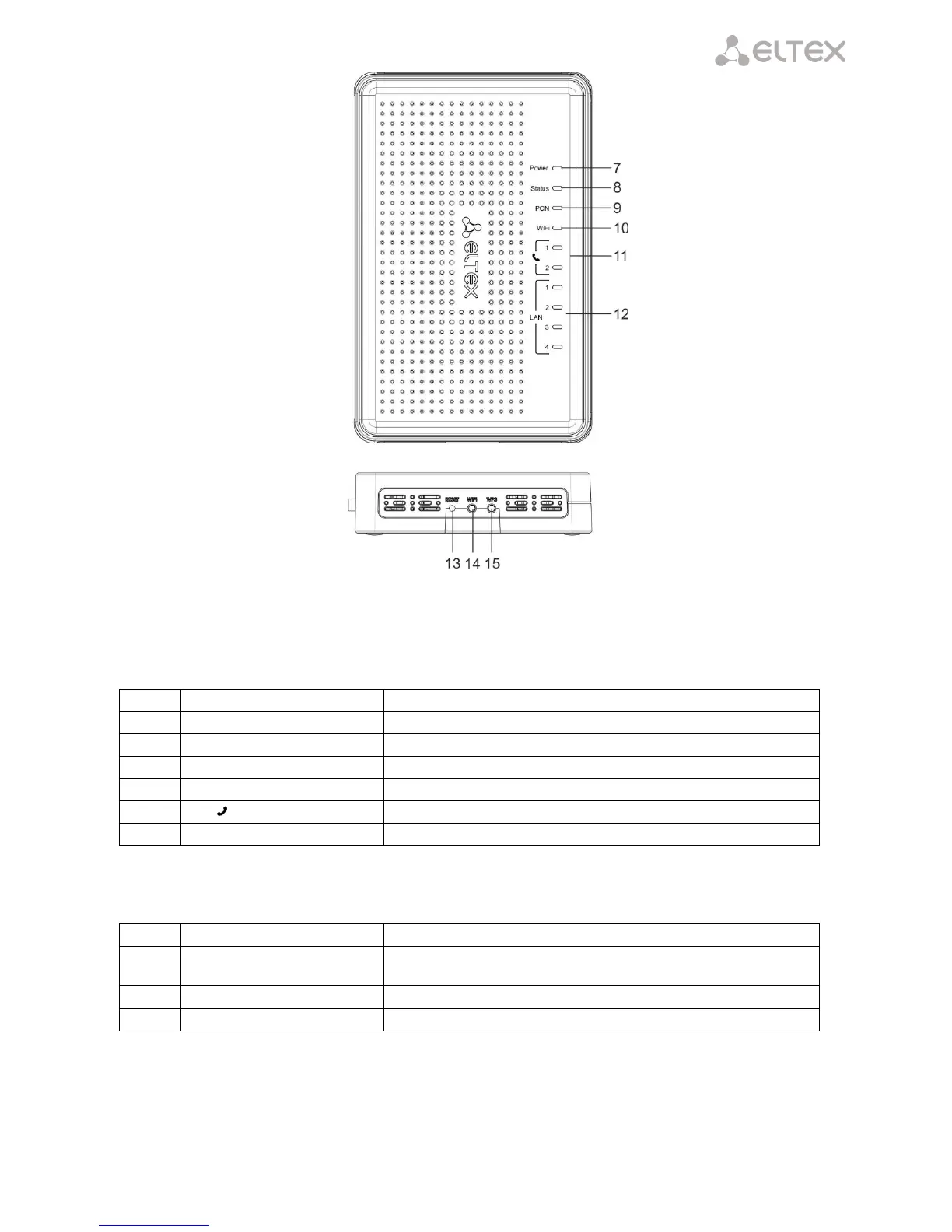

Fig. 11—NTU-RG-1402G-W side and top panels
See table 11 for detailed information about LED indicators located on the top panel of the device.
Table 11 – Description of front panel LED indicators
№
Top Panel Element
Description
7
Power
Device power and activity status indicator
8
Status
Device authentication indicator
9
PON
Optical interface indicator
10
Wi-Fi
Wi-Fi activity indicator
11
1..2
FXP port activity indicators
12
LAN 1..4
Ethernet ports activity indicators
See table 12 for detailed information about LEDs located on the top panel of the device.
Table 12 – Description of front panel LED indicators
№
Side Panel Element
Description
13
Reset
a functional key that reboots the device and resets it to the factory
settings
14
Wi-Fi:
Wi-Fi enabling/disabling button
15
WPS
a button which enables automatic secure Wi-Fi connection
2.6 Light Indication
2.6.1 NTU-2V
The LED indicators located on the front panel show the current state of the device.
