NTU Optical Network Terminals 61
– Volumename – device name;
– FileSystem – file system type;
– Total Space – total space;
– Used Space – used space;
– Unmount – a button for device safe disconnection or connection.

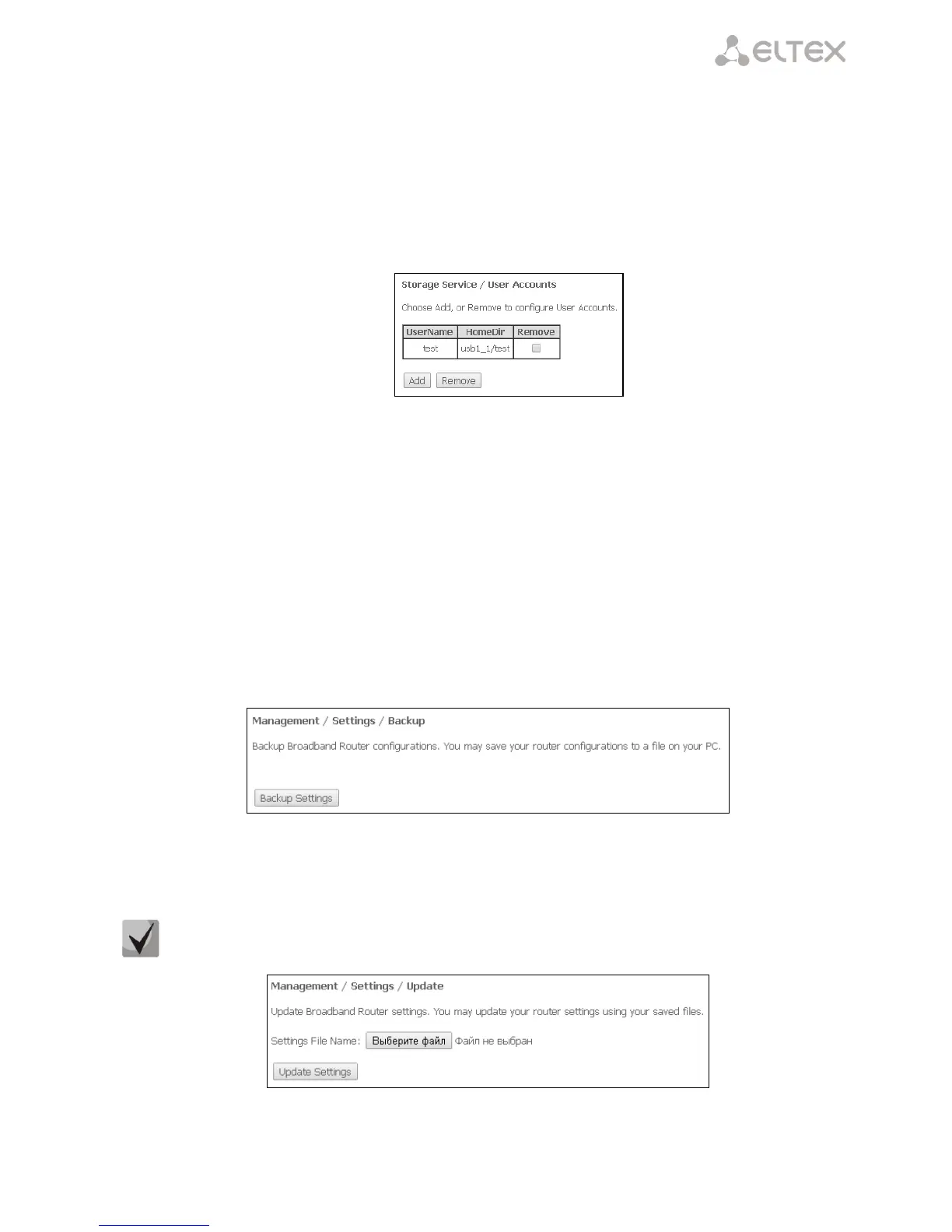

4.5.2 User Accounts submenu. Configuration of Samba users
Use the menu to configure Samba accounts.
Click Add button to add a record. To remove a record, select the checkbox in front of the required record
in the Remove column and click Remove button.
– Username – username to access a network resource;
– Password – password to access a network resource;
– Confirm Password – access password confirmation;
– VolumeName – path to the network resource (name of the connected storage is displayed in the Storage
Device Info tab).
4.6 The Management menu. Device Management
4.6.1 The Setting submenu. Settings
4.6.1.1. The Backup submenu. Backup
Use the Backup Settings button in this menu to download configuration to a PC.
4.6.1.2. The Update submenu. Configuration Update
To update configuration, select a configuration file in the Settings File Name field (use the Choose a File or
Browse buttons) and click Update Settings.
Do not switch off or reboot the device during the update. The process may take several minutes. The
device will be automatically rebooted when the update is completed.
