ELTEX TAU-8.IP - Design; Front Panel of the Device; Back Panel of the Device

16 VoIP Subscriber Gateways
1.6 Design
TAU-4.IP and TAU-8.IP subscriber terminals are enclosed into 218х120х49 mm plastic housing.
1.6.1 Front panel of the device

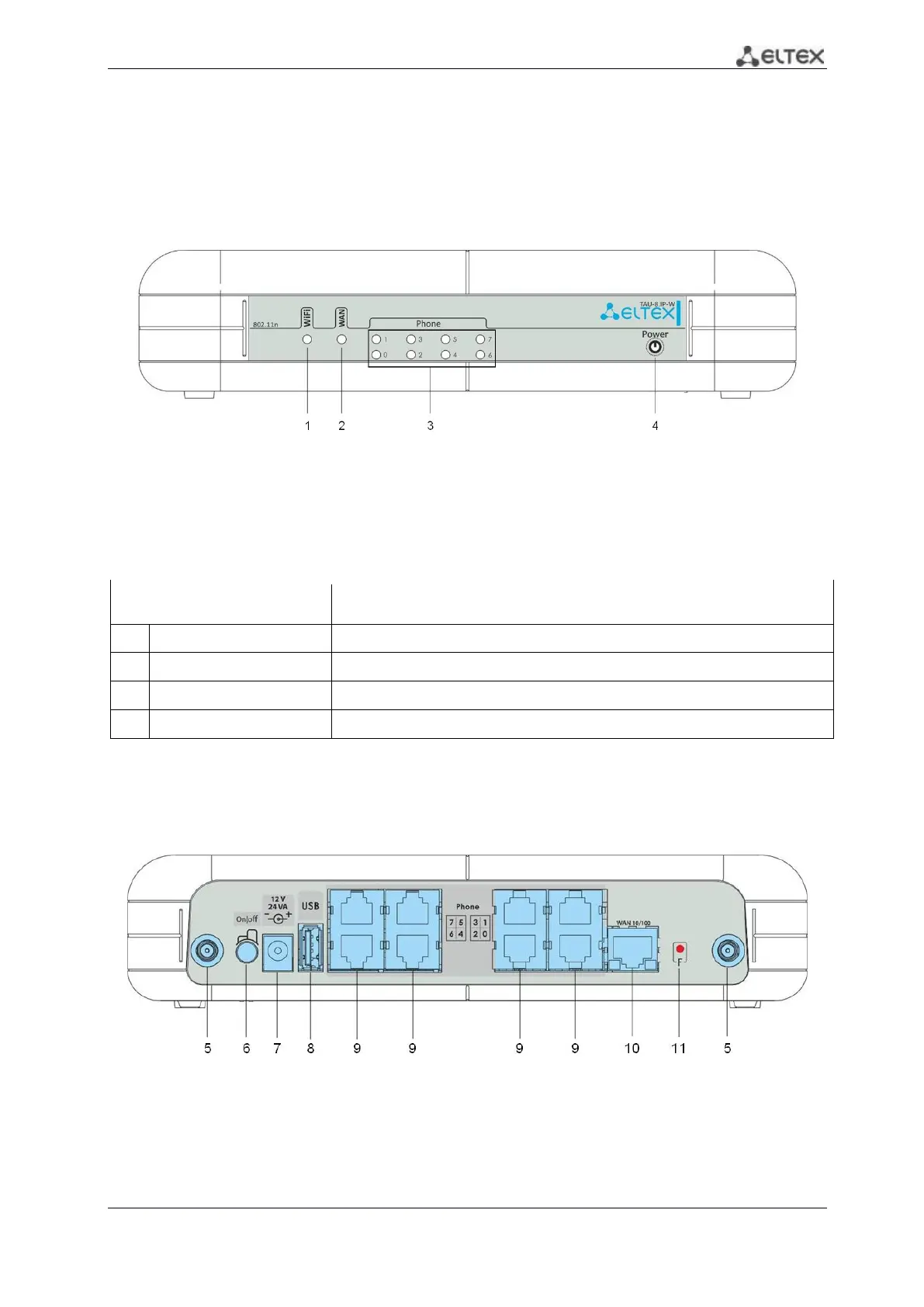

The front panel of device is shown in Fig. 4.
Fig. 4 - TAU-8.IP-W front panel
LEDs and controls located on the front panel are listed in Table 3.
Table 3 – Description of LEDs and controls located on the front panel
Rear panel element
Description
1
WiFi
4
Operation indicator for wireless network
2
WAN
WAN interface indicator
3
Phone
Analogue phone indicator
4
Power
Device power and activity status indicator
1.6.2 Back panel of the device
The back panel layout of the device is shown in Figure 5.
Fig. 5 - TAU-8.IP-W back panel appearance
_______________________________________
4
For TAU-8.IP-W only
