172

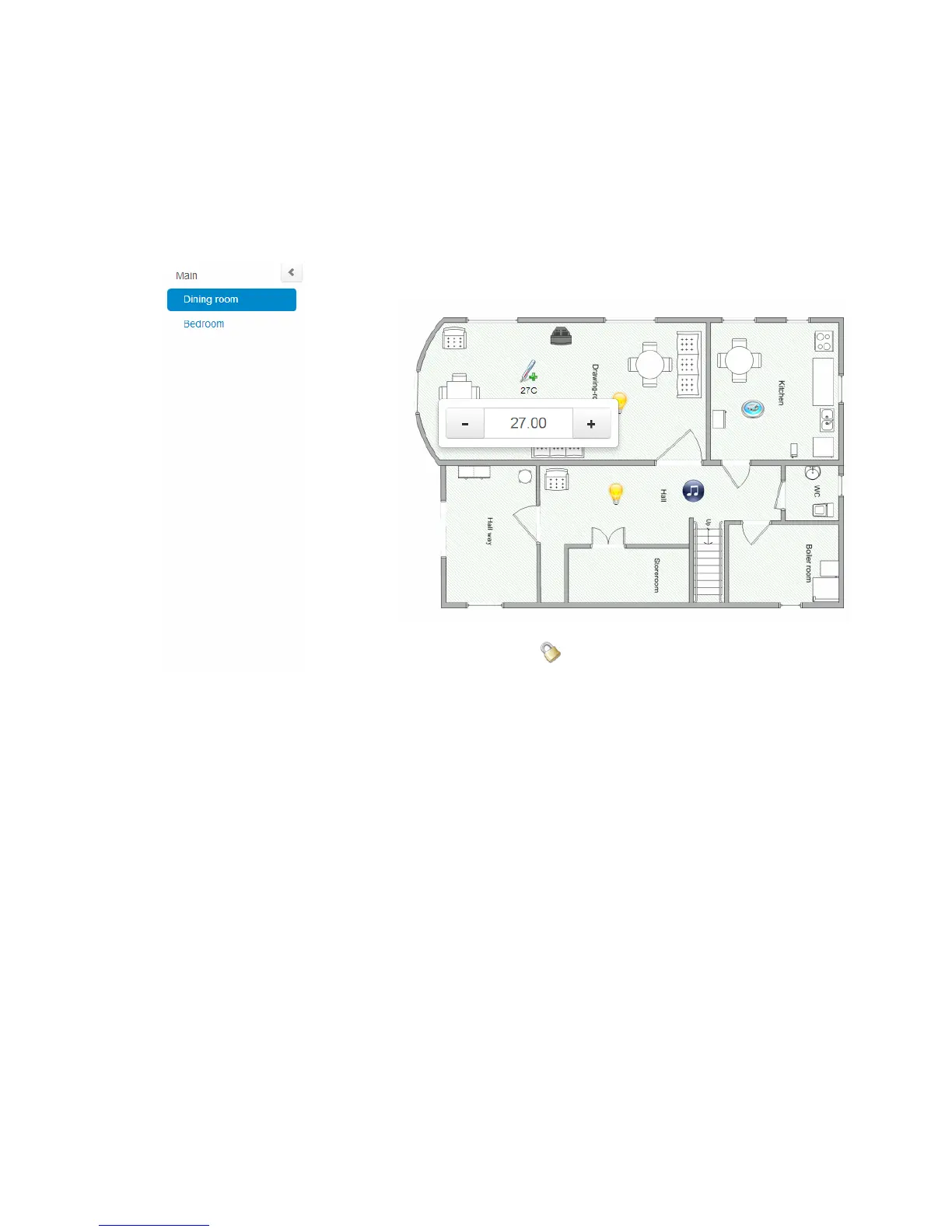

7. User mode visualization

User mode visualization contains created visualization maps. A password and users to access

specific visualization maps can be created in Logic Machine --> User access
