194

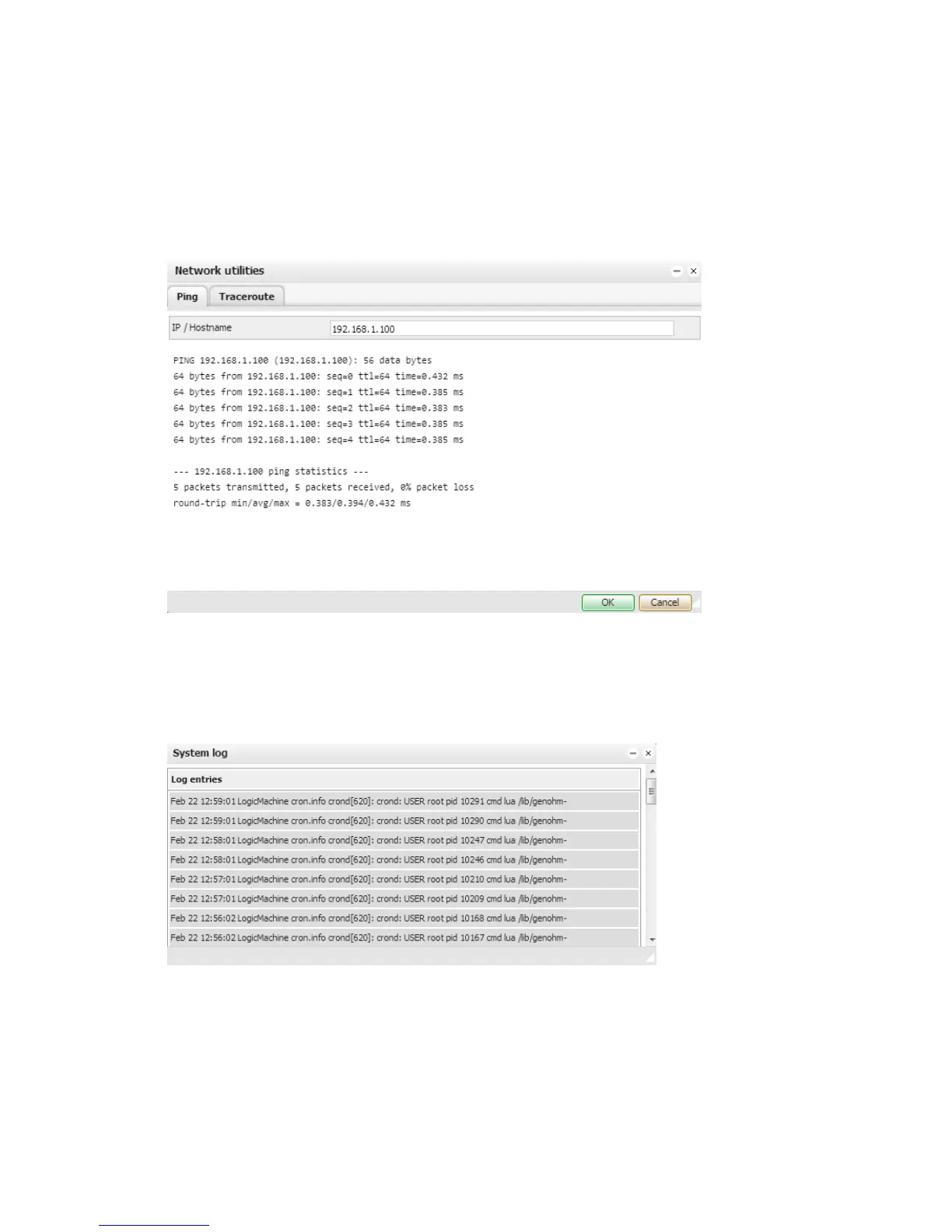

9.21.
Network utilities
Ping
and
Traceroute
utilities are located in
Status
Network utilities
window. Both IP address
and DNS names are accepted.
9.22.
System log
Operating system log is available in
Status
System log
.
193
195
