14. DALI configuration
LogicMachine5 Reactor GSM support DALI over RS485 gateway. We recommend to connect no
more than 32 ballasts to one DALI line.
 Scan gateways - scans for currently connected gateways, address mapping for missing
devices is deleted automatically
 Write ID - allows setting a unique address for each gateway

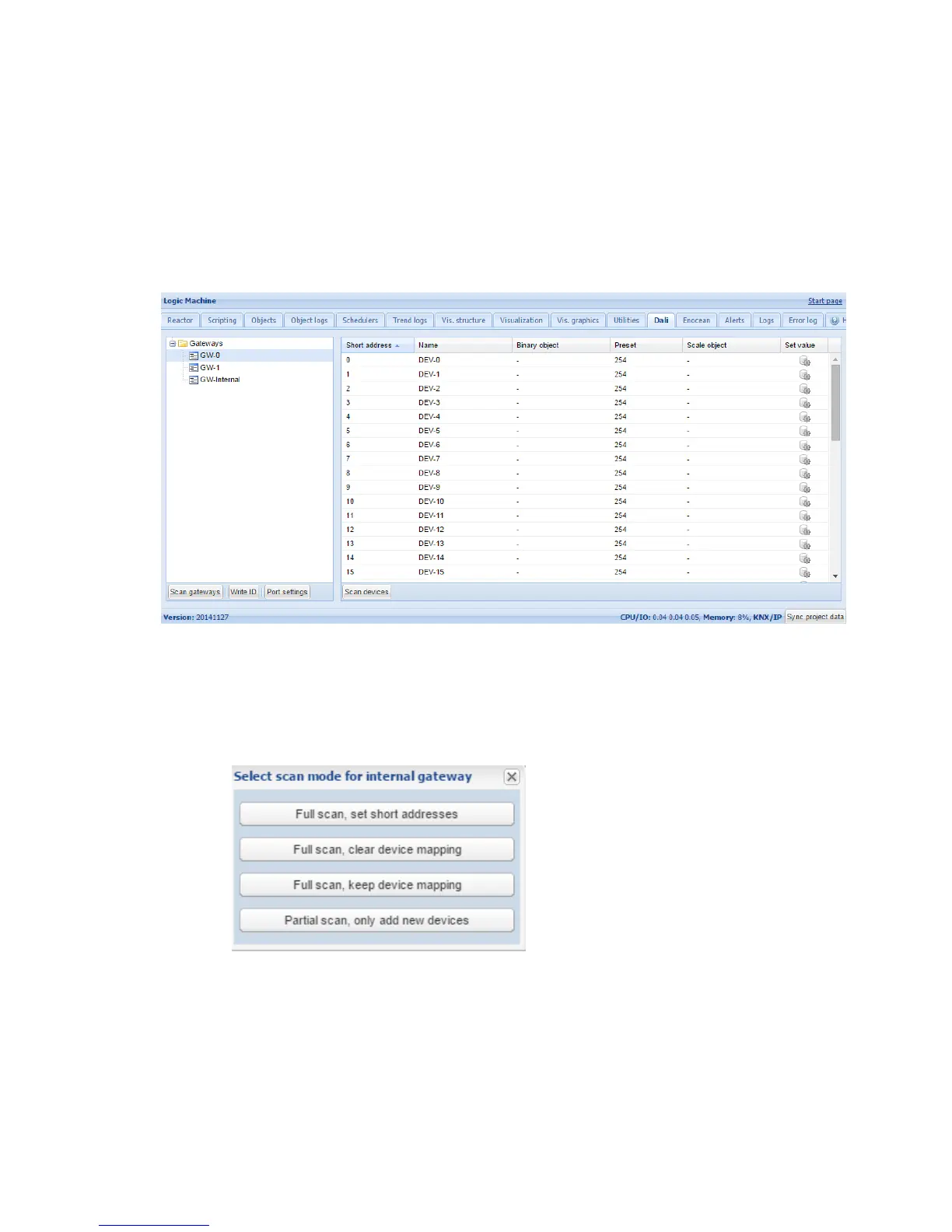

 Scan devices - scans for currently connected DALI devices to the selected gateway.
There is one of 4 options to choose from.
Full scan, set short addresses - scans for currently connected DALI devices to the
selected gateway, assigns short address automatically starting from 0,1,2,...
Full scan, clear device mapping - scans for currently connected DALI devices to the
selected gateway without assigning short addresses, clear KNX grp address mapping to
devices
Full scan, keep device mapping - scans for currently connected DALI devices to the
selected gateway without assigning short addresses, keeps device mapping to KNX grp
addresses
