193

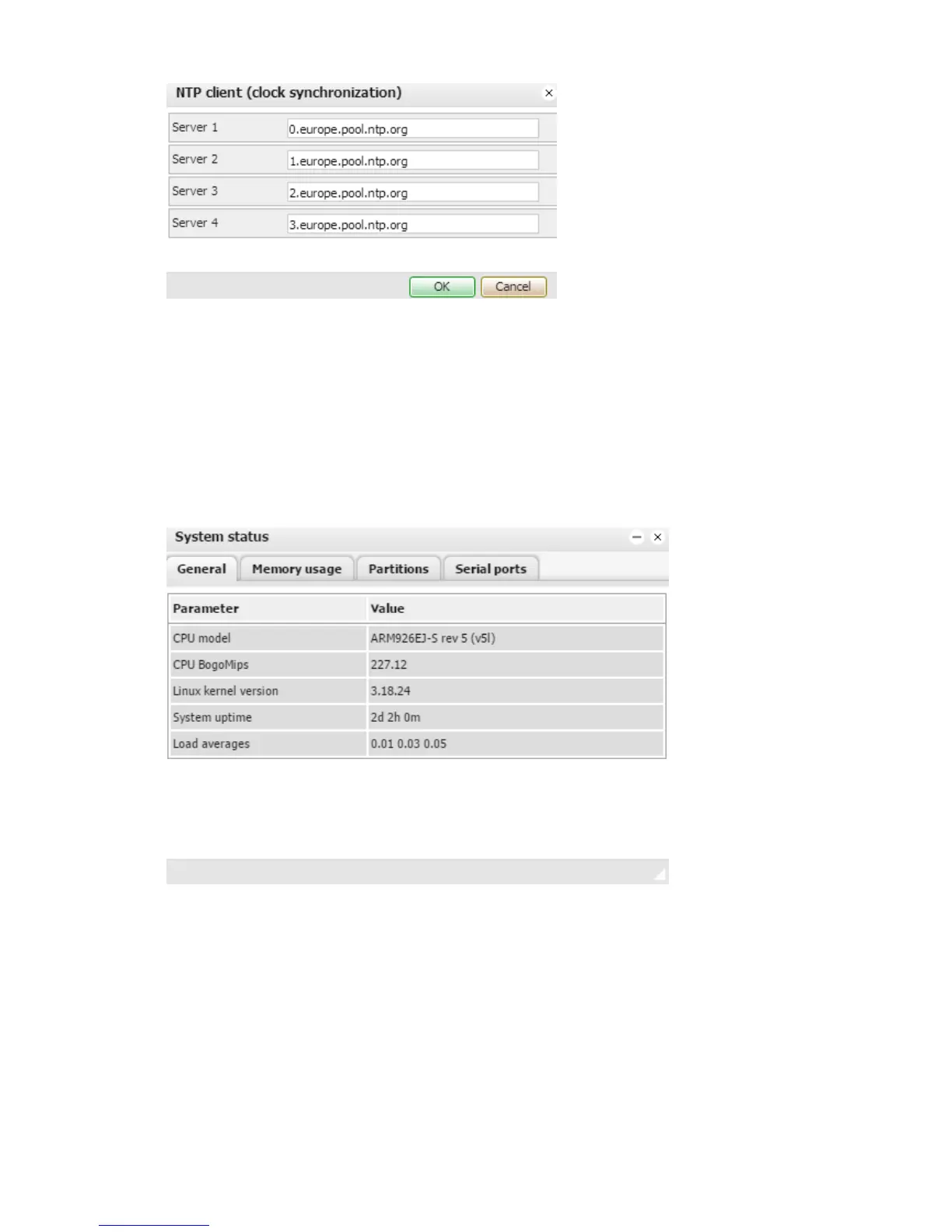

9.20. System status

General system status with CPU usage, Memory usage, Partition, Serial ports information can

be seen in Status



System status window.
