278

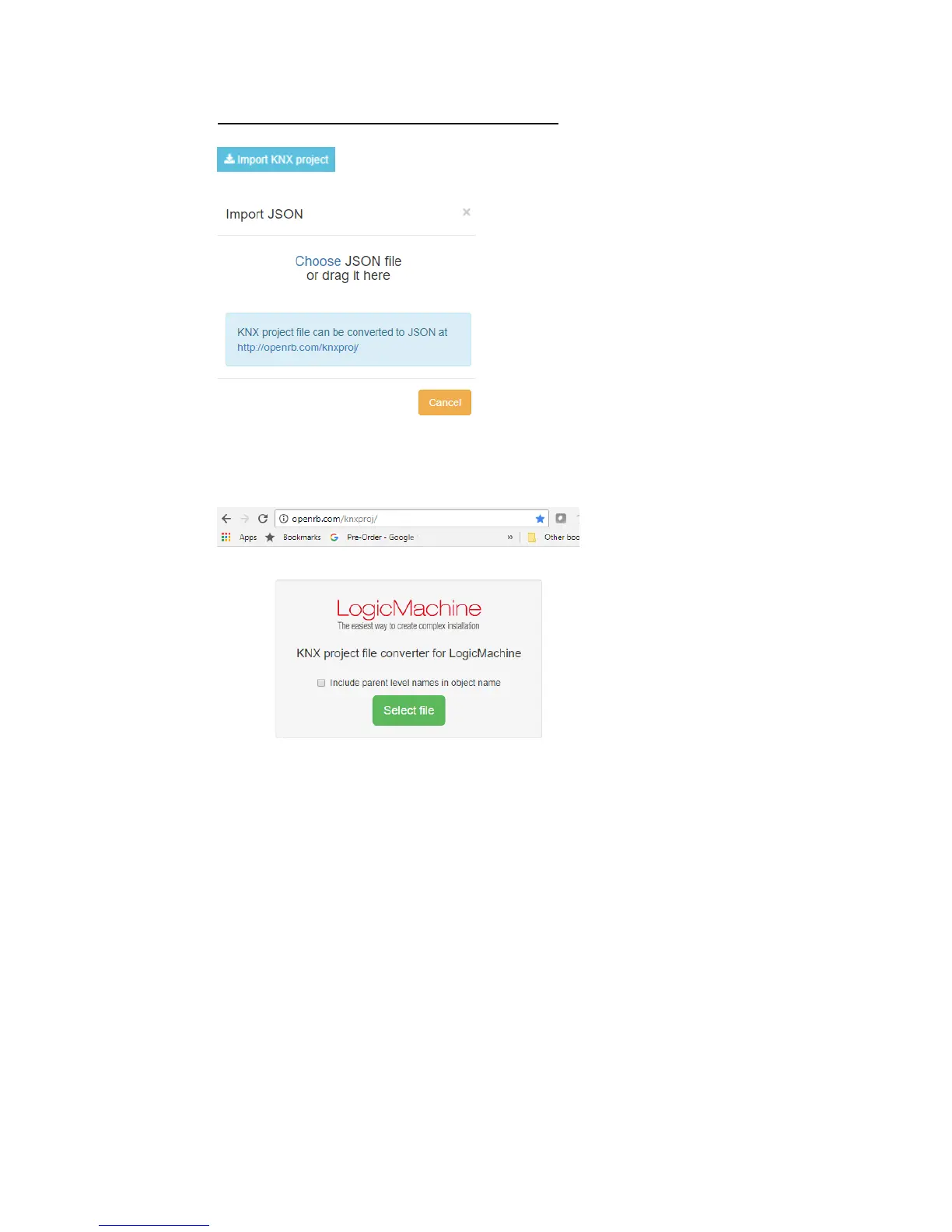

Importing group addresses from ETS project file

button allows to import KNX project file.

Prior to importing, ETS project file need to be converted to JSON file using this online

utility
