83

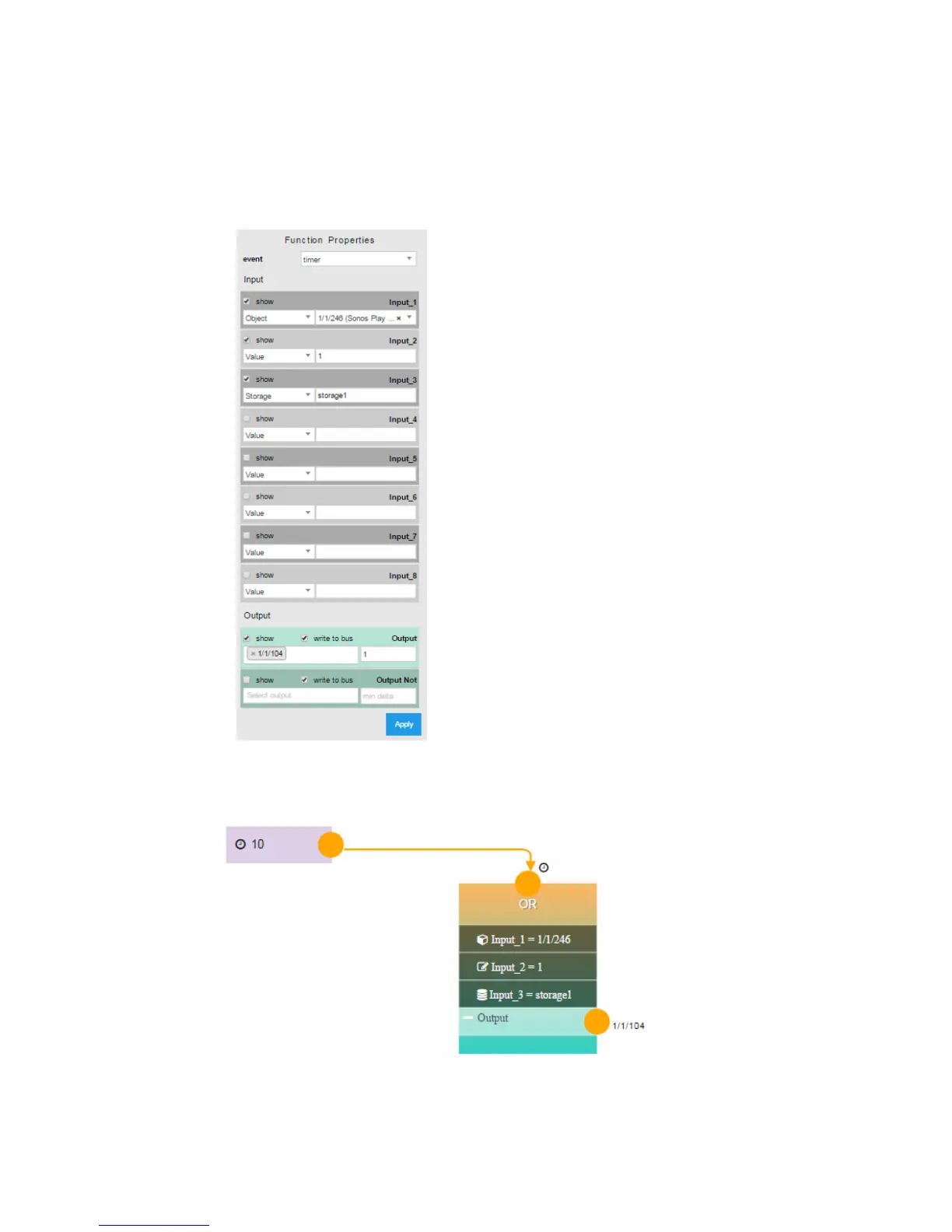

Add timer function block
Timer block represent old IEC61131(cyclic execution) standard.
Select required block and set event to TIMER
Set block properties as required and press apply.
Select Timer from Event Elements and link output to timer input of your block
