CHAPTER 3. INSTALLATION 28
3.2 Electrical Installation
In single-phase installations, the line phase wire must be protected by a circuit
breaker. Furthermore, the line phase wire must be connected to the phase input
connector of the inverter and the line neutral to the neutral input connector of the
inverter.
;

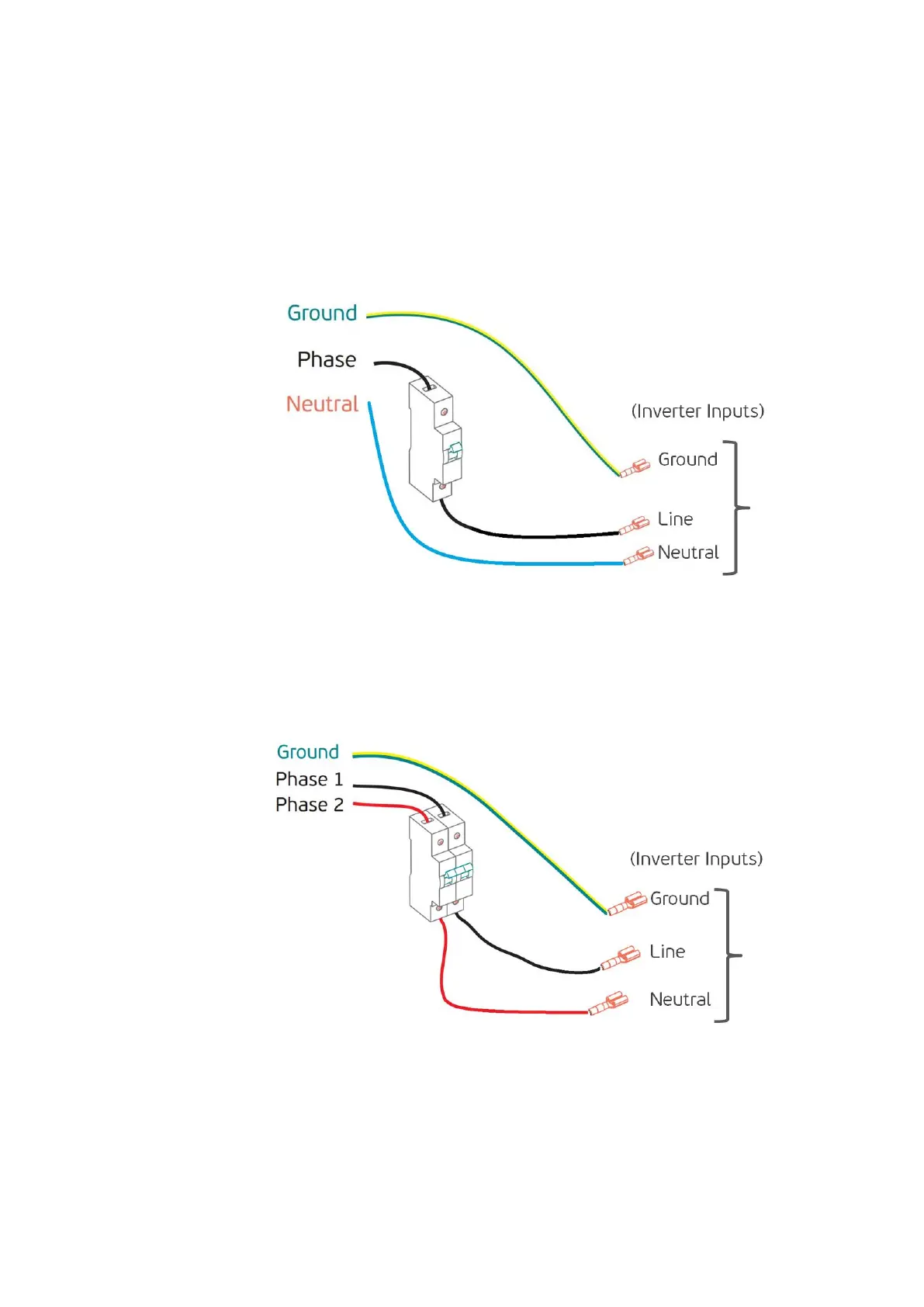

Figure 3.14: Phase-Neutral connection
In the case of two-phase installations, it is mandatory to use a 2-pole circuit breaker,
because in case of a short circuit both phases of power supply are protected.
;
Figure 3.15: Phase-Phase connection
