CHAPTER 2. TECHNICAL SPECIFICATIONS 11
2.3 Inverter enclosure
2.3.1 Product dimensions
199.5
170.2
119.5
39
100.4
160
128.40.5
0.5
110.2

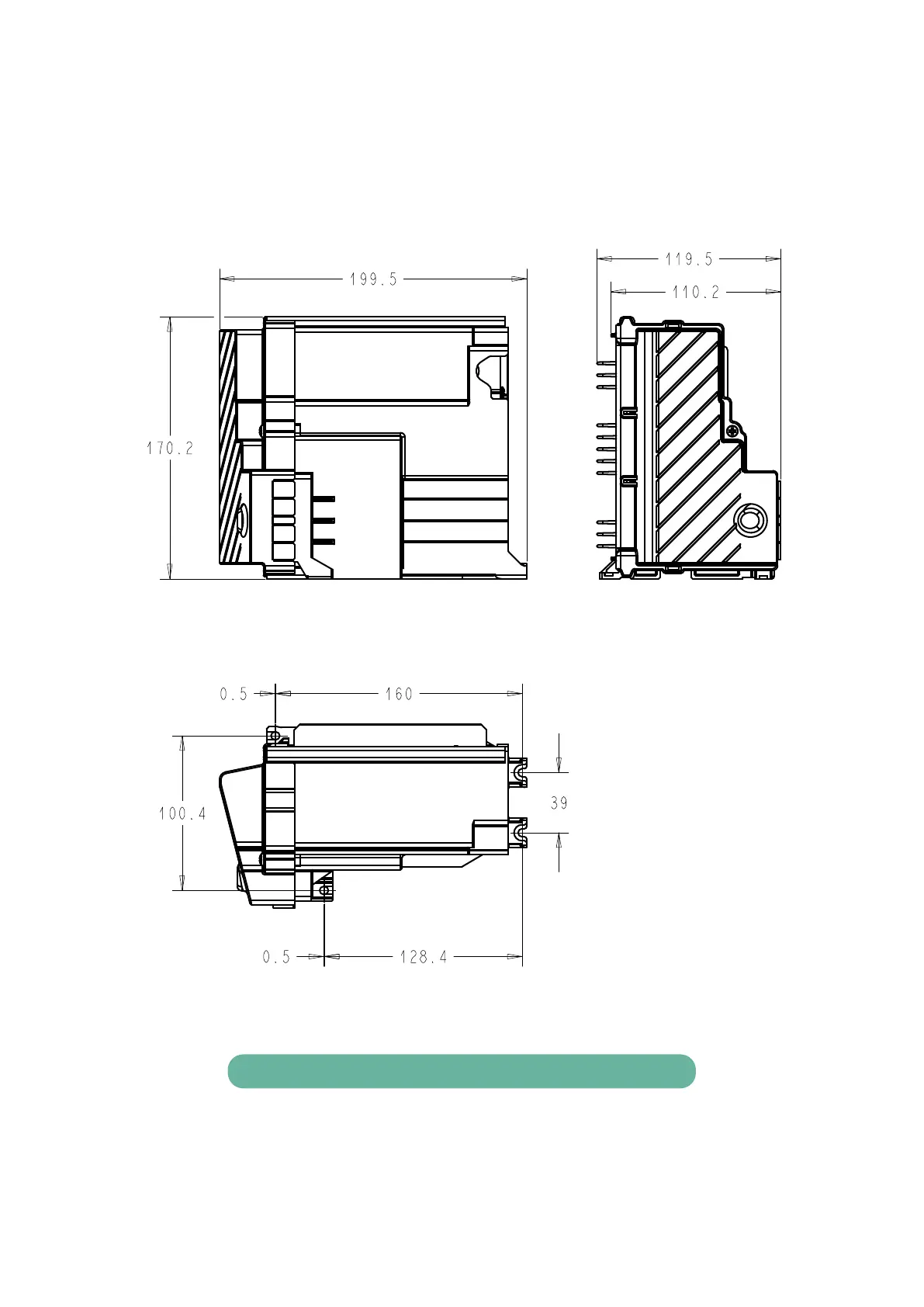

Figure 2.1: Stand alone dimensions
Stand alone dimensions
Dimensions 170,2 mm x 199,5 mm x 119,5 mm
2.3.2 Connectors
This section presents the available connectors of Fullmotion CF10C Inverter, as well
as their propper connections. The nal enclosure without plastic cover is presented
