CHAPTER 2. TECHNICAL SPECIFICATIONS 12
to improve understanding. The manufacturer part number of each connector can
be found in the following table.
1 2
4
3
5
6
7

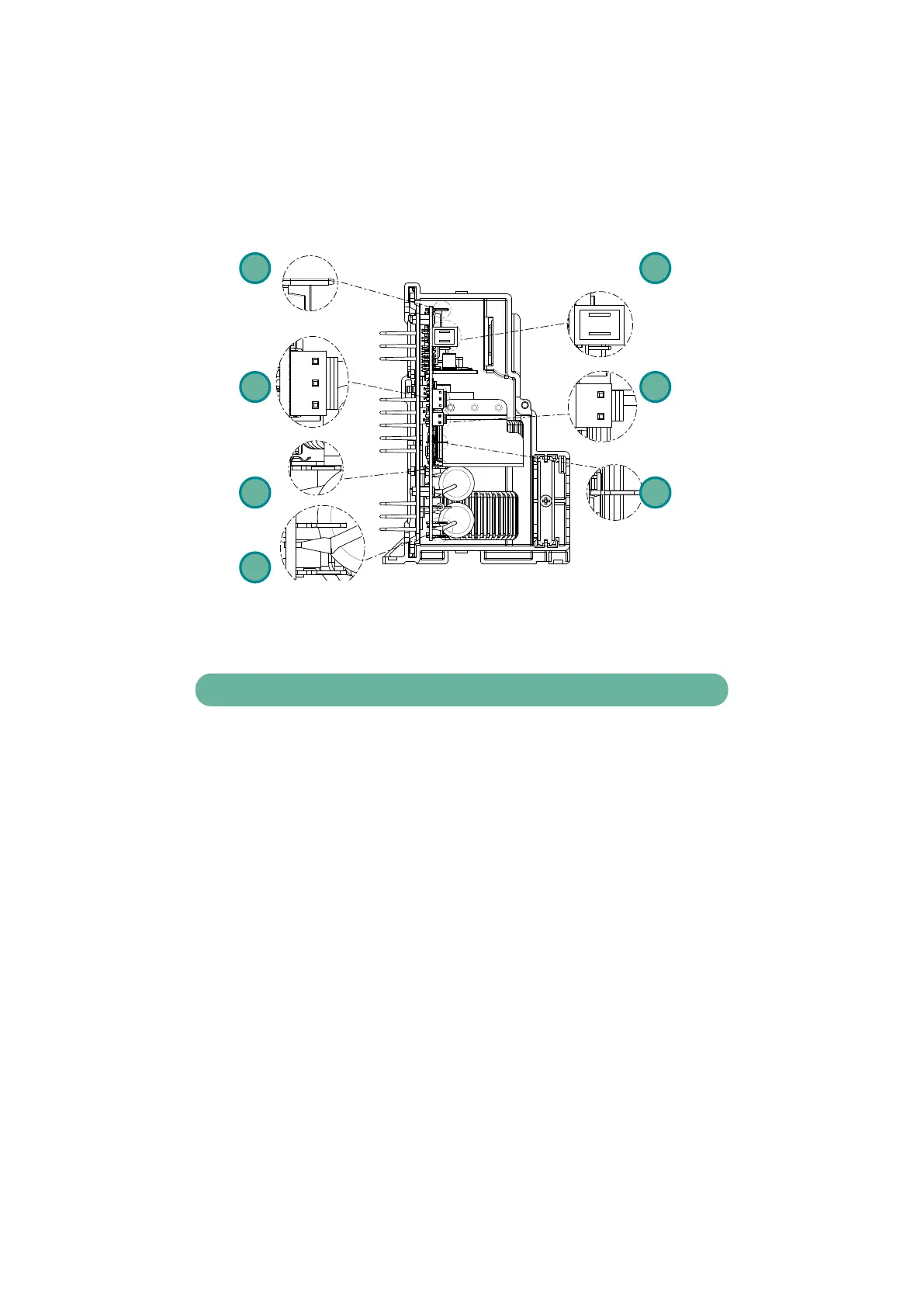

Figure 2.2: Connectors
Connectors part numbers
Indicator Description Part number Insulation
1
Serial
Communication
S3P-VH (LF)
(SN)
Reinforced
2 Frequency input
S2P-VH (LF)
(SN)
Reinforced
3 Drop in 1217754-1 Functional
4 AC input (L+N) 1217754-1 Functional
5 AC Fan*
MSLO 9402 -
002 - 00A - 960
- 000 - 00
–
6
Additional Drop
in (optional)
1217754-1 Functional
7 Safety Earth 63849-1 Basic
*Mates with 1/4” faston receptacle. Fan connector assemble is optional.
