CHAPTER 2. TECHNICAL SPECIFICATIONS 13

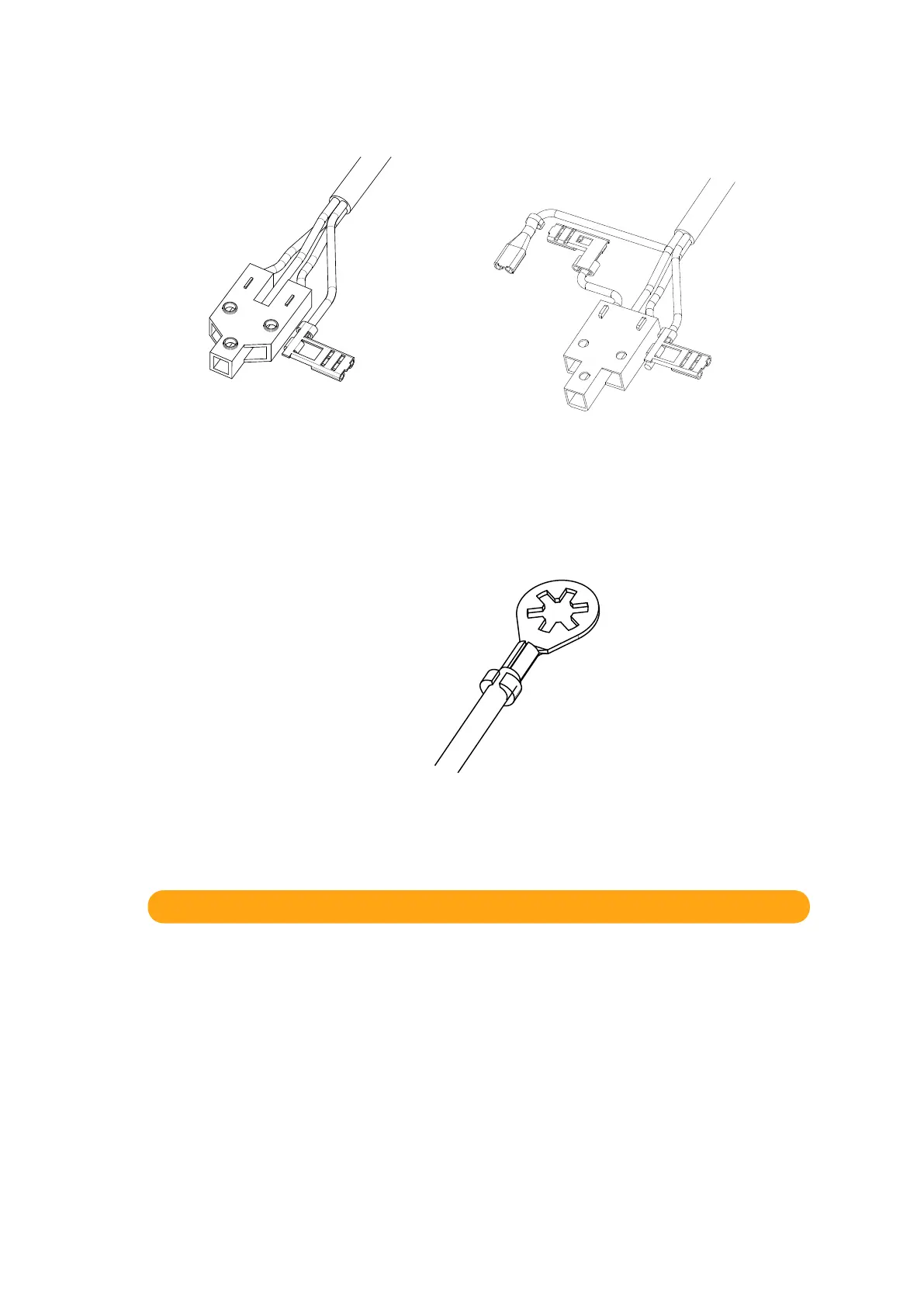

Figure 2.3: Motor cable for
VEG and FMF compressor
series
Figure 2.4: Motor cable for VNE
compressor series with OLP
Figure 2.5: EMI Earth and
Safety Earth Cable
Cable Specication
Indicator Description Part Specication Color
Figure 2.3
Standard
Motor Cable
UL STYLE 2586 105°C 600 V
Black, Blue and
Brown
Figure 2.4
Motor Cable
With OLP
UL STYLE 2586 105°C 600 V
Black, Blue and
Brown
Figure 2.5
Safety Earth
Cable
UL STYLE 1015 105°C 600 V Green/Yellow
Figure 2.5
EMI Earth
Cable
UL STYLE 1015 105°C 600 V White
Inside the inverter enclosure, the compressor motor and Earth cables must be con-
nected as shown in Figure 2.6. Earth cables shall always be connected rst to avoid
ESD.
