Embraco Fullmotion CF10C - VEG and FMF Compressor Cable Connection

CHAPTER 3. INSTALLATION 17
The Fullmotion CF10C Inverter comprises three basic elements:
1. Plastic body;
2. Electronic board;
3. Plastic cover;
4. Heat sink.
CF10C inverter is compatible with three compressor’s family. Subsection 3.1.1 de-
scribes the compressor cable connection for VEG and FMF series, while subsection
3.1.2 the cable connection for VNE compressor series.
3.1.1 VEG and FMF compressor cable connection
To connect the inverter to the compressor, attach the motor cable on the hermetic
compressor terminal, as shown in Figure 3.2 and Figure 3.3
*
.

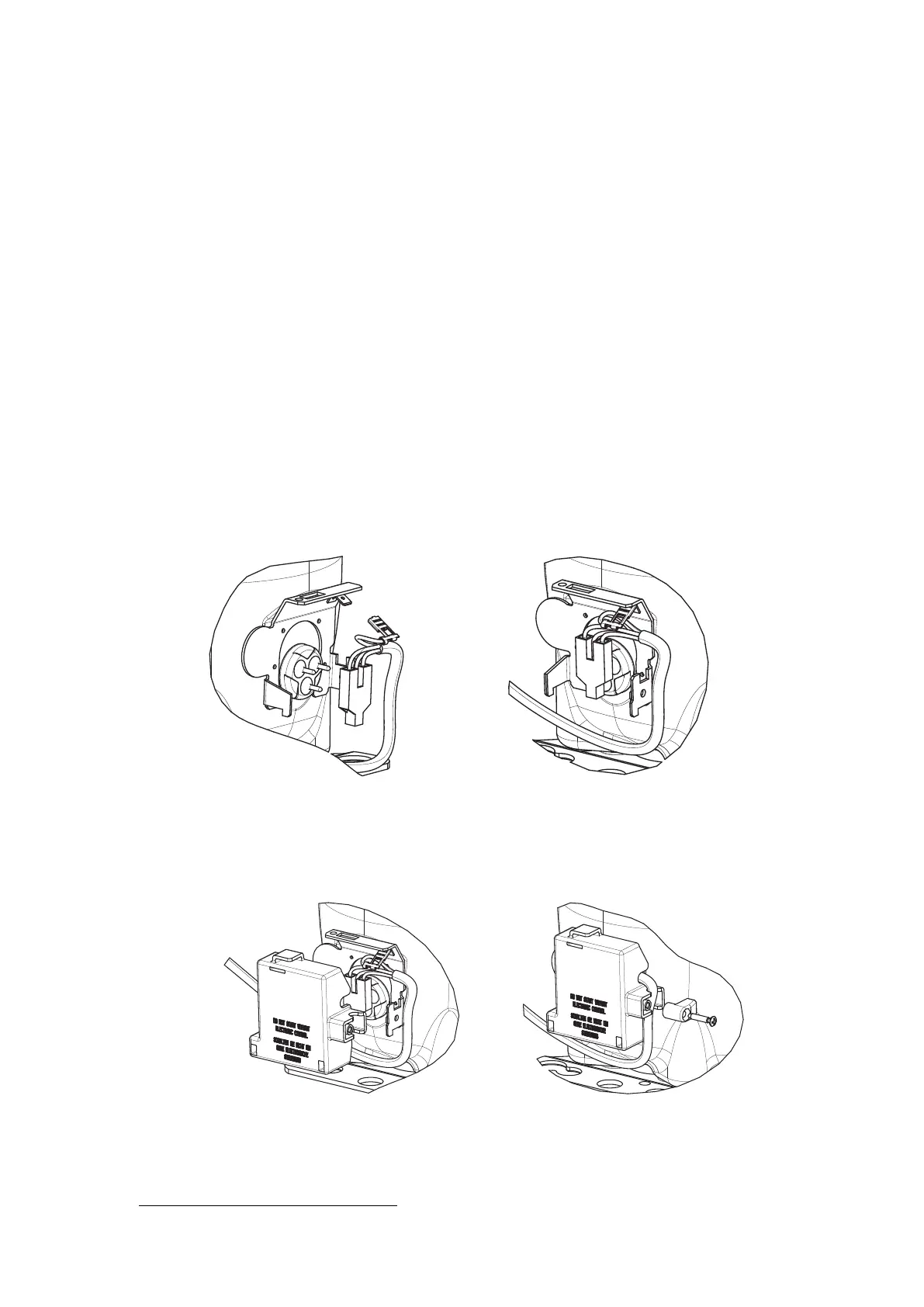

Figure 3.2: Step 1 Figure 3.3: Step 2
Aſter performing the connections, assemble the compressor fence cover as shown
in the following sequence (Step 3 and 4).
Figure 3.4: Step 3 Figure 3.5: Step 4
*
The gures displayed here are merely illustrative
