Embraco Fullmotion CF10C - Drop-In Control Mode

CHAPTER 4. OPERATION 31
VCC



CN 203 pinout:
PIN 1 – Signal from Thermostat
PIN 2 – Thermostat GND
3
2
1
VCC
Inverter RX
Inverter TX
VCC
CN 204 pinout:
PIN 1 – Signal from Thermostat
PIN 2 – Thermostat GND
PIN 3 – Signal toThermostat
Collector current
range: 1 mA to 2 mA
CN 204

1
3
2
Thermostat TX
Thermostat RX
VCC
Thermostat TX
Inverter board

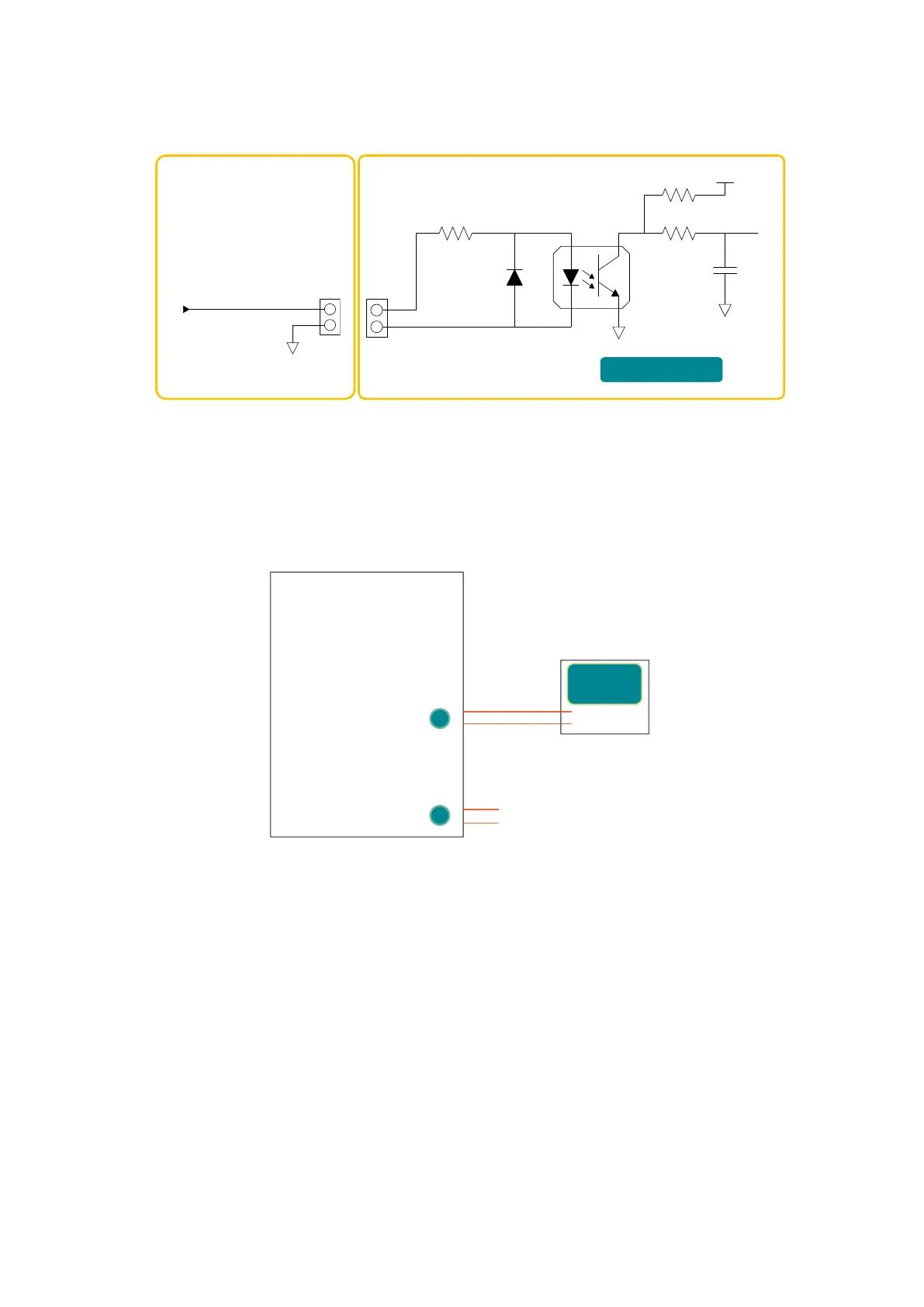

Figure 4.1: Electrical schematic of frequency communication
The following gure shows the right way to perform the Frequency Control Mode
connection according to the connectors described in Figure 2.2.
CF10C INVERTER
Eletronic
Thermostat
Neutral
Phase
4
CF10C INVERTER
2
Frequency Signal
Input (+)
Common (-)
N
L
- +
Figure 4.2: Frequency control mode connection
4.2 Drop-In control mode
The Drop-In mode is a Fullmotion CF10C Inverter control mode, where single ther-
mostat contact is used to set the compressor running conditions. Drop-In mode
allows the application to any refrigeration system with a simple ON/OFF thermo-
stat, without needing a control signal coming from an electronic thermostat. The
compressor speed will be adjusted automatically by the Inverter, in accordance to
the thermal load variation.
