CHAPTER 3. INSTALLATION 25
- the remaining terminal of customer’s AC Fan to the Neutral (or Phase).
3.1.5 Inverter cables arrangement
The input and communication cables are not provided by Embraco. Therefore, in-
verter cables must be arranged according to the following instructions.
1. Push/pull repeatedly the cover plastic ap until it detach as much as neces-
sary to pass the cables.
2. Take care to positioning the EMI earth (when applied) and Safety earth cables
with the protecting tape beneath the cord relief as shown in Figure 3.10.
3. The cables must pass through the cord relief as shown in Figure 3.11.
4. Assemble the cord relief.

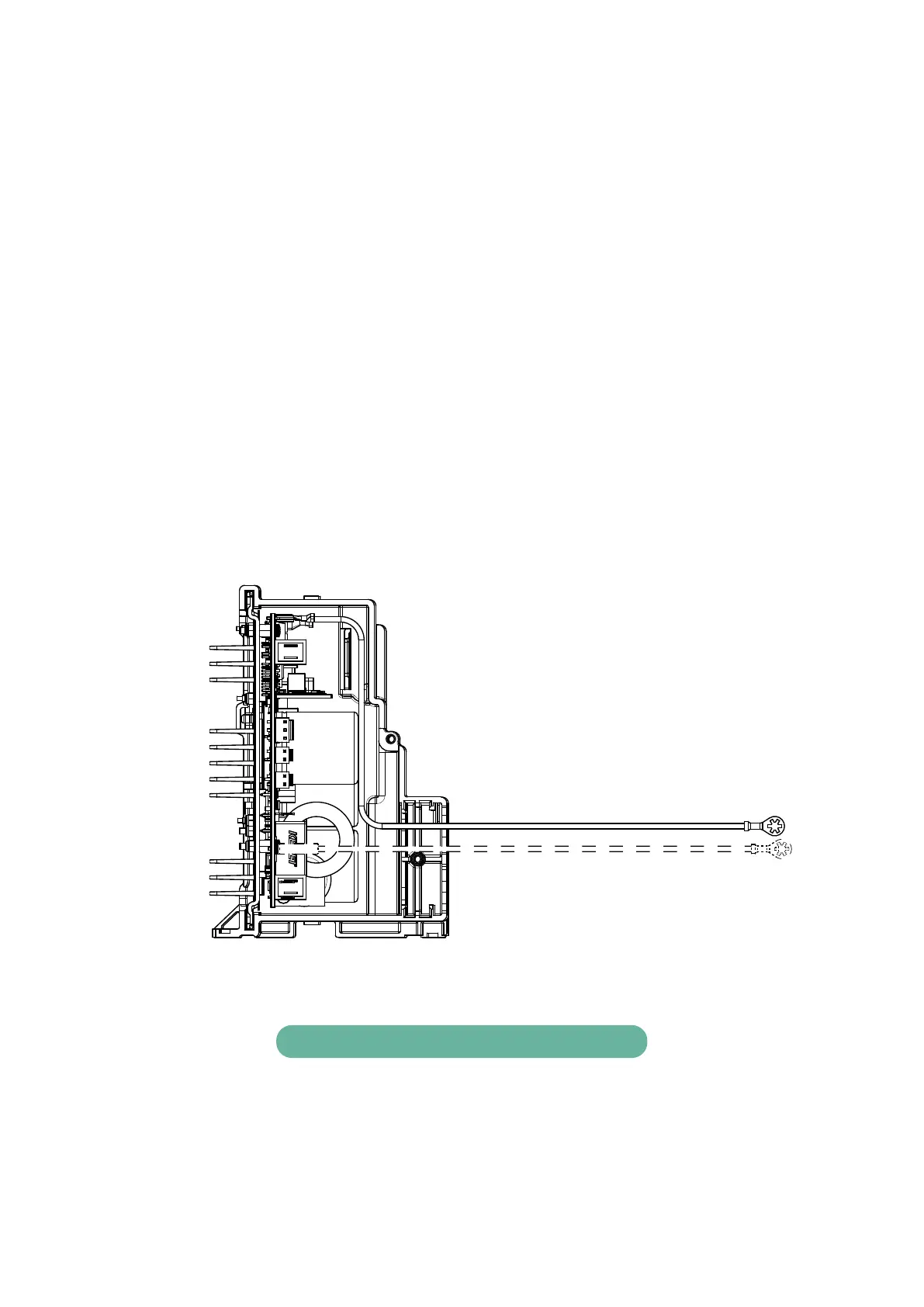

Figure 3.10: Cables arrangement
Routing Description
Indicator Description
1 AC Input Cable
2 EMI Earth Cable (optional)
3 Communication Cable
4 FAN Cable
5 Cord Relief
6 Fixing Screw
