CHAPTER 3. INSTALLATION 27
!!
WARNING
!!
NOTICE
CAUTION
!!
• On the mains terminal (L or N) use insu-
lated female FASTON terminals in order
to prevent any risk of short-circuit due to
terminals bending.
• Avoid routing cables over the cord relief,
otherwise the product may damage due to
mechanical stress.
• The screw shown in Figure 3.11 must be
xed with a torque within 0.8 - 1.2 Nm.
• Aſter concluded the routing, the plastic
cover must be reassembled, xing the
scew with a torque between 0.8 - 1.2 Nm.
!!
WARNING
!!
NOTICE
CAUTION
!!
The approval of the input supply cables specica-
tions and certications as well as the cord relief
interaction with the input cables is customer re-
sponsability.

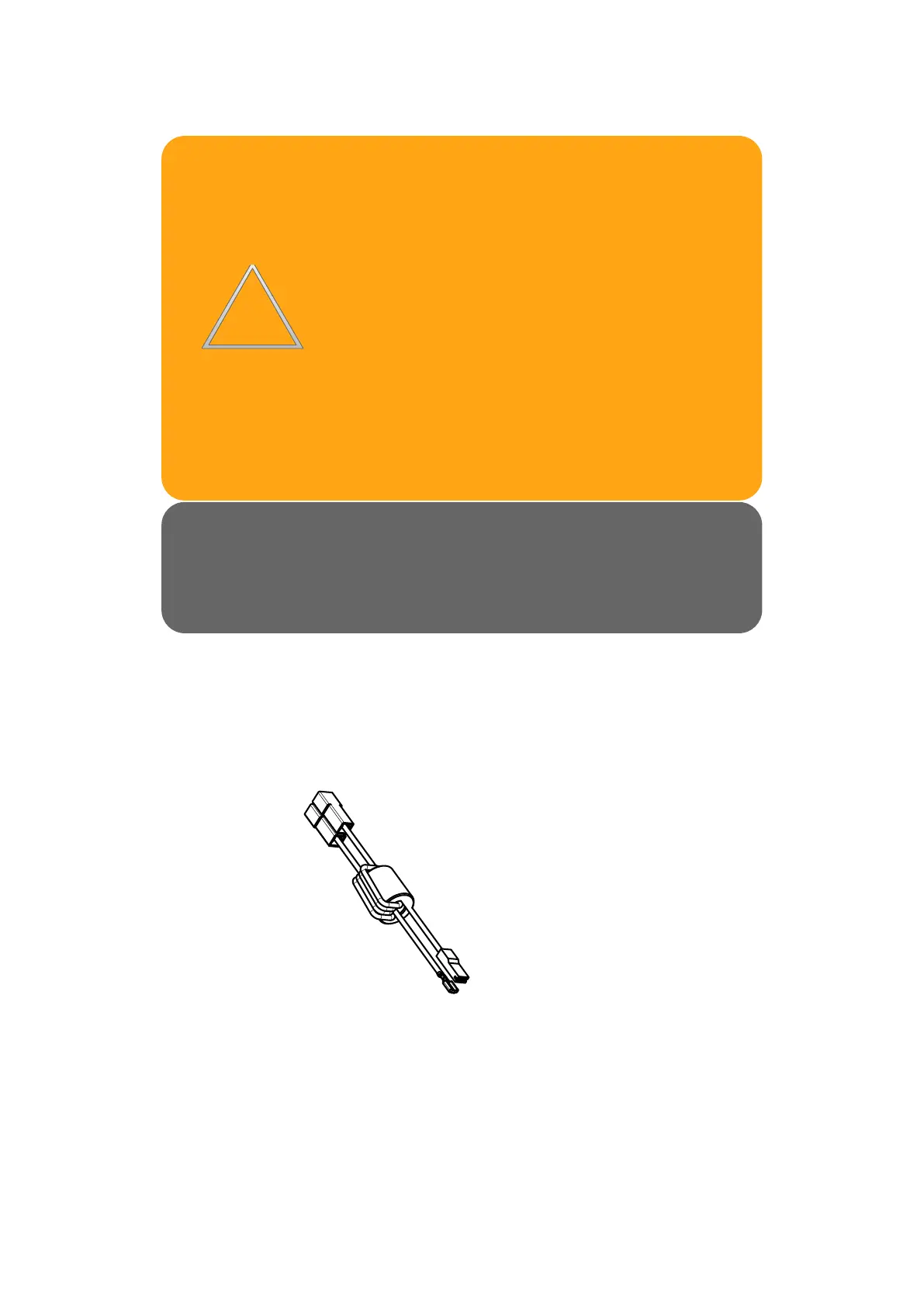

3.1.6 Input cable with ferrite lter
CF10C inverter may be supplied with an input cable with ferrite lter. The Figure
3.13 shows the input cable with ferrite lter aspect.
MATERIAL :
CODE :
NAME
UNLESS OTHERWISE STATED, ALL DIMENSIONS ARE IN mm
No.
REPLACE
DRAWN :
APP.:
ECM :
GEN. TOL. :
ANG. TOL. :
SCALE :
ECM
REVISION
LO BY
APP
DATE
123456
A
B
C
D
E
6 5 4
E
D
C
B
A
THIS MATERIAL IS CONFIDENTIAL AND PROPRIETARY TO WHIRLPOOL S/A-EMBRACO BUSINESS UNIT AND MAY NOT BE REPRODUCED, DISCLOSED, DISTRIBUTED OR USED WITHOUT PERMISSION.
-
-
SEE TABLE
2:1
-
CABLE FERRITE
IGOR A. AUGUSTIN 2017.SEP.26
NUBIA C. FERREIRA
01.930.7591
41686
7 1-521120-3 TE
HOUSING FASTON 6,3mm
1
6 - WR
HEAT SHRINK TUBE POLIOLEFIN BLACK
1
5 - WR
HEAT SHRINK TUBE POLIOLEFIN BLACK
1
4 3-180916-0 TE
HOUSING FOR FASTON TERMINAL TAB 6,3x0,8
2
3 880636-2 TE
TAB TERMINAL 6,3x0,8 (TIN PLATED BRASS)
2
2 HF70RH26X29X13 TDK FERRITE 1
1 0-1380089-1 TE TERMINAL POSITIVE LOCK 6,3mm 2
POS. COD. SUPPLIER NAME QTY
ITEM COLOR CIRCUIT
WIRE
GAUGE
CLASIFICATION
WIRE
MATERIAL
WIRE
INSULATION
THICKNESS [mm]
TEMPERATURE
RATING [°C]
VOLTAGE
RATING [V]
A BROWN PHASE
16 AWG UL 1015
TINNED
FLEXIBLE
STRANDED
ANNEALED
COPPER
0,76 105 600
B BLUE NEUTRAL
- A
ADDED DIMENSION 35±10
D4 IAA - 2017.NOV.27
- B DIAM. 6 WAS 7-8 TAB IAA - 2017.DEC.07
- C
CABLE FERRITE WAS FERRITE MAIA PFC
- IAA - 2017.DEC.08
- D
INCLUDED COMPONENT
POS.7
TAB VRM - 2017.DEC.20
3
NOTES:
1 - DRAWING ACCORDING TO ISO STANDARDS, SEE TSS 002513.
2 - DIMENSIONS AND SPECIFICATIONS SIGNED WITH , SEE TSS 002470.
3 - REQUIREMENTS ABOUT HAZARDOUS SUBSTANCES ACCORDING TO TSS 002420.
4 - HFC MANDATORY REQUIREMENTS ACCORDING TO TSS 002369.
5 - TERMINALS MUST BE IN ACCORDANCE WITH SOP009340.
6 - THE CONDUCTORS MUST NOT BE OVERLAPPED IN FERRITE WINDING.
7 - THE WINDING OF TWO CONDUCTORS SHOULD OCCUR IN THE SAME DIRECTION.
8 - THE CABLE MUST BE IDENTIFIED WITH THE SUPPLIER BATCH AND
MANUFACTURING DATE.
9 - THE PACKAGE MUST ENSURE THE INTEGRITY OF CABLE COMPONENTS:
FERRITE SHOULD BE EXEMPT OF ANY BREACH OR CRACK.
10 - FERRITE AND CABLE WRAPPED BY HEAT SHRINK TUBE.
2 TURNS
BROWN
BLUE
SEE NOTE 6 AND 7
4
1
B-B
7
2
5
6
A-A
( )29
34 MAX
440±10
205±10
35±10
10
Figure 3.13: Input cable with ferrite lter
