I/O modules
EMC VNX8000 Hardware Information Guide 55
Two-port 10-Gb/s optical or active Twinax Fibre Channel over Ethernet (FCoE) I/O module
The two-port 10-Gb/s optical or active Twinax
6
FCoE I/O module (labeled 10 GbE/FCoE on
the latch handle) comes with two FCoE ports, one power/fault LED, and a link and activity
LED for each port (Figure 41). The ports on this I/O module can interface at speeds up to
10 Gb/s for Fibre Channel over Ethernet networks. The two-port 10-Gb/s FCoE I/O module
uses the SFP+ transceiver module. For part number label location, see the
VNX8000 Parts
Location Guide
available online at https://mydocs.emc.com/VNX/ and go to Additional
VNX documentation, and select the related documentation software for the model
desired, then go to VNX Hardware Parts, next select the VNX8000 Parts Guide.

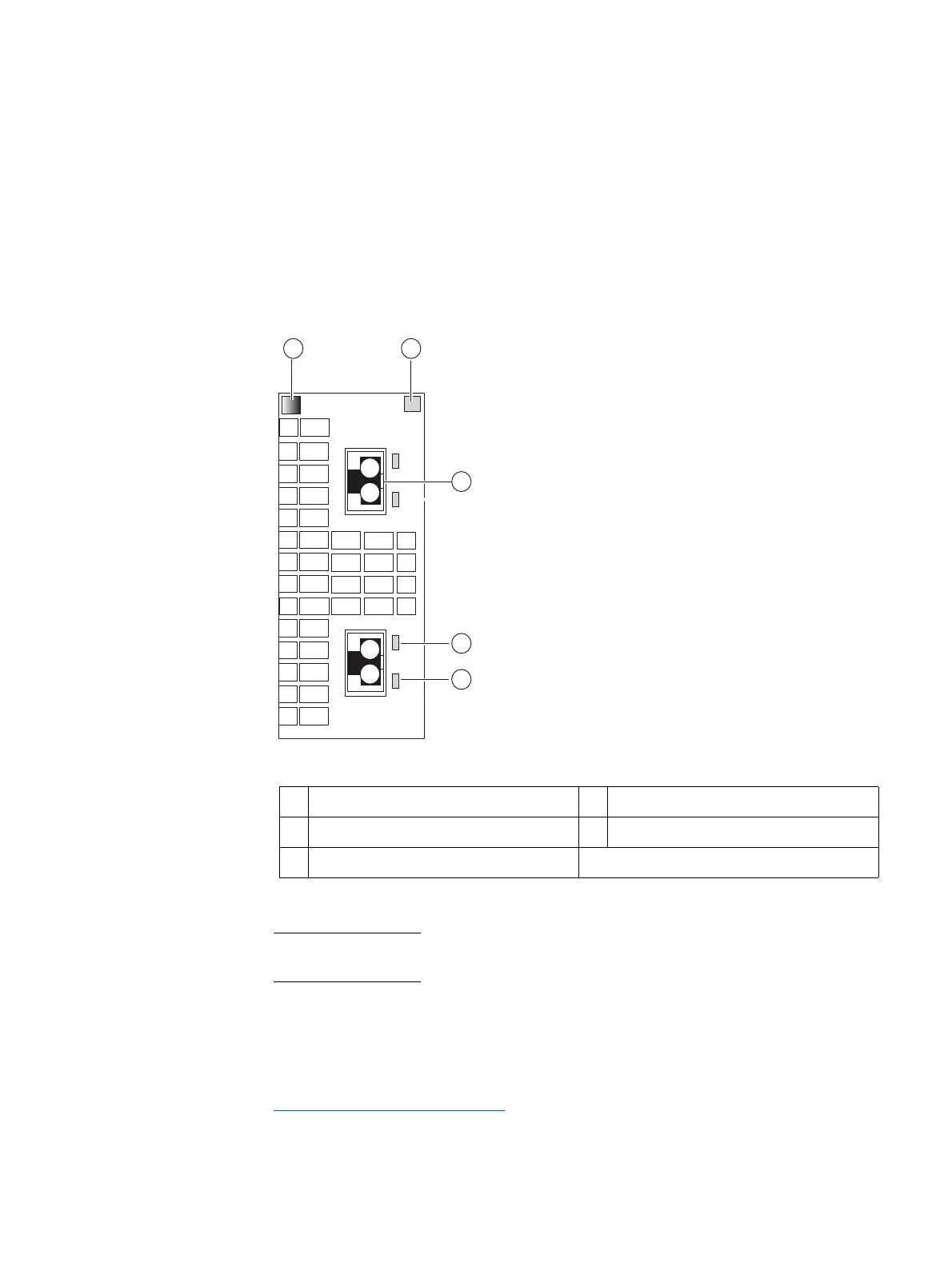

Figure 41 Two-port 10-Gb/s FCoE I/O module
Note: The 10-Gb/s FCoE I/O module uses a specific type of SFP module, ensure you are
using the correct one. Refer to the Parts Location guide for more information.
6. The FCoE I/O module can also use active twinaxial (Twinax) cables. Twinax is a type of cable
similar to coax, but with two inner conductors instead of one. These cables will be supplied in lieu
of the SFP+ transceiver module when so ordered.
1 Push button latch handle 4 SFP+ link LED (right)
2 Power/fault LED 5 SFP+ activity LED (left)
3 SFP+ (optical) port (two)
1
0
1
2
3
4
5
CNS-001756
